Sendix 5868 Sendix 5868
Sendix 5868 Sendix 5868

Encoders Absolute multiturn

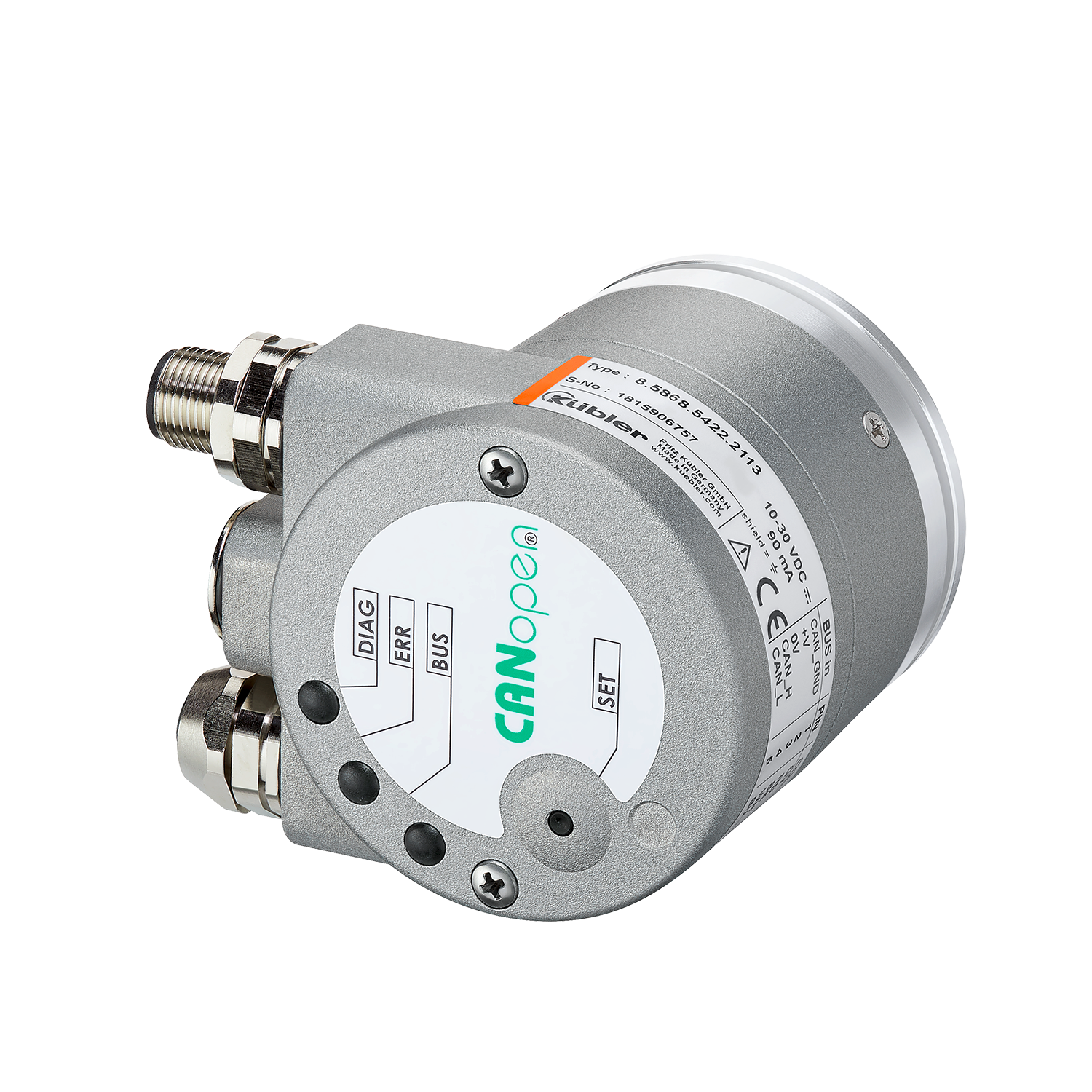

Sendix 5868

  • Particularly resistant
  • Reliable
  • Latest encoder profile
  • Dimension Ø 58 mm
  • 2.048 ppr incremental
  • 16 bits singleturn
  • 12 bits multiturn
  • Max 10 mm shaft, with flat surface
  • Max 3/8" shaft, with flat surface
CANopen
CANopen-Lift

For field bus communication: Encoders with CANopen or CANopenLift interface.

The absolute encoders Multiturn Sendix 5868 / 5888 with CANopen or CANopenLift interface and optical sensors are the right encoders for field bus applications. With a maximum resolution of 28 bits, these encoders optionally have an additional RS422 incremental track with 2048 pulses.

Mechanical
Dimension Ø 58 mm
Shaft type 6 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
3/8 " shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange
Square flange

Ø 58.00 mm
Working temperature -40 °C ... +80 °C
Protection level IP65
IP67
Connection types Radial cable
Sub-D connector
M23 connector radial
M12 connector radial
Max. rotational speed 9.000 min-1
Weight 570 g
Electrical
Scanning optical
Resolution max. 2.048 ppr incremental
16 bits singleturn
12 bits multiturn
Power supply 10...30 V DC
Interfaces CANopen
CANopen + 2048 ppr RS422
CANopen-Lift
Reliable
  • Excellent for applications such as mobile automation or medical technology.
  • With IP67 protection and wide temperature range from -40°C to +80°C also suitable for outdoor use.
Flexible
  • Node address configurable via rotary switch or software.
  • Baud rate and termination adjustable via DIP switches or software.
  • With bus hub or fixed connection and with M12 plug or cable connection
  • Universal Scaling Function.
Data sheet

Sendix 5868 / 5888 CANopen

PDF ∼ 1,4 MB | 07.2024
DE
EN
FR
Operation Manual

Operating manual for encoders with ATEX 2/22

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 3,6 MB | 05.2023

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Manual

Sendix 58xx CANLift

PDF ∼ 1,7 MB | 10.2009
DE
EN
FR

Encoder with CANopen interface

PDF ∼ 7,3 MB | 07.2024
DE
EN
Safety characteristics

Sendix 5868 MTTFd

Multilingual: German, English
PDF ∼ 157,9 KB | 06.2019

Declaration of conformity

Sendix 5868 / 5888 CE

Multilingual: German, English
PDF ∼ 387,9 KB | 04.2016

Device file

Sendix 58x8 CANLift

ZIP ∼ 47,4 KB | 10.2014

Sendix 58x8 CANopen

ZIP ∼ 63,9 KB | 02.2018

Mechanical CAD / STEP

Sendix 5868

ZIP ∼ 13,2 MB | 11.2022

Electronic CAD / ePlan

Sendix 5868 / 5888

ZIP ∼ 8,5 MB | 02.2020

Product Certificates

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Sendix 58x8 CANopen CiA Certificate

PDF ∼ 123,7 KB | 05.2024
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1102.0606
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
Bellows and spring washer couplings

Assembly bell

Assembly bell

For shaft encoders with flange ø 50 ... 58 mm
Fast encoder mounting. Electrical and thermal insulation through glass-fibre reinforced plastic and insulating spring washer coupling - complete delivery as a set.

Scope of delivery
- Mounting bell
- Spring washer coupling (8.0000.1401.XXXX)
- Mounting eccentric (8.0000.4B00.0000)
- Mounting accessories
8.0000.4500.XXYY
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0000.4500.XXXX

Adapter flange, square, 4 mm

Adapter flange, square, 4 mm

For shaft encoders with clamping flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 4 screws
58,0 mm x 4 mm 8.0010.2100.0000
63,5 mm x 3 mm 8.0010.2120.0000
70,0 mm x 10 mm 8.0010.2600.0000
80,0 mm x 4 mm 8.0010.2800.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2100.0000

Flange, Ø 115mm Euroflange

Flange, Ø 115mm Euroflange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws
Drehgeber 580x/5000 8.0010.2160.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2160.0000

Flange, Ø 58mm

Flange, Ø 58mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws
8.0010.2180.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2180.0000 Accessories flange / CAD

Flange, Ø 65mm

Flange, Ø 65mm

For shaft encoders with flange ø 50 ... 58 mm
With this flange adapter, Kübler encoders of size 58 mm can replace third-party encoders of size 65 mm.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws
8.0010.2230.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2230.0000

Flange, Ø 90mm

Flange, Ø 90mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange. Mechanically compatible with encoder type 9000.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws
8.0010.2270.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2270.0000

Angular flange

Angular flange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Angle flange (aluminium)
- 3 screws for fastening to the encoder.

Connection to the application (not included in delivery)
- 2 screws
8.0010.2300.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2300.0000

Fastening eccentrics

Fastening eccentrics

For shaft encoders with synchro flange ø 50 ... 70 mm

Scope of delivery
- 3 eccentric
- 3 screws
8.0010.4100.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.4100.0000

Bearing box

Bearing box

For shaft encoder with clamping flange ø 58 mm and shaft 10 x 20 mm
When the encoder is driven by a toothed or chain wheel, V-belt or toothed belt, impeller, etc., the permissible axial or radial shaft loads are usually exceeded during operation. For these cases, the bearing box equipped with reinforced bearings is ideally suited.

Scope of delivery
  • Bearing box with lock and O-ring
  • Coupling for shaft 10 mm
  • Adapter flange 8.0010.2100.0000
  • Mounting accessories
8.0010.8200.0004
Data sheet
Bearing box
DE EN FR

Robust bearing unit

Robust bearing unit

For shaft encoders with clamping flange ø 50 ... 58 mm and shaft 10 mm
The separation of the bearing load and the sensor system provides the encoder with additional protection in harsh environments.

Scope of delivery
  • Robust bearing unit
  • 3 x cheese head screw M4x25 (SW3)
  • 1 x O-ring
8.0010.8200.000C
Data sheet
Robust bearing unit
DE EN FR
Installation manual
Robust bearing unit

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6021.E211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A311.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, end open, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SAE J1939
Modbus
IO-Link
Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A411.XXXM

Data sheet
M12 cordset, PVC, male, 5-pin, A-coded, end open, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A4A2.XXXM

Data sheet
M12 cable set, PVC, socket, 5-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A511.XXXM

Data sheet
M12 cordset, PVC, male, angled, 5-pin, A-coded, open end, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A5A3.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, male, angled, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin Ø 5,6 mm ± 0,2 mm
5 x 0,34 mm2
05.00.60F1.A2A4.0xxM

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.BS-8251-0/9

Data sheet
M12 pin, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,  T-Connector

M12 Connector , T-Connector

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.FKM5-FKM5-FSM5

Mechanical CAD / STEP
05-WAKS5-WAKS5-WASS5
Data sheet
M12 T-distributor, 5-pole
DE EN FR

M12 Connector , Abschlusswiederstand

M12 Connector , Abschlusswiederstand

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.RSE 57 TR2

Data sheet
M12 pin, terminating resistor, CANopen
DE EN FR

M12 Connector ,  T-Connector

M12 Connector , T-Connector

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.WAKS5-WAKS5-WASS5

Data sheet
M12 T-distributor shielded, 5-pole
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
IO-Link
Power supply
Female connector 5-pin
8.0000.5116.0000.Ex

Data sheet
M12 socket, Ex 2/22, 5-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 5-pin, A-coded
DE EN FR

M12 Connector , Connectors

M12 Connector , Connectors

Field-wireable connector

Power supply
Female connector 4-pin
8.0000.5202.0000

Data sheet
M12 socket, 4-pin, S-coded
DE EN FR

„Do you have technical questions about Kübler encoders or are you looking for individual solutions? We at Application Support are here for you.“

Rainer Grueninger
Application support
Rainer Grueninger
Application Engineer

support@kuebler.com
+49 7720 3903 849

„We will be pleased to give you information about prices and delivery times. We are looking forward to your inquiry.“

Fritz Kübler GmbH
Sales
Fritz Kübler GmbH
Sales Germany

info@kuebler.com
+49 7720 3903 871
+49 7720 21564
