Encoders Incremental

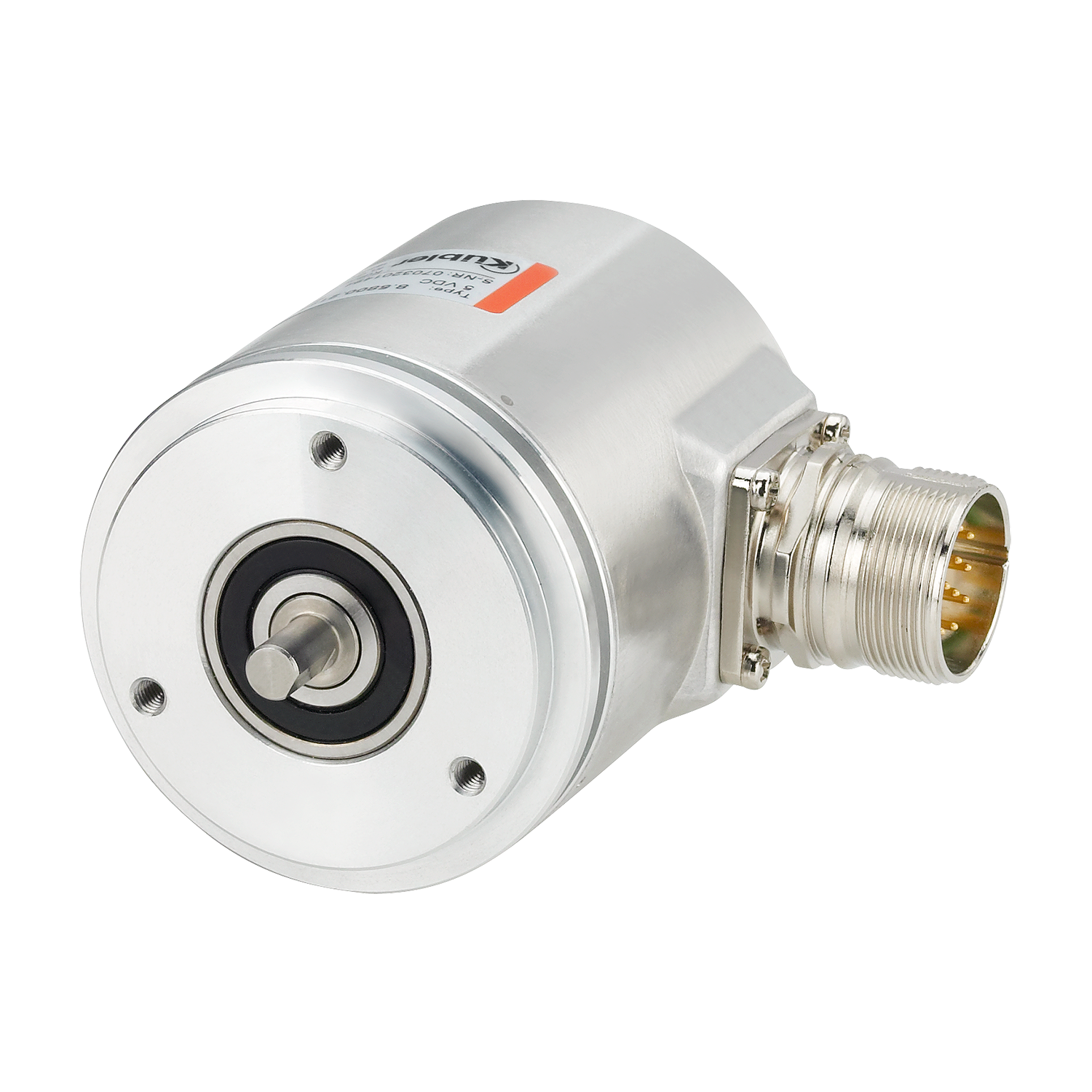

5804
|
|
Sine output with reference signal – for drive technology.
The incremental encoders 5804 / 5824 have a SinCos interface. They are particularly suitable for use in drive technology.
These encoders are preferably used in applications where a standard SinCos interface is sufficient.
| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm shaft, with flat surface 10 mm shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 58.00 mm |
| Working temperature | -20 °C ... +85 °C |
| Protection level |
IP64 |
| Connection types |
Axial cable Radial cable M23 connector axial M23 connector radial |
| Max. rotational speed |
12.000 min-1 |
| Weight | 400 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
5.000 ppr incremental |
| Power supply |
5 V DC 10...30 V DC |
| Interfaces |
SinCos |
| Options | |
|---|---|
| on request |
|
High performance
- High resolution up to 5000 pulses per revolution.
- Maximum speed up to 12000 revolutions per minute.
- High IP protection up to max. IP66.
- Shaft and hollow shaft variants.
- With cable or plug connection.
Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
| 8.0000.1102.0606 |
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
| 8.0000.1202.XXXX |
Assembly bell
For shaft encoders with flange ø 50 ... 58 mmFast encoder mounting. Electrical and thermal insulation through glass-fibre reinforced plastic and insulating spring washer coupling - complete delivery as a set.
Scope of delivery
- Mounting bell
- Spring washer coupling (8.0000.1401.XXXX)
- Mounting eccentric (8.0000.4B00.0000)
- Mounting accessories
| 8.0000.4500.XXYY |
Adapter flange, square, 4 mm
For shaft encoders with clamping flange ø 50 ... 58 mmScope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 4 screws
| 58,0 mm x 4 mm | 8.0010.2100.0000 |
| 63,5 mm x 3 mm | 8.0010.2120.0000 |
| 70,0 mm x 10 mm | 8.0010.2600.0000 |
| 80,0 mm x 4 mm | 8.0010.2800.0000 |
Flange, Ø 115mm Euroflange
For shaft encoders with flange ø 50 ... 58 mmScope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder
Connection to the application (not included in delivery)
- 6 screws
| Drehgeber 580x/5000 | 8.0010.2160.0000 |
Flange, Ø 58mm
For shaft encoders with flange ø 50 ... 58 mmAdapter for converting a clamping flange into a synchro flange.
Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 3 screws
| 8.0010.2180.0000 |
Flange, Ø 65mm
For shaft encoders with flange ø 50 ... 58 mmWith this flange adapter, Kübler encoders of size 58 mm can replace third-party encoders of size 65 mm.
Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 3 screws
| 8.0010.2230.0000 |
Flange, Ø 90mm
For shaft encoders with flange ø 50 ... 58 mmAdapter for converting a clamping flange into a synchro flange. Mechanically compatible with encoder type 9000.
Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder
Connection to the application (not included in delivery)
- 6 screws
| 8.0010.2270.0000 |
Angular flange
For shaft encoders with flange ø 50 ... 58 mmScope of delivery
- Angle flange (aluminium)
- 3 screws for fastening to the encoder.
Connection to the application (not included in delivery)
- 2 screws
| 8.0010.2300.0000 |
Bearing box
For shaft encoder with clamping flange ø 58 mm and shaft 10 x 20 mmWhen the encoder is driven by a toothed or chain wheel, V-belt or toothed belt, impeller, etc., the permissible axial or radial shaft loads are usually exceeded during operation. For these cases, the bearing box equipped with reinforced bearings is ideally suited.
Scope of delivery
- Bearing box with lock and O-ring
- Coupling for shaft 10 mm
- Adapter flange 8.0010.2100.0000
- Mounting accessories
| 8.0010.8200.0004 |
Robust bearing unit
For shaft encoders with clamping flange ø 50 ... 58 mm and shaft 10 mmThe separation of the bearing load and the sensor system provides the encoder with additional protection in harsh environments.
Scope of delivery
- Robust bearing unit
- 3 x cheese head screw M4x25 (SW3)
- 1 x O-ring
| 8.0010.8200.000C |
