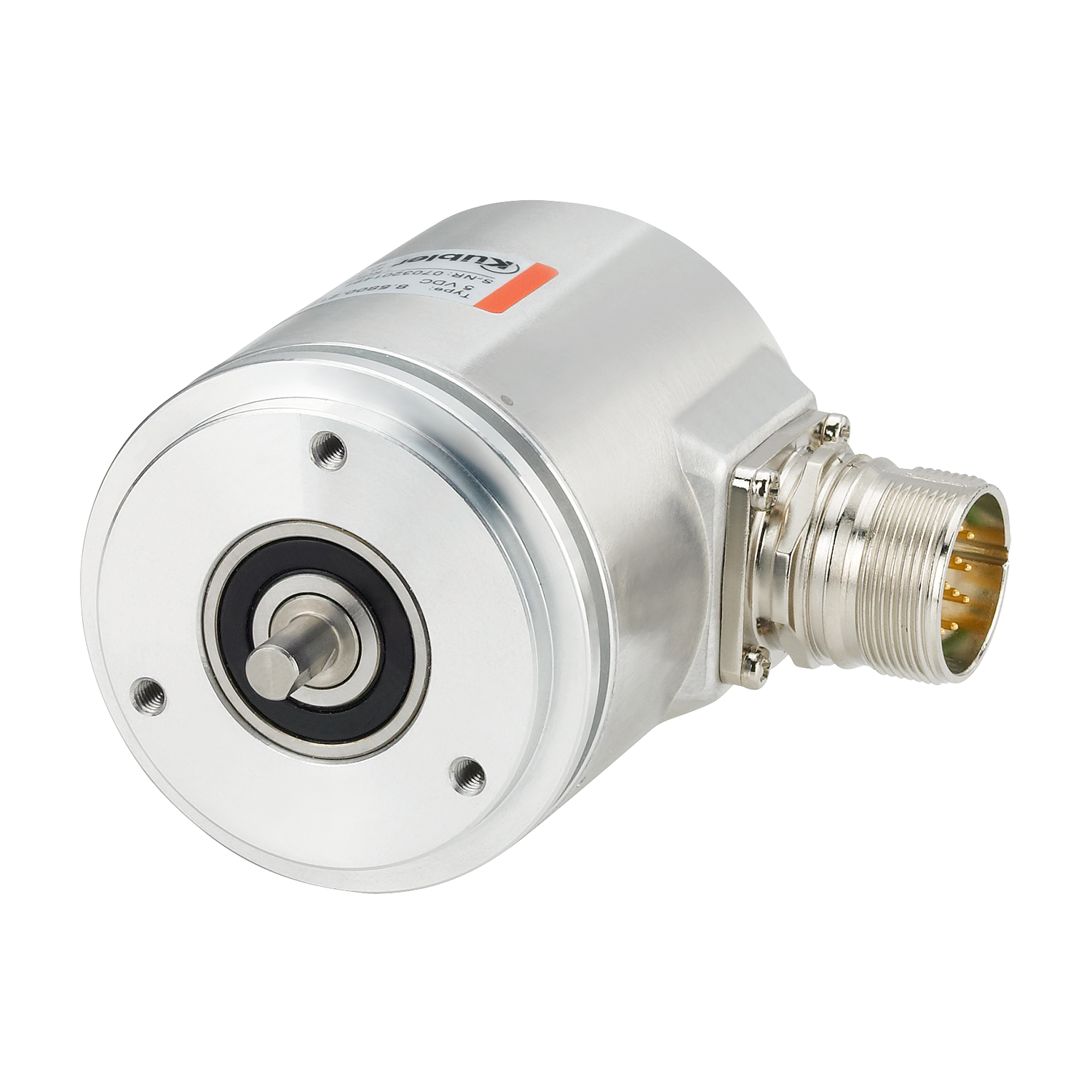

Encoders Incremental

5803

  • Heat resistant
  • High speed
  • Reliable
  • Dimension Ø 58 mm
  • 5.000 ppr incremental
  • Max 10 mm shaft, with flat surface
  • Max 3/8" shaft, with flat surface
Push-pull
TTL / RS422

High temperature up to max. 110°C

The incremental encoders of the high temperature series 5803 / 5823 can be used up to max. 110°C. The high heat resistance and high speed make these encoders the ideal solution for all applications in an environment of very high temperatures.

Mechanical
Dimension Ø 58 mm
Shaft type 6 mm shaft, with flat surface
10 mm shaft, with flat surface
3/8 " shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange
Square flange

Ø 58.00 mm
Ø 63.50 mm
❏ 63,50 mm
Working temperature -20 °C ... +110 °C
Protection level IP65
Connection types Axial cable
Radial cable
M23 connector axial
M23 connector radial
MIL connector
Max. rotational speed 12.000 min-1
Weight 400 g
Electrical
Scanning optical
Resolution max. 5.000 ppr incremental
Power supply 5 V DC
10...30 V DC
Interfaces Gegentakt
TTL / RS422
Options
on request
  • Further impulse counters/resolutions
Powerful
  • Suitable for temperatures up to max. 110°C.
  • High resolution with up to 5000 pulses per revolution.
  • Maximum speed of 12000 revolutions per minute.
Flexible
  • Different connection types for different applications.
  • Shaft and hollow shaft variants
  • With push-pull or RS422 interface.
Data sheet

5803 / 5823

PDF ∼ 949,3 KB | 09.2022
DE
EN
FR
Operation Manual

General operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Safety characteristics

5803 MTTFd

Multilingual: German, English
PDF ∼ 222,4 KB | 09.2022

Declaration of conformity

5803 / 5823 CE

Multilingual: German, English, French
PDF ∼ 354,8 KB | 09.2022

Mechanical CAD / STEP

5803

ZIP ∼ 716,8 KB | 09.2022

Electronic CAD / ePlan

5803 / 5823

ZIP ∼ 3,6 MB | 09.2022

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 09.2022
EN

Encoder UL USA

PDF ∼ 78,2 KB | 09.2022
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1202.XXXX
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
8.0000.1202.XXXX

Assembly bell

Assembly bell

For shaft encoders with flange ø 50 ... 58 mm
Fast encoder mounting. Electrical and thermal insulation through glass-fibre reinforced plastic and insulating spring washer coupling - complete delivery as a set.

Scope of delivery
- Mounting bell
- Spring washer coupling (8.0000.1401.XXXX)
- Mounting eccentric (8.0000.4B00.0000)
- Mounting accessories
8.0000.4500.XXYY
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0000.4500.XXXX

Adapter flange, square, 4 mm

Adapter flange, square, 4 mm

For shaft encoders with clamping flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 4 screws
58,0 mm x 4 mm 8.0010.2100.0000
63,5 mm x 3 mm 8.0010.2120.0000
70,0 mm x 10 mm 8.0010.2600.0000
80,0 mm x 4 mm 8.0010.2800.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2100.0000

Flange, Ø 115mm Euroflange

Flange, Ø 115mm Euroflange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws
Drehgeber 580x/5000 8.0010.2160.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2160.0000

Flange, Ø 58mm

Flange, Ø 58mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws
8.0010.2180.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2180.0000 Accessories flange / CAD

Flange, Ø 65mm

Flange, Ø 65mm

For shaft encoders with flange ø 50 ... 58 mm
With this flange adapter, Kübler encoders of size 58 mm can replace third-party encoders of size 65 mm.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws
8.0010.2230.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2230.0000

Flange, Ø 90mm

Flange, Ø 90mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange. Mechanically compatible with encoder type 9000.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws
8.0010.2270.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2270.0000

Angular flange

Angular flange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Angle flange (aluminium)
- 3 screws for fastening to the encoder.

Connection to the application (not included in delivery)
- 2 screws
8.0010.2300.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.2300.0000

Fastening eccentrics

Fastening eccentrics

For shaft encoders with synchro flange ø 50 ... 70 mm

Scope of delivery
- 3 eccentric
- 3 screws
8.0010.4100.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.4100.0000

Bearing box

Bearing box

For shaft encoder with clamping flange ø 58 mm and shaft 10 x 20 mm
When the encoder is driven by a toothed or chain wheel, V-belt or toothed belt, impeller, etc., the permissible axial or radial shaft loads are usually exceeded during operation. For these cases, the bearing box equipped with reinforced bearings is ideally suited.

Scope of delivery
  • Bearing box with lock and O-ring
  • Coupling for shaft 10 mm
  • Adapter flange 8.0010.2100.0000
  • Mounting accessories
8.0010.8200.0004
Data sheet
Bearing box
DE EN FR

Robust bearing unit

Robust bearing unit

For shaft encoders with clamping flange ø 50 ... 58 mm and shaft 10 mm
The separation of the bearing load and the sensor system provides the encoder with additional protection in harsh environments.

Scope of delivery
  • Robust bearing unit
  • 3 x cheese head screw M4x25 (SW3)
  • 1 x O-ring
8.0010.8200.000C
Data sheet
Robust bearing unit
DE EN FR
Installation manual
Robust bearing unit

Cables and connectors

M23 Connector ,

M23 Connector ,

Field-wireable connector

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin
8.0000.5012.0000

Data sheet
M23 connector, socket, 12-pin, counting direction cw
DE EN FR

M23 Connector ,

M23 Connector ,

Field-wireable connector

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin
8.0000.5017.0000

Data sheet
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 6,9 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6101.XXXX

Data sheet
M23 cable set, PUR, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 6,7 mm ± 0,3 mm
12 x 0,14 mm2
8.0000.6201.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6901.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin

Male connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6905.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw + pin, counting direction ccw
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin TPE Ø 8,5 mm ± 0,9 mm
5 x 2 x0,14 mm2
8.0000.6E01.XXXX

Data sheet
M23 Cordset, PE-X, female, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J01.00xx.0043

Data sheet
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J01.00XX.0051

Data sheet
M23 cable set, PUR, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
HTL
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J07.00xx.0043

Data sheet
DE EN FR
