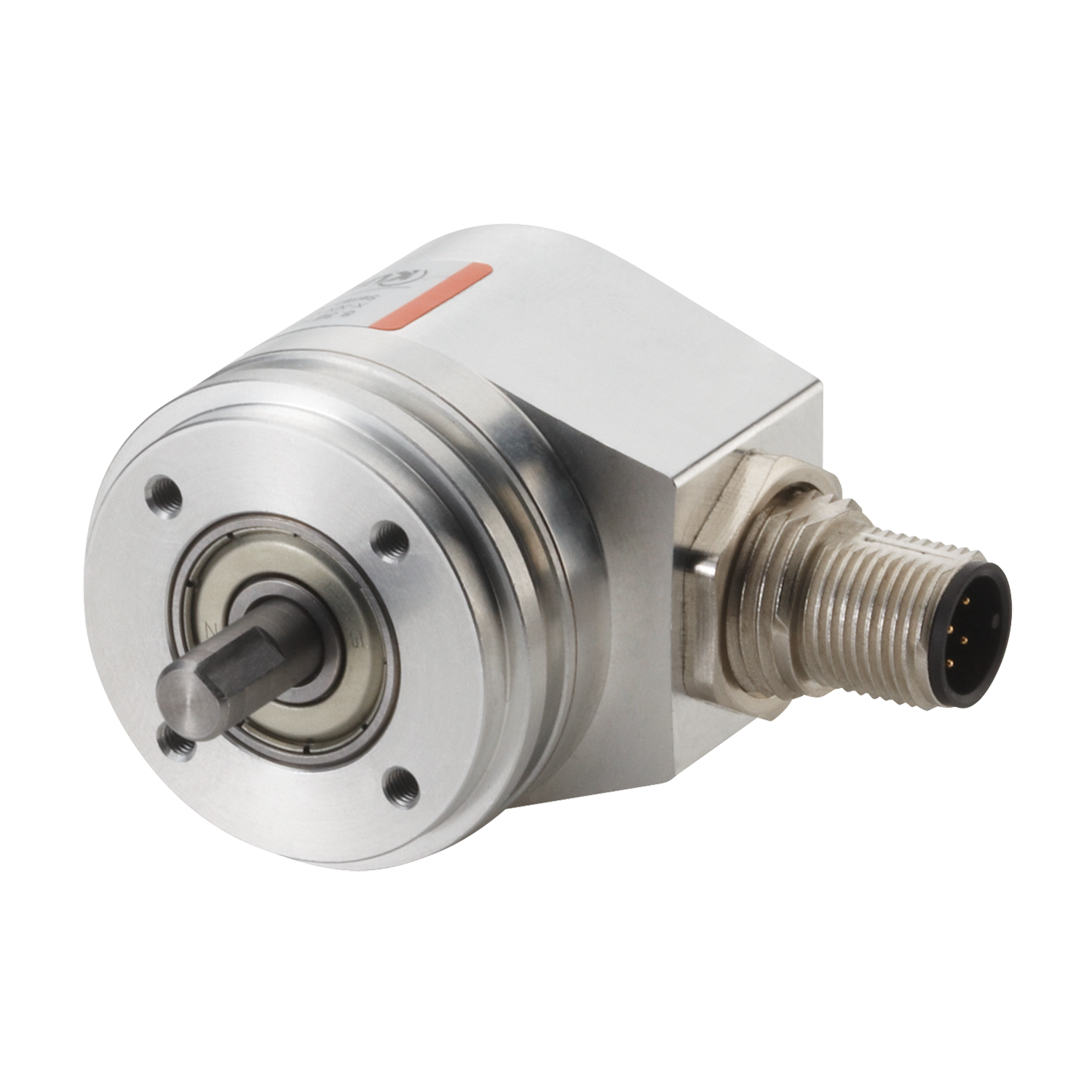

Encoders Incremental

3610

  • Compact solution
  • Versatile
  • Dimension Ø 36 mm
  • 2.500 ppr incremental
  • Max 5 mm shaft, round
  • Max 6 mm shaft, with flat surface
  • Max 1/4" shaft, with flat surface
Push-pull
TTL / RS422

Suitable for tight installation spaces.

The incremental compact encoders 3610 / 3620 with optical sensors are available up to a resolution of 2500 pulses per revolution.
The versions with through hollow shaft are designed for diameters up to 8 mm.

Mechanical
Dimension Ø 36 mm
Shaft type 4 mm shaft, round
5 mm shaft, round
6 mm shaft, with flat surface
1/4 " shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange

Ø 36.00 mm
Ø 36.50 mm
Working temperature -20 °C ... +85 °C
Protection level IP50
IP64
IP65
Connection types Axial cable
Radial cable
M12 connector axial
M12 connector radial
Max. rotational speed 12.000 min-1
Weight 80 g
Electrical
Scanning optical
Resolution max. 2.500 ppr incremental
Power supply 5 V DC
5...18 V DC
8...30 V DC
Interfaces Gegentakt
TTL / RS422
Options
on request
  • Further impulse counters/resolutions
Compact
  • Only 36 mm outside diameter.
  • Continuous hollow shaft up to 8 mm.
  • Ideally suited for limited installation space.
Versatile
  • Available with cable outlet or M12 plug.
  • Maximum resolution 2500 pulses per revolution.
  • Supply voltage 5 to 18 V DC or 8 to 30 V DC.
Data sheet

3610 / 3620

PDF ∼ 1,1 MB | 09.2022
DE
EN
FR
Operation Manual

General operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Safety characteristics

3610 MTTFd

Multilingual: German, English
PDF ∼ 214,5 KB | 09.2022

Declaration of conformity

3610 / 3620 CE

Multilingual: German, English, French
PDF ∼ 349,2 KB | 09.2022

Mechanical CAD / STEP

3610

ZIP ∼ 222,1 KB | 09.2022

Electronic CAD / ePlan

3610 / 3620

ZIP ∼ 3,4 MB | 09.2022

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 09.2022
EN

Encoder UL USA

PDF ∼ 78,2 KB | 09.2022
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1102.XXXX
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
Bellows and spring washer couplings

Fastening eccentrics

Fastening eccentrics

For shaft encoders with synchro flange ø 36 mm

Scope of delivery
- 3 eccentric
- 3 screws
8.0010.4200.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.4200.0000

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8211.XXXM

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8311.XXXM

Data sheet
M12 cordset, PVC, female 8-pin, A-coded, angled, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable , 05.00.6051.8284.XXXM

M12 Connector with cable , 05.00.6051.8284.XXXM

Preassembled cable set

Analog ±10 V
TTL / RS422
Open Collector
SSI
BiSS
HTL
Female connector 8-pin

Male connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8284.XXXM

Data sheet
M12 cordset, PUR, socket 8-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
SSI
BiSS
HTL
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8311.XXXM

Data sheet
M12 cordset, PUR, socket, angled, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.F211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SSI, binary
BiSS
Female connector 12-pin PUR Ø 7,5 mm ± mm
6 x 2 x 0,14 mm2
05.00.60B1.B211.XXXM

Data sheet
M12 cordset, PUR, socket, 12-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PUR Ø 6,2 mm ± 0,2 mm
4 x 2 x 0,25 mm2
05.00.60E1.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin
05.CMB 8181-0

Data sheet
M12 socket, 8-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin PVC Ø 7,2 mm ± 0,2 mm
8 x 0,205 mm2
05.E-WKC 8T-PX3-930-XXXX

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, angled, with integrated control LEDs, open end
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin
8.0000.5136.0000.Ex

Data sheet
M12 socket, Ex 1/21 + Ex 2/22, 8-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

Analog ±10 V
TTL / RS422
SinCos
Open Collector
SSI
BiSS
HTL
Female connector 8-pin
8.0000.5136.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 8-pin, A-coded
DE EN FR
