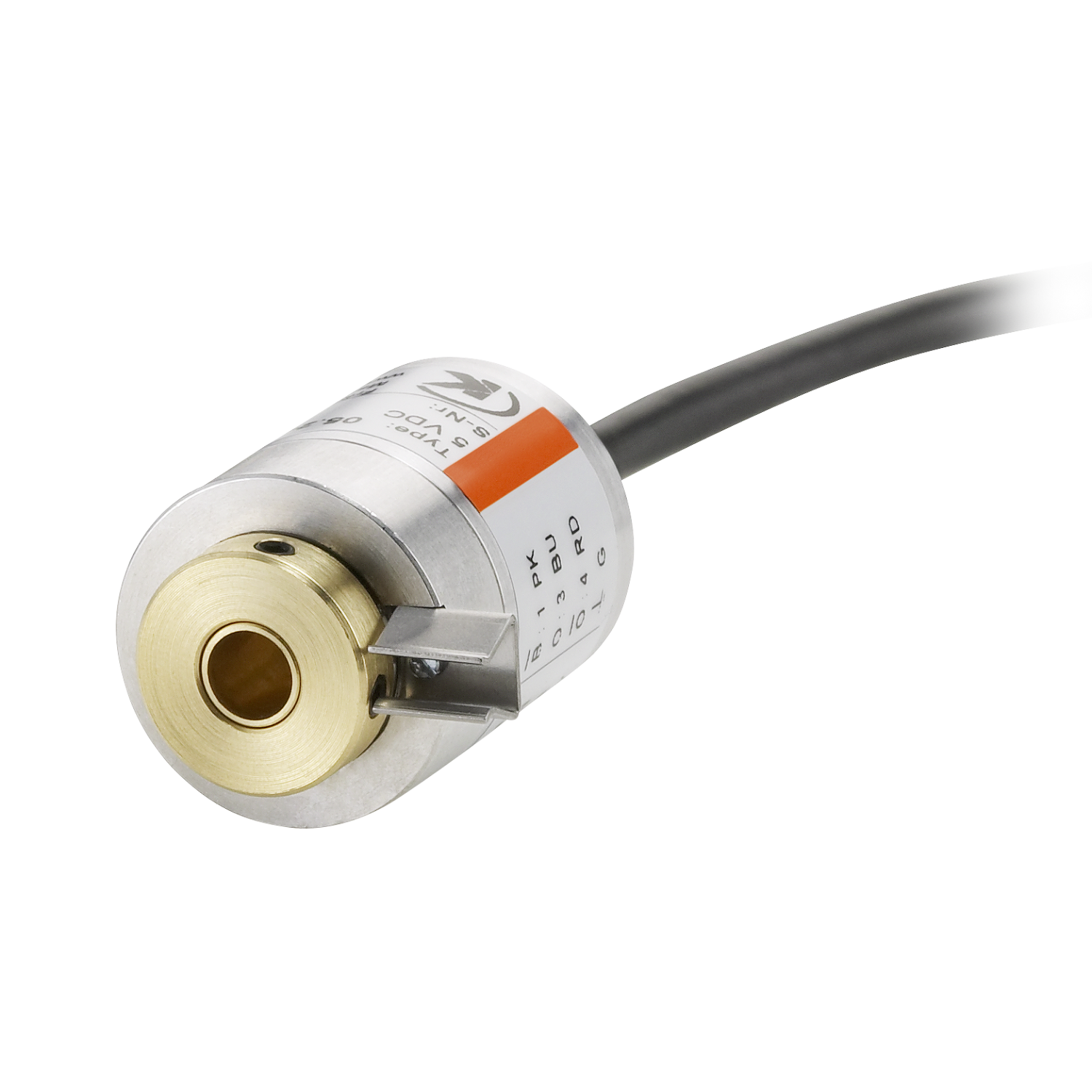

Encoders Incremental

2440

  • Magnetic – robust
  • Ideal for small devices
  • Robust bearing structure
  • Dimension Ø 24 mm
  • 256 ppr incremental
  • Max 6 mm hollow shaft, blind hole
TTL / RS422

Ideal for the tightest installation spaces: Magnetic miniature encoders.

Thanks to their contactless magnetic scanning technology, the 2430 / 2440 miniature encoders guarantee exceptional robustness - and this with a resolution of up to 256 pulses. With a diameter of only 24 mm, these encoders are particularly suitable for use in confined spaces.

Mechanical
Dimension Ø 24 mm
Shaft type 4 mm hollow shaft, blind hole
6 mm hollow shaft, blind hole
Flange type Ø 24.00 mm
Working temperature -20 °C ... +85 °C
Protection level IP50
IP65
IP67
Connection types Axial cable
Radial cable
Max. rotational speed 12.000 min-1
Weight 60 g
Electrical
Scanning magnetic
Resolution max. 256 ppr incremental
Supply voltage 5 V DC
Interfaces TTL / RS422
Options
on request
  • Further impulse counters/resolutions
Magnetic and robust
  • The contactless magnetic technology prevents wear and guarantees a long service life.
  • Multiple clamping gives the cable outlet a high strain relief and lasts longer.
  • The wide temperature range extends from -20 °C to +85 °C.
  • Flexible connection options: Available with radial or axial cable outlet.
Compact power
  • Resolution up to 256 pulses.
  • Shaft and hollow shaft variants
Data sheet

2430 / 2440 Incremental

PDF ∼ 666,3 KB | 08.2019
DE
EN
FR
Operation Manual

General operating instructions

Multilingual: German, English, French
PDF ∼ 2,7 MB | 03.2021

Declaration of conformity

2430 / 2440

Multilingual: German, English, French
PDF ∼ 356,9 KB | 04.2016

mechanical CAD / STEP

2440

ZIP ∼ 225,4 KB | 12.2014

electronic CAD / ePlan

2430 / 2440

ZIP ∼ 2,2 MB | 02.2020
