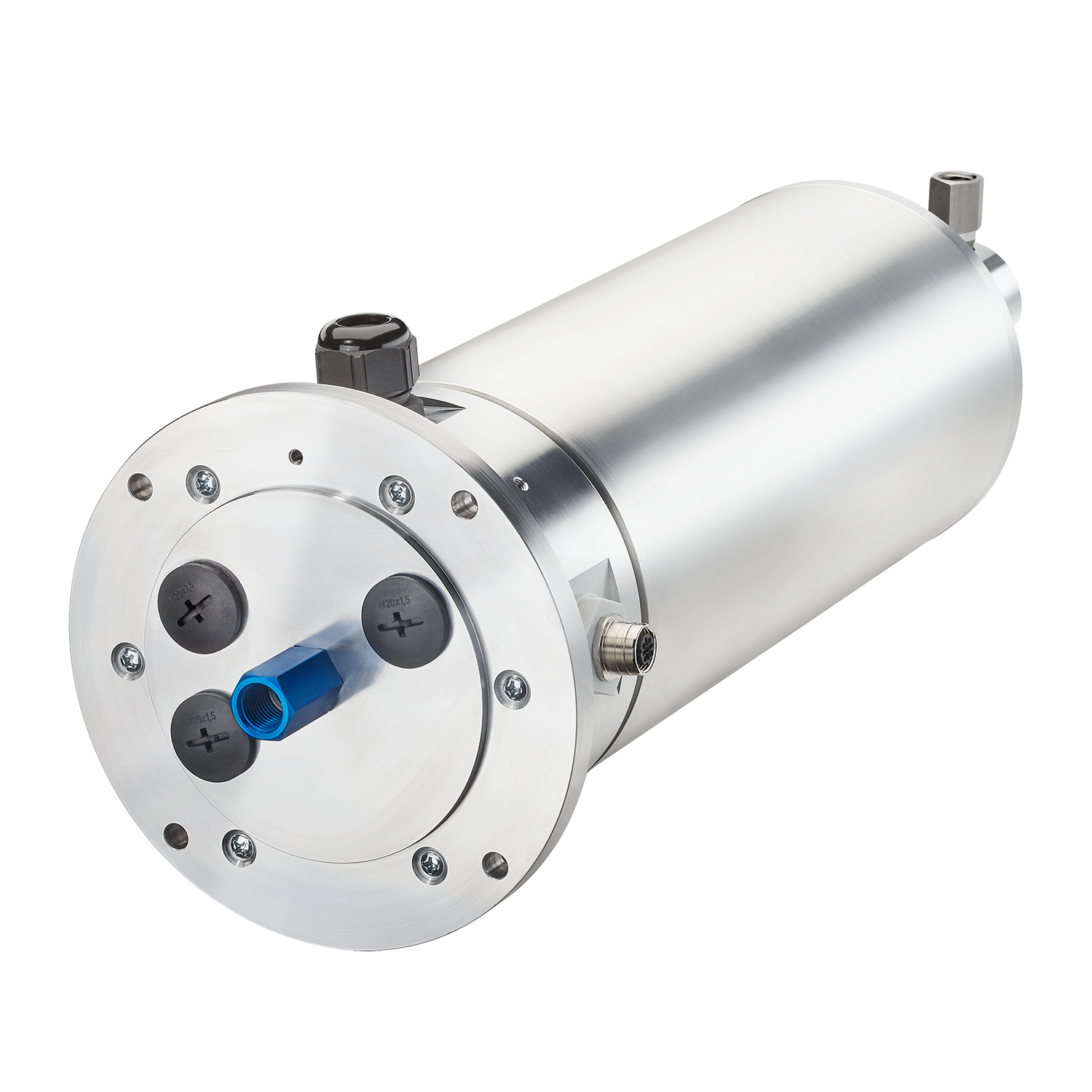

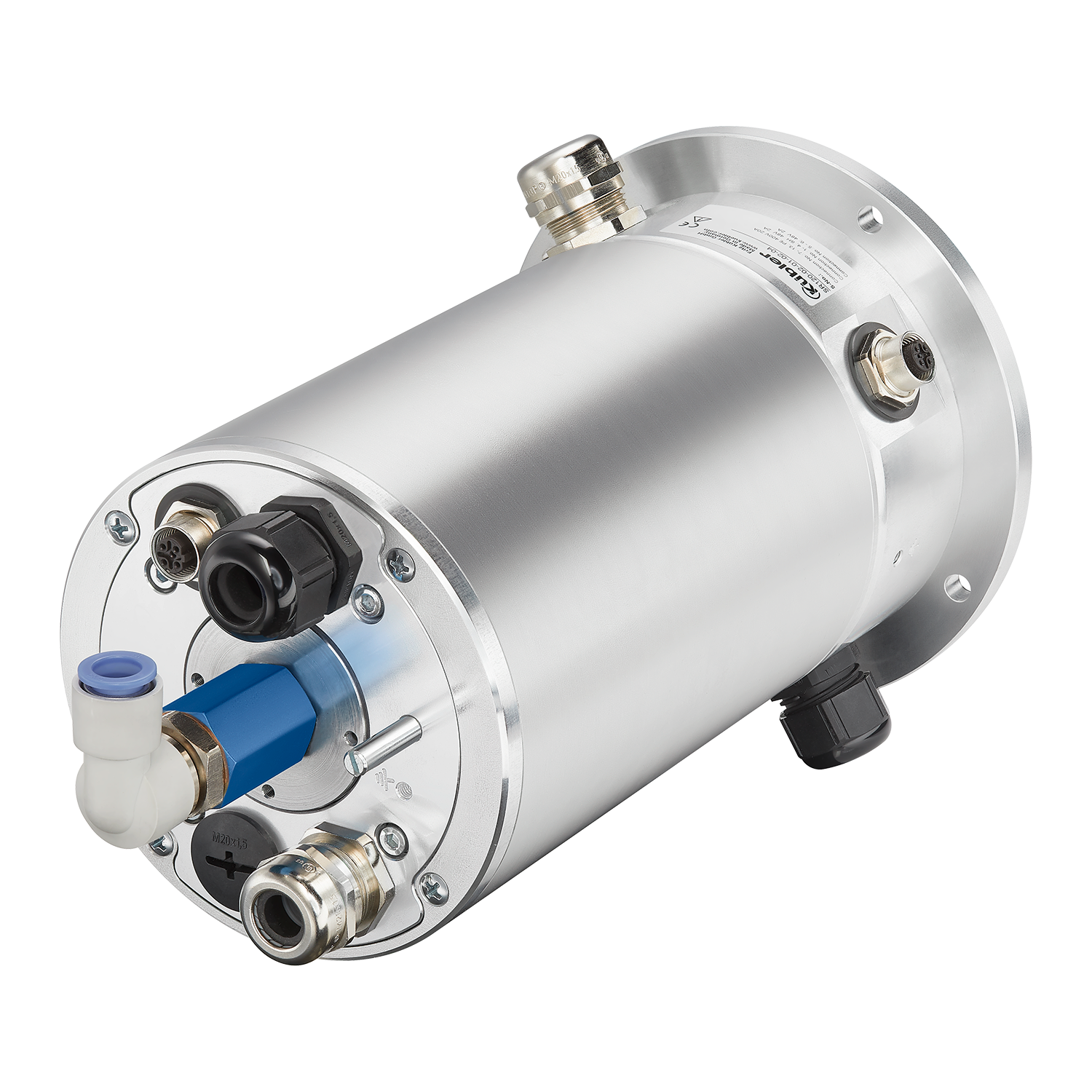

Slip ring

SR120

  • Reliable transmission of field bus and Ethernet
  • Adaptable
  • Long service life

Transmission of field bus and Ethernet: Slip ring for industrial automation.

In general slip rings are used to transmit power, signals or data, pneumatic and hydraulic, from a stationary to a rotating platform.
The transmission between the stator and rotor takes place via sliding contacts and is extremely reliable.
The slip ring SR120 is ideal for applications requiring high transmission rates. The three chamber system allows parallel transmission of signals, load and data up to 100 Mbit/s.

Mechanical
Dimension 120 mm
Mounting type Flange
Protection level IP64
Rotational speed 300 min-1
Maintenance cycles 100 million revolutions
Electrical
Load current transmission 16 A, 240 V AC
10 A, 400 V AC/DC
20 A, 400 V AC/DC
25 A, 240 V AC/DC
Robust
  • Reliable in harsh environments.
  • Robust metal housing.
  • High IP64 protection
Flexible
  • Quick and easy installation.
  • Modular design.
  • Wide range of plug and cable connections.
Reliable with three-chamber system
  • Reliable due to interference-free transmission.
  • Transmission of Ethernet, signal, load, pneumatics and hydraulics.
  • Innovative contact technology, low maintenance, and durable.
  • Field bus or Ethernet up to 100 Mbit/s.
Application areas for slip rings
Industrial automation, bottling plants, labelling machines, rotary tables, ...
Data sheet

SR120

PDF ∼ 416,7 KB | 09.2022
DE
EN
US
Installation manual

SR120 - Contact material silver/precious metal | copper/bronze

Multilingual: German, English
PDF ∼ 1,2 MB | 12.2016

Declaration of conformity

SR120 / SR160 CE

Multilingual: German, English, English (USA), French
PDF ∼ 68,0 KB | 04.2017

Mechanical CAD / STEP

SR120

ZIP ∼ 17,9 MB | 08.2016

Accessories

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
2 x 2 x 0,34 mm2
05.00.6031.4411.XXXM

Data sheet
M12 cable satez, PUR, pin, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4444.XXXM

Data sheet
M12 cable set, PUR, 2xpin, 4-pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4511.XXXM

Data sheet
M12 cordset, PUR, male, angled, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin
05.00.6031.4544.XXXM

Data sheet
M12 cordset, PUR, male straight - angled, 4-pin, D-coded
DE EN FR

RJ45 Connector with cable ,  Ethernet cable

RJ45 Connector with cable , Ethernet cable

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 8-pin

Male connector 4-pin PUR Ø 6,5 mm ± mm
4 x 0,34 mm2
05.00.6031.7444.XXXM

Data sheet
Cordset RJ45 connector + M12 pin, 4-pin, D-coded, PUR cable, Profibus
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
05.WASCSY4S

Data sheet
M12 pin, 4-pole, D-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 5-pin
8.0000.5121.0000.Ex

Data sheet
M12 pin, Ex 2/22, 5-pin, D-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
8.0000.5128.0000

Data sheet
M12 male, angled, 4-pin, D-coded
DE EN FR
