Slip ring

Pancake

  • Reliable transmission of field bus and Ethernet
  • Adaptable
  • Long service life

Slip rings for robotics / End-of-Arm-Tooling

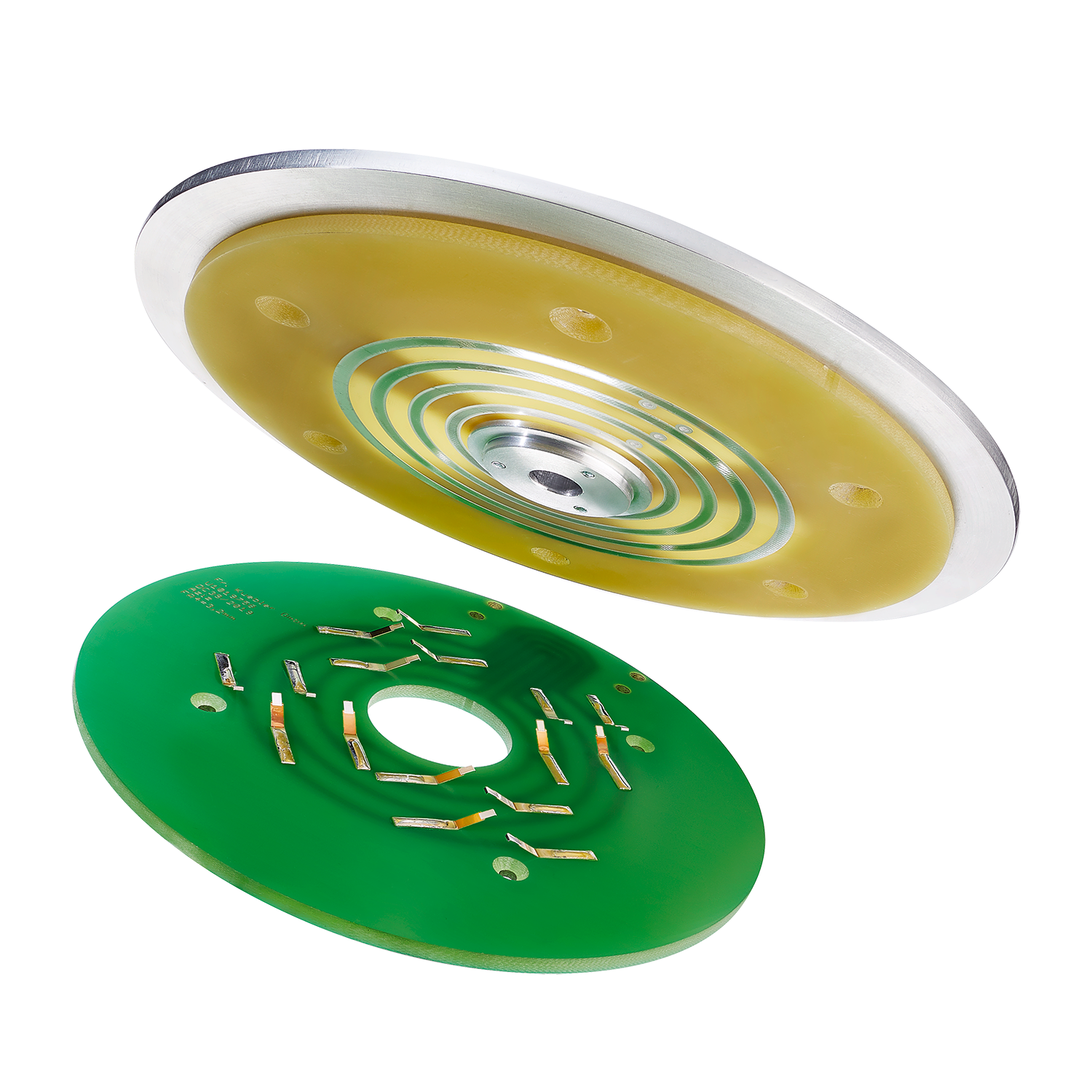

The pancake slip rings are the ideal solution for End-of-Arm-Tooling in robotics. They guarantee the reliable transmission of signals, data and load in a very short installation space and at low weight. The system consists of two  superimposed boards with slip ring tracks and transfer brushes. The flexible design allows optimal integration into your End-of-Arm-Tooling. For example, for additional positioning on high-precision robots, the slip ring can also be combined with a secondary encoder.

Mechanical
Mounting type Flange
Connection types Cable
Connectors
Media lead-through Pneumatics
Hydraulics
Working temperature - 35 °C ... + 85 °C
Protection level IP65
IP00
Rotational speed 100 min-1
Service life 40 Mio. Umdrehungen million revolutions
Electrical
Max. number of signal channels 20
Transmission Fieldbus
Industrial Ethernet
Properties
  • Up to 20 channels for fieldbus / Industrial Ethernet, load and signal transmission
  • Particularly short design, low weight with high signal density
  • High contact reliability

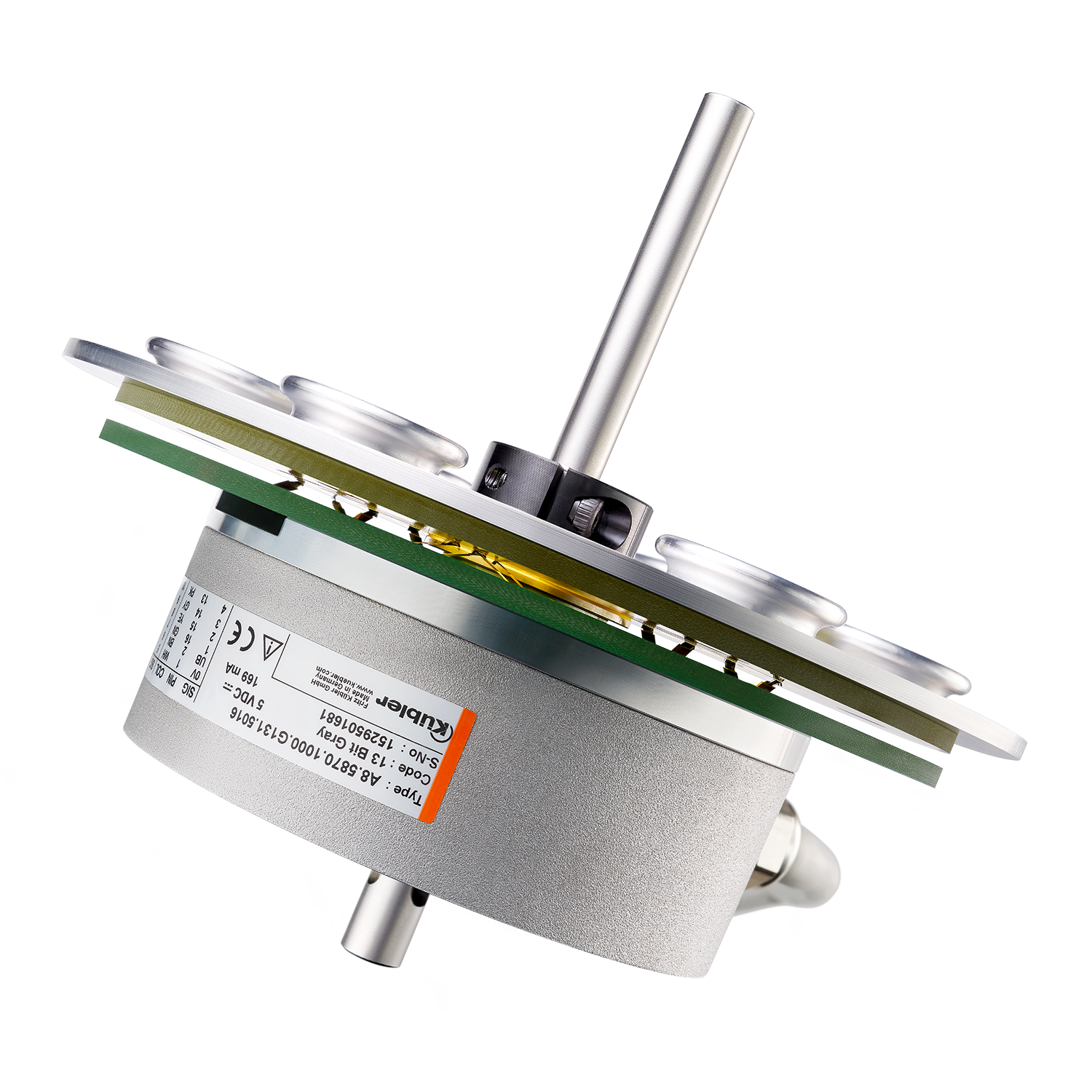

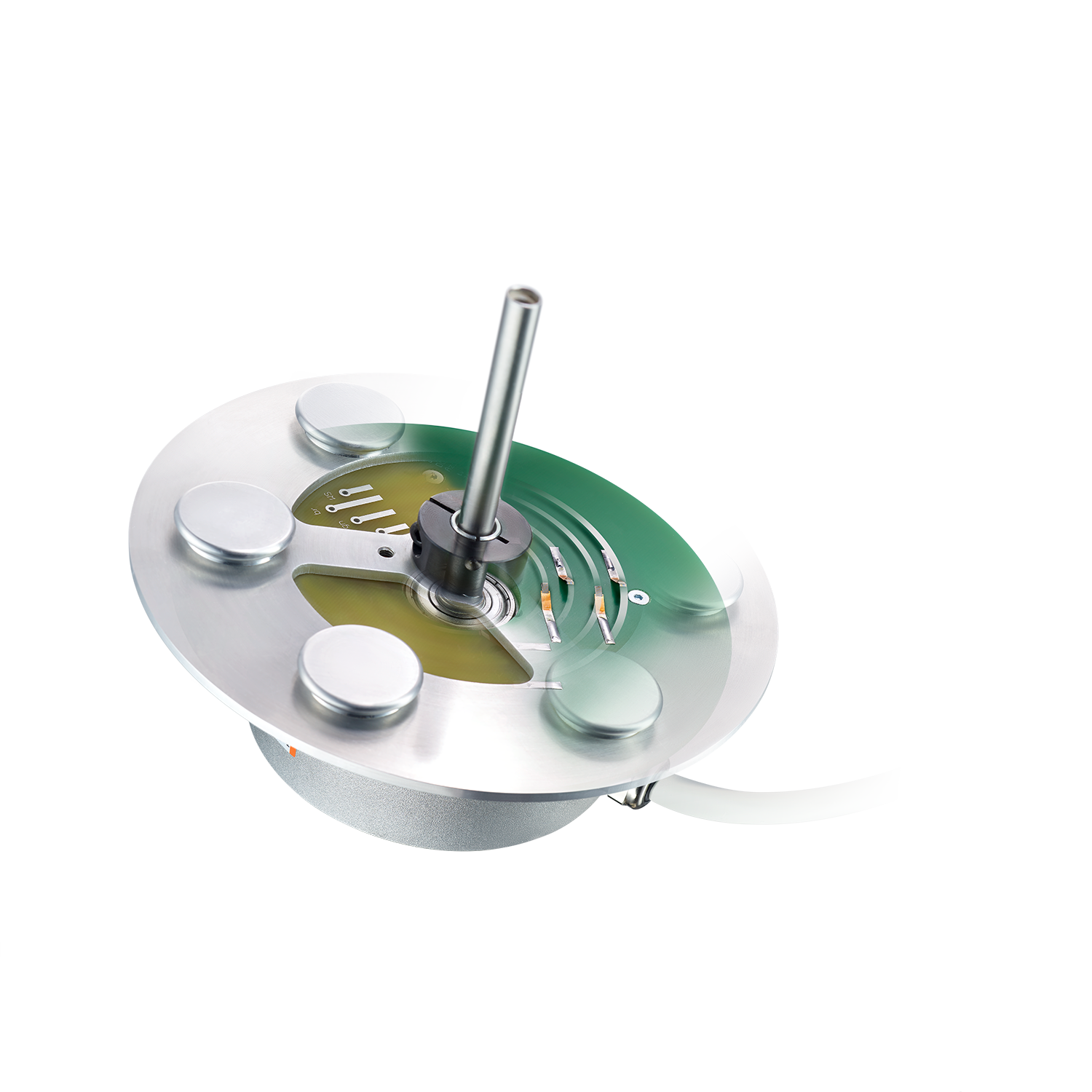

  • Optionally with integrated Kübler absolute encoder

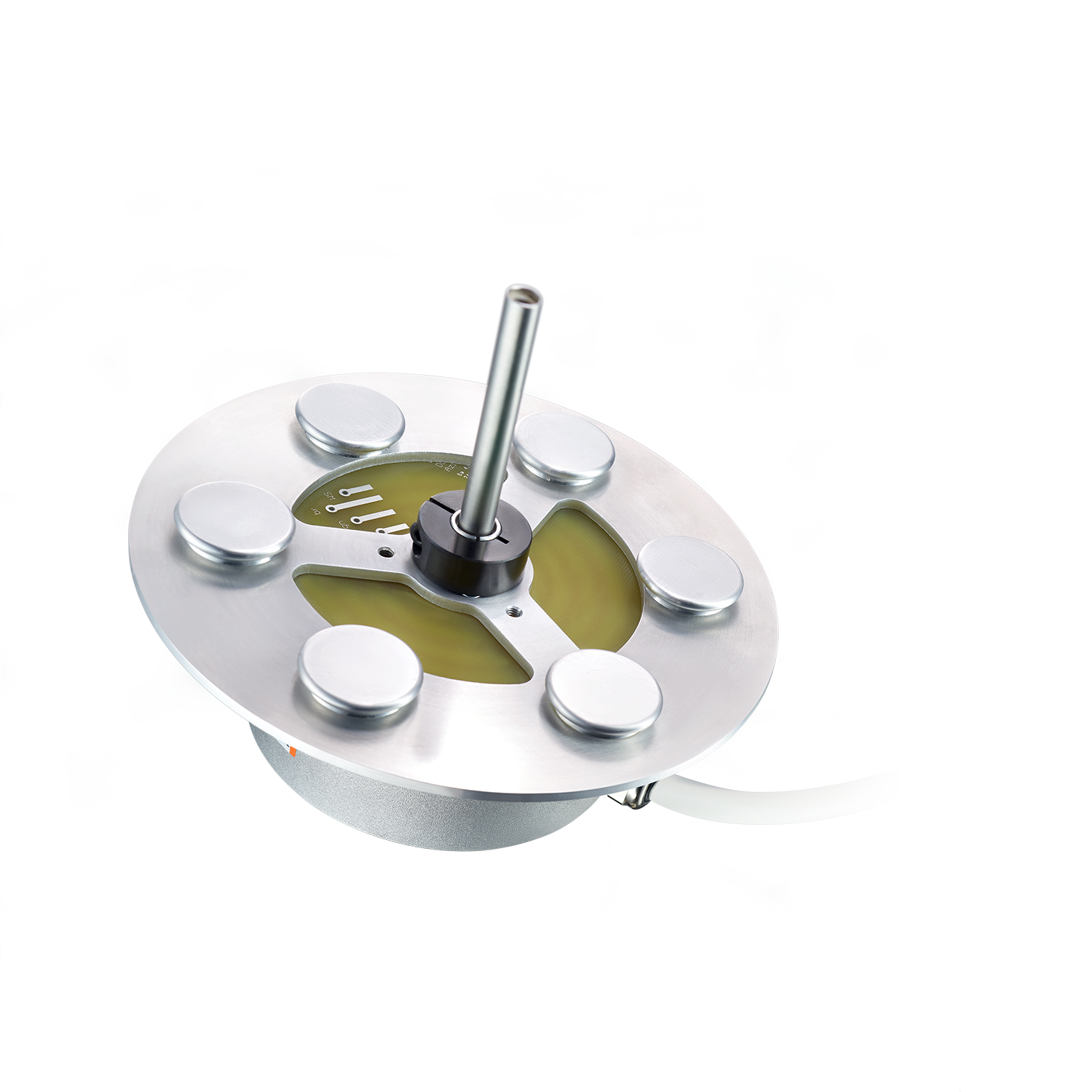

  • As kit or encapsulated for optimum integration
  • Maintenance-free
Your benefits
  • Diameter 160 mm – installation depths starting at 10 mm
  • Working temperature from -40°C ... +75°C
  • Load transmission up to 5 A / 60 VAC, 48 VDC
