Shaft copying systems
SGT03
|
|

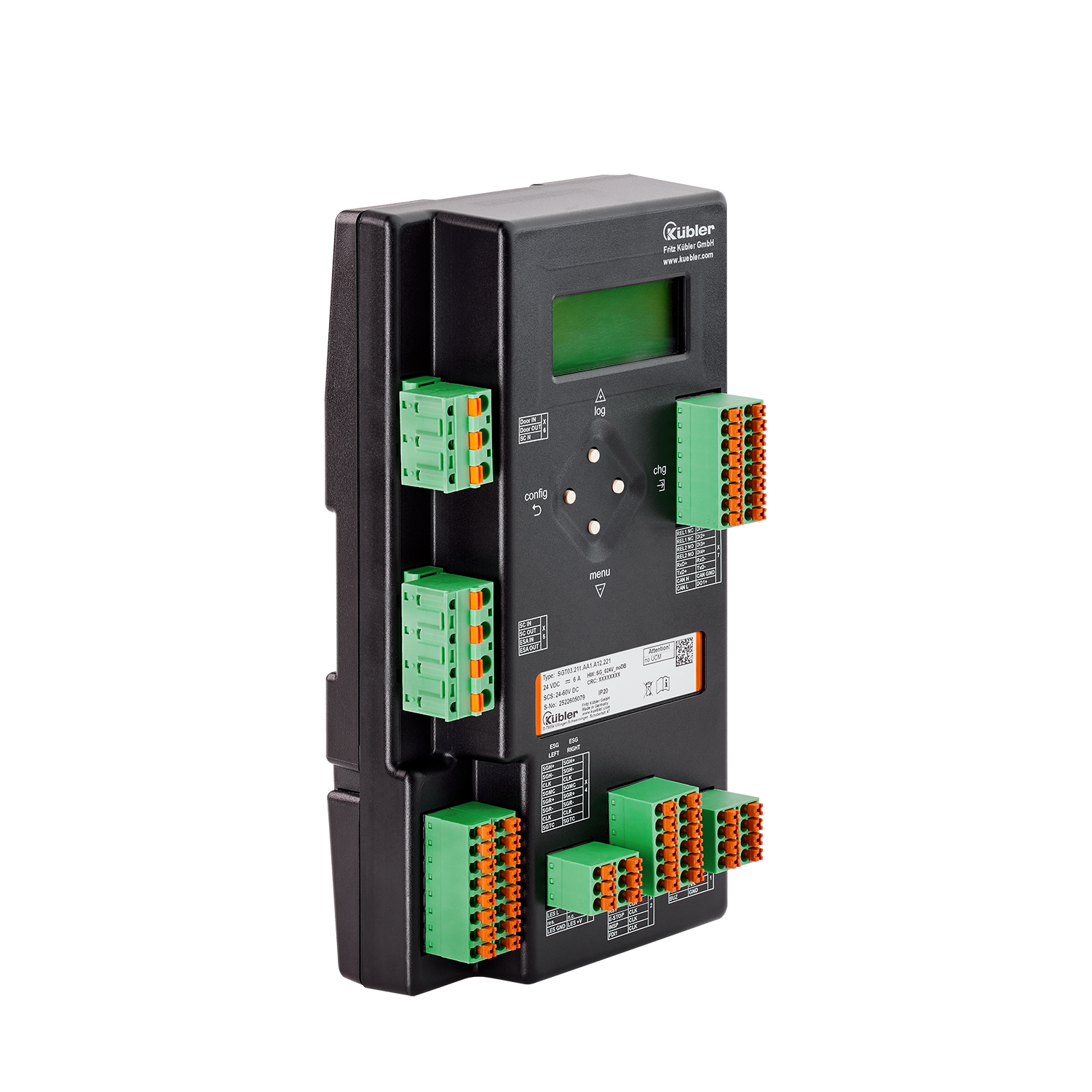

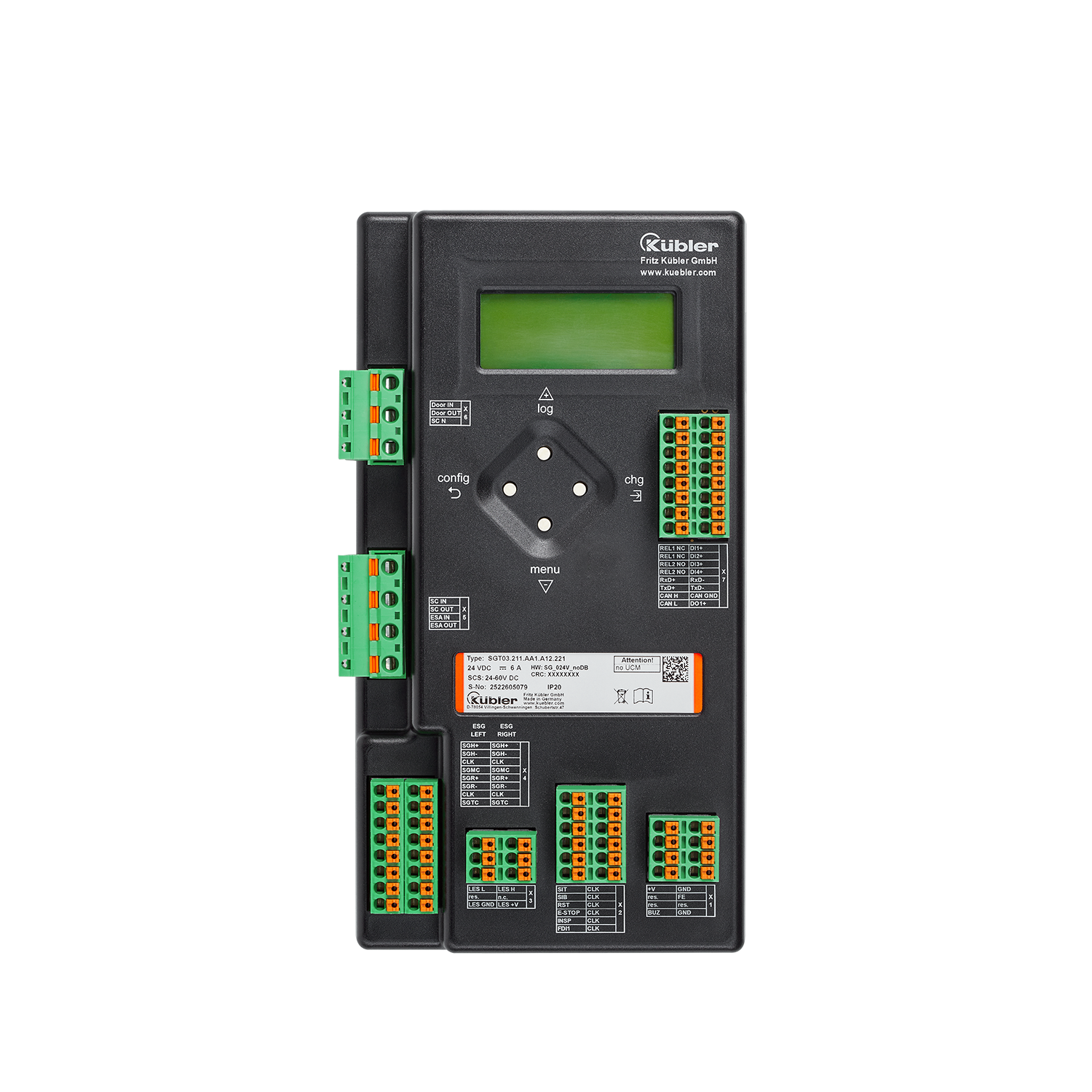

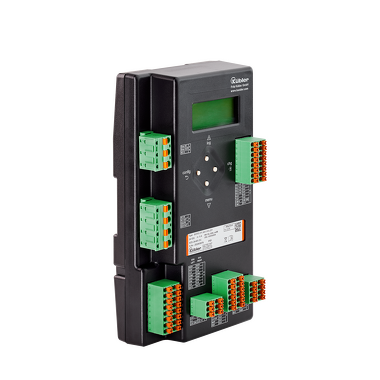

Safe shaft copying system - electronic speed governor with intelligent safety gear management
The SGT03 evaluation unit is used in combination with Ants LES03 sensors to trigger, reset, and monitor the electromechanical safety gear.| Mechanical | |
|---|---|
| Measuring system | Shaft copying systems |
| Dimension | 178 mm x 95 mm x 45 mm |
| Working temperature | -20 °C ... +65 °C |
| Protection level |
IP20 |
| Weight | 390 g |
| Electrical | |
|---|---|
| Interfaces |
CANopen-Lift RS485 SSI |
| Power supply |
24 V DC |
Electronic overspeed governor
In combination with the Ants LES03 sensor, the SGT03 replaces traditional mechanical speed limiters.
Triggering, resetting, monitoring
In the event of overspeed, the SGT03 triggers the electromechanical safety gear.
In addition, it also monitors and resets the respective safety gear.
Control-independent
The electromechanical safety gear is triggered control-independent – ideal for modernization projects.
MODBOX – faster installation and even greater safety
SGT03 evaluation unit optionally pre-wired with power supply and backup batteries in IP66 plastic housing.
Emergency power supply for the safety gear for at least 1 hour.
Opening of the electromechanical safety gear for emergency release (e.g., in the event of a blackout)
Accessories
Cables and connectors
