Ants LES01

Shaft copying systems

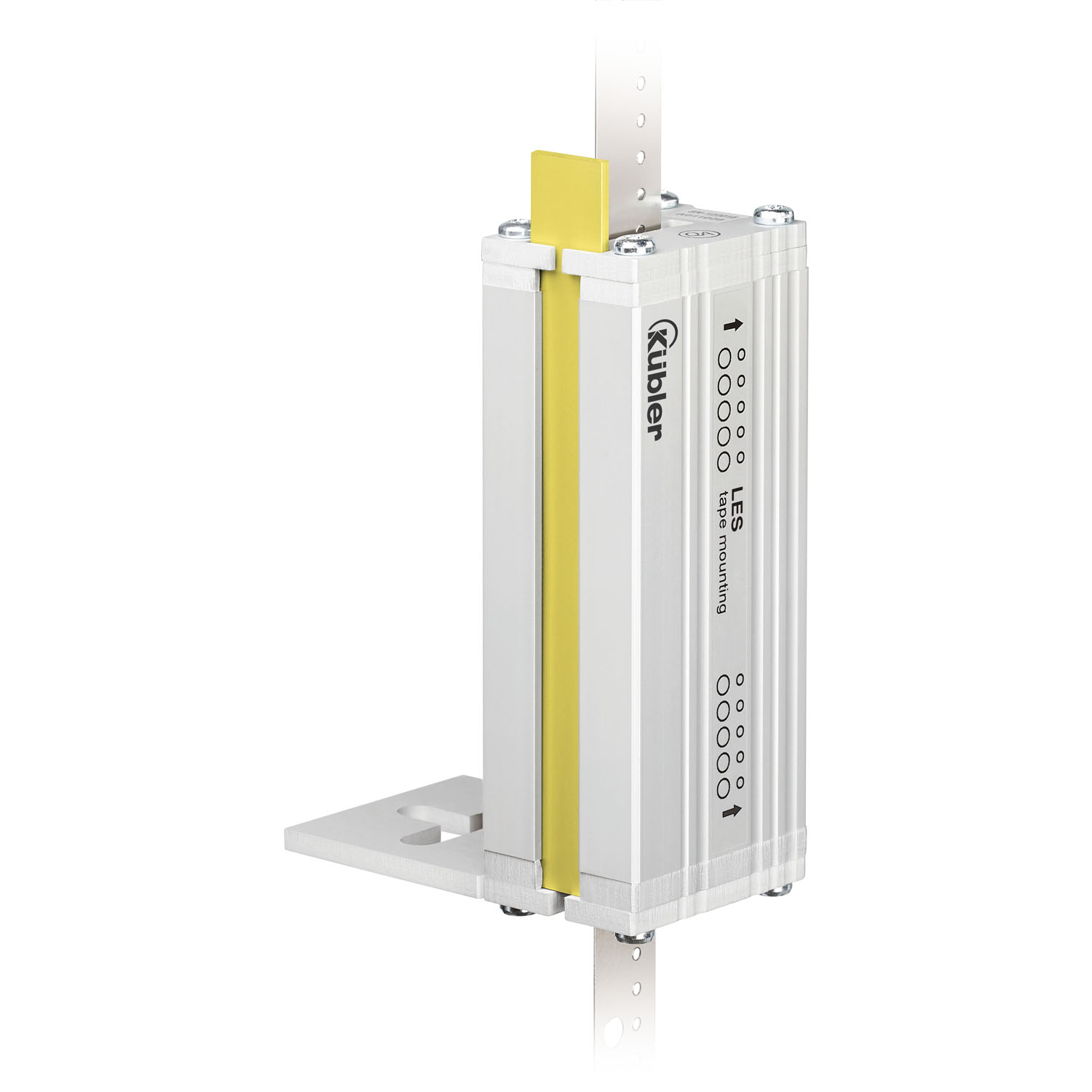

Ants LES01

  • SIL3, EN 81-20/50
  • 100% slip-free
  • Extremely robust
  • Maximum compact
  • Simple mounting
  • Measuring length 392 m
  • Speed 5 m/s
  • Resolution max. 1 mm
  • Accuracy 1 mm
CAN

Shaft copy system – safe and absolute positioning of the elevator car.

Absolute position acquisition, SIL3. Ants LES01 is an extremely robust, compact measuring system. With a resolution of 1 mm and a travel speed of 5 m/s, absolute position values of the car are determined slip-free using a contactless measuring principle. No additional components such as magnetic switches are necessary. Simple assembly especially reduces installation times and thus contributes to the reduction of the overall costs.

Mechanical
Measuring system Shaft copying systems
Measuring length 392 m
Speed 5 m/s
Dimension 135 mm x 45 mm x 33 mm
Working temperature -5 °C ... +70 °C
Protection level IP30
Weight 240 g
Electrical
Resolution max. 1 mm
Accuracy 1 mm
Interfaces CAN
Supply voltage 10...30 V DC

Characteristics

  • SIL3-certified by TÜV.
  • Absolute position values.
  • Measuring length up to 392 m.
  • Extremely robust and compact.
  • Stainless steel coded band.
  • Simple assembly.
  • Contactless measuring principle.

 Benefit

  • Fulfills safety functions in compliance with EN81-20/-21/-50 (combinable with Kübler PSU02).
  • Eliminates components required until now such as limit switches, door zone magnets…
  • Highest availability – no referencing required in case of power outage.
  • 100 % slip-free – absolute position measurement directly at the elevator car.
  • Suitable for tightest installation spaces.
  • Reduced installation work.
Data sheet

Ants LES01

PDF ∼ 467,5 KB | 02.2019
DE
EN
FR
Installation manual

Tape measure packaging Ants Base, Ants Safe

Multilingual: German, English, French, Italian, Spanish, Chinese
PDF ∼ 1,1 MB | 04.2019

User manual

Ants LES01 (Linear Encoder Safe)

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 5,4 MB | 02.2019

Manual

Ants LES01 (Linear Encoder Safe)

PDF ∼ 436,9 KB | 01.2019
DE
EN
Notice

Ablängung, Kennzeichnung und Nachverfolgung Codeband 392 m

Multilingual: German, English, French, Italian, Spanish, Chinese
PDF ∼ 1,5 MB | 06.2019

Brochures

Ants LEB / Ants LES Shaft copying system

PDF ∼ 169,3 KB | 11.2017
DE
EN
IT
