Draw-wire encoders

A50

  • Encoder freely selectable
  • Precise measuring
  • High dynamics
  • Simple mounting
  • Encoder freely selectable
  • Max. measuring length 1,25 m
  • Speed 10 m/s
  • max. linearity ±0,02 %
Analog 0–10 V
IO-Link
CANopen
Push-pull
TTL / RS422
SAE J1939
SSI, binary
BiSS

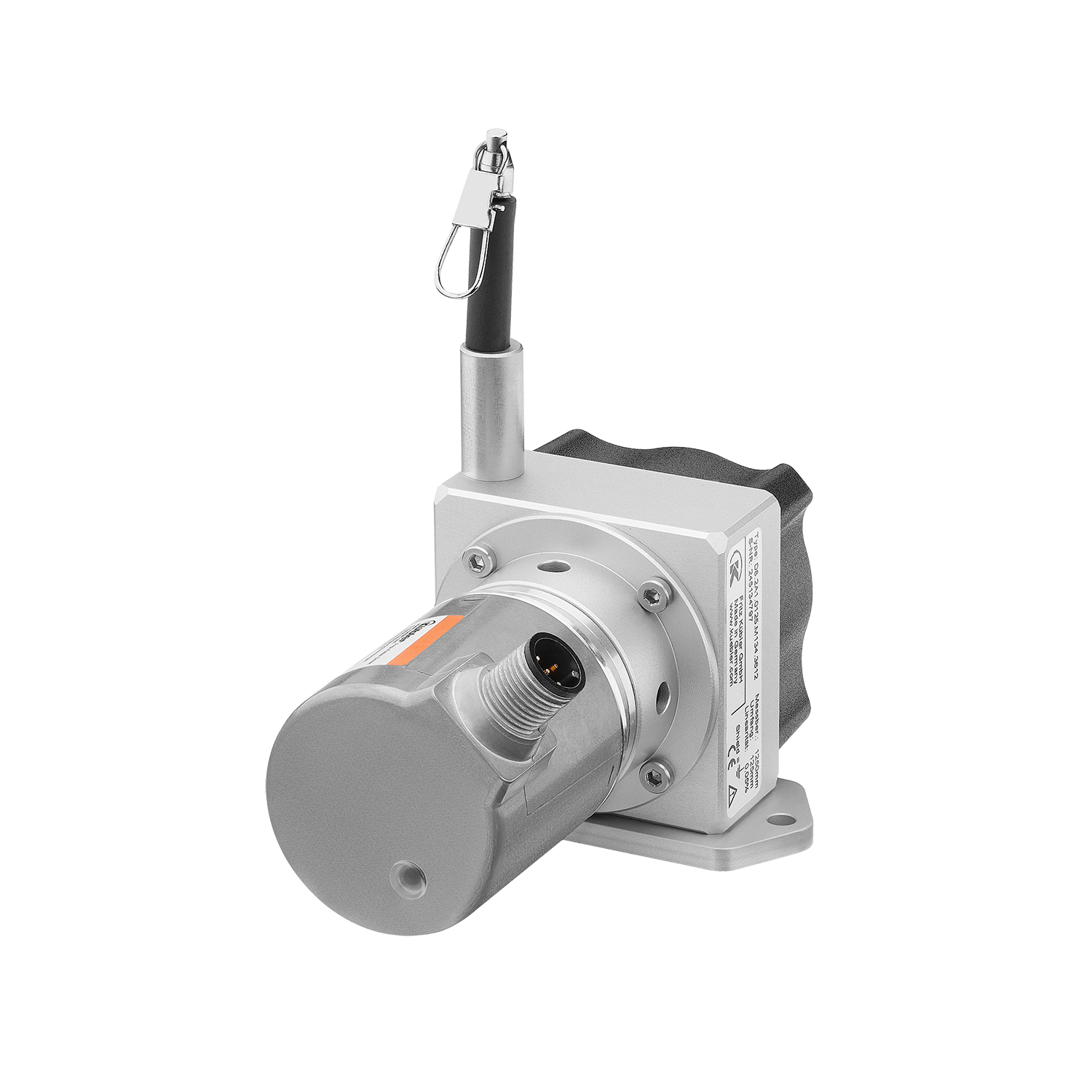

Draw-wire encoder - the compact one for the highest requirements.

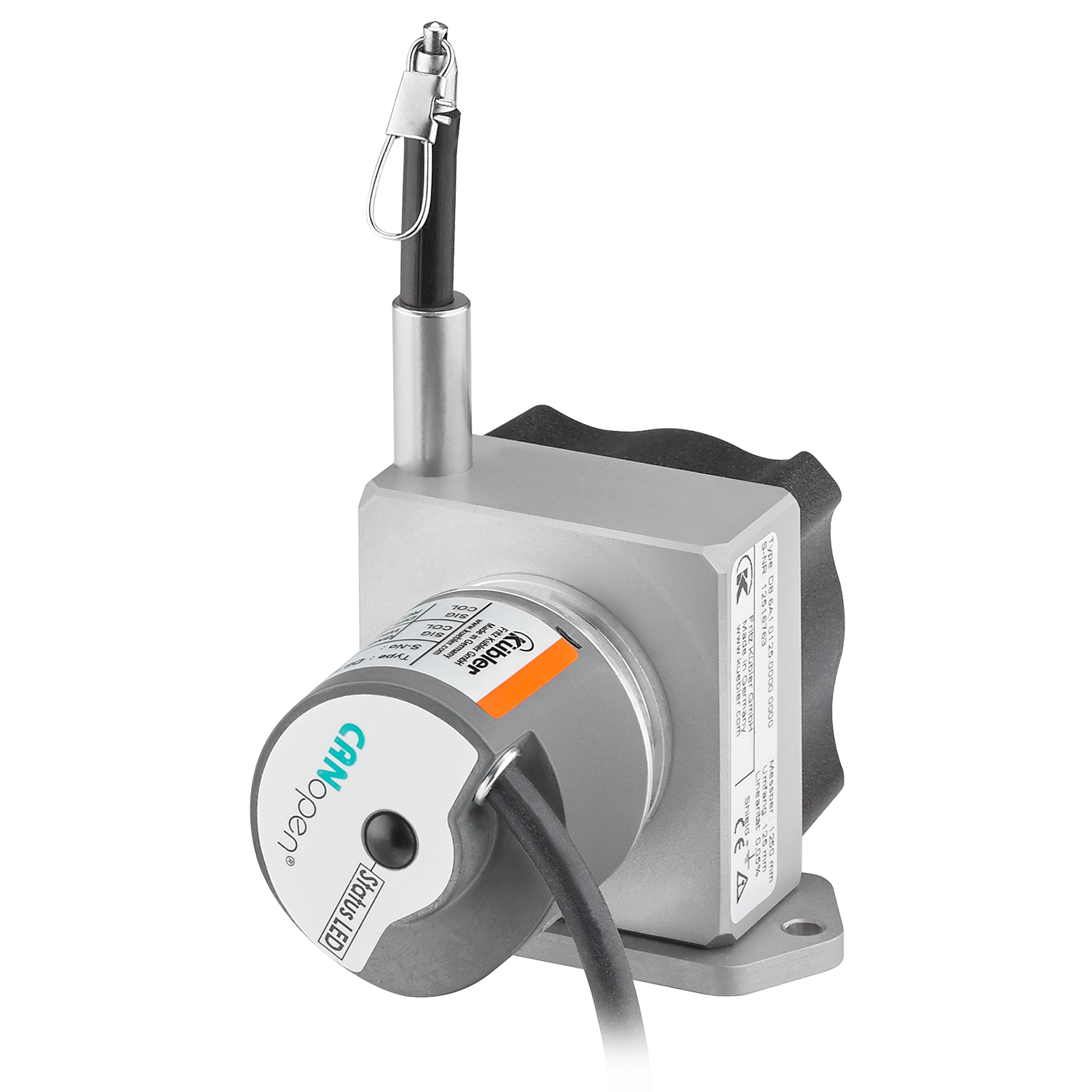

The draw-wire mechanics A50 boast both a compact design and high dynamics.

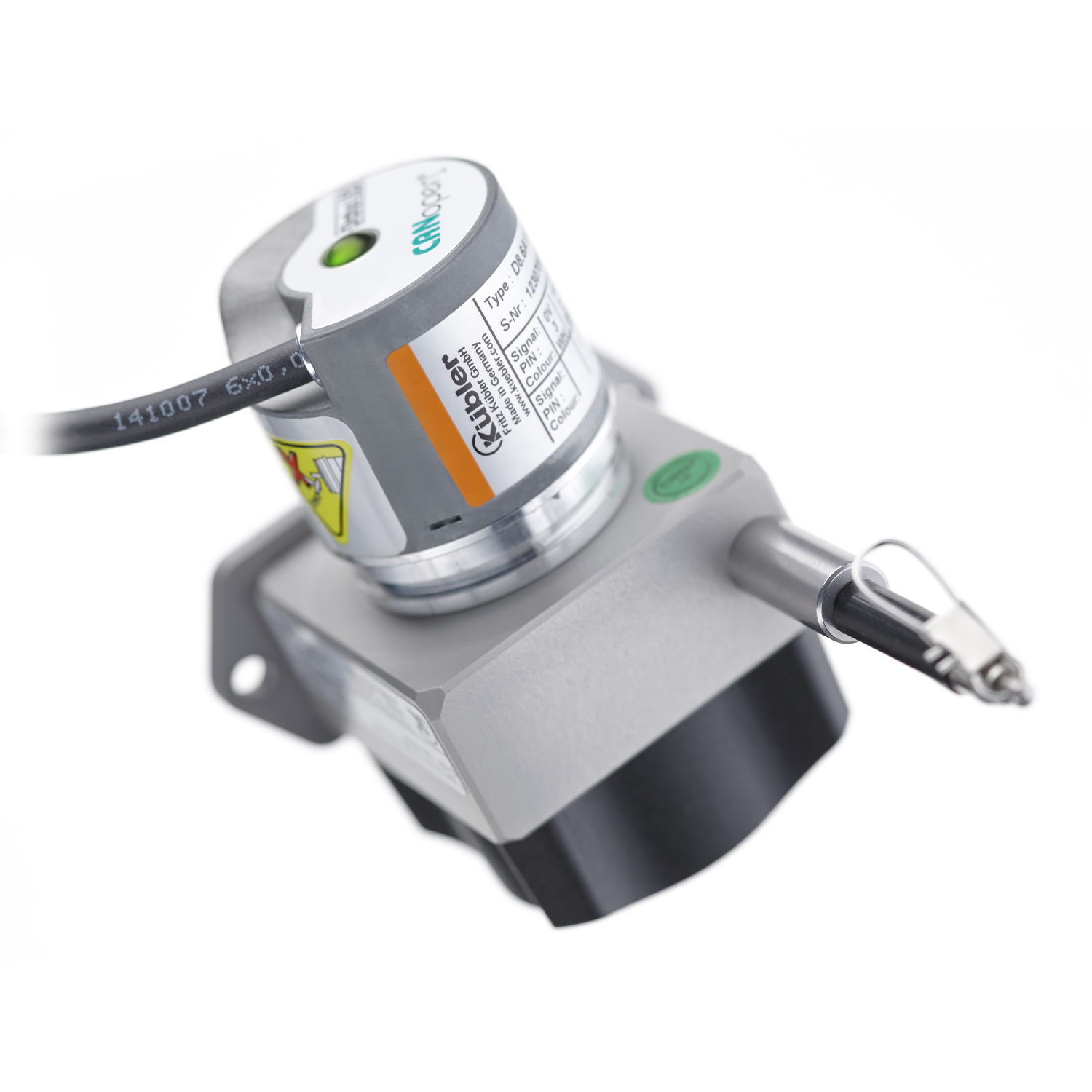

The draw-wire mechanics may be equipped with encoders with an analog, incremental or absolute output. The maximum measuring length is 1.25 m.

Mechanical
Measuring system Draw-wire encoders
Measuring length 0.25 m
0.5 m
1,25 m
Speed 10 m/s
Dimension 50 mm x 50 mm x 99 mm
Working temperature -20 °C ... +85 °C
Protection level IP65
Weight 330 g
Electrical
max. linearity ±0,02 %
Interfaces Analog 0...10 V
Analog 4–20 mA
IO-Link
CANopen
Gegentakt
TTL / RS422
SAE J1939
Potentiometer output
SSI, binär
BiSS
Power supply 12...30 V DC
Robust
  • The titanium-anodized aluminum housing and the stainless steel wires allow for using the mechanics even in harsh conditions.
  • Wear-free wire exit thanks to special plain bearing guide.

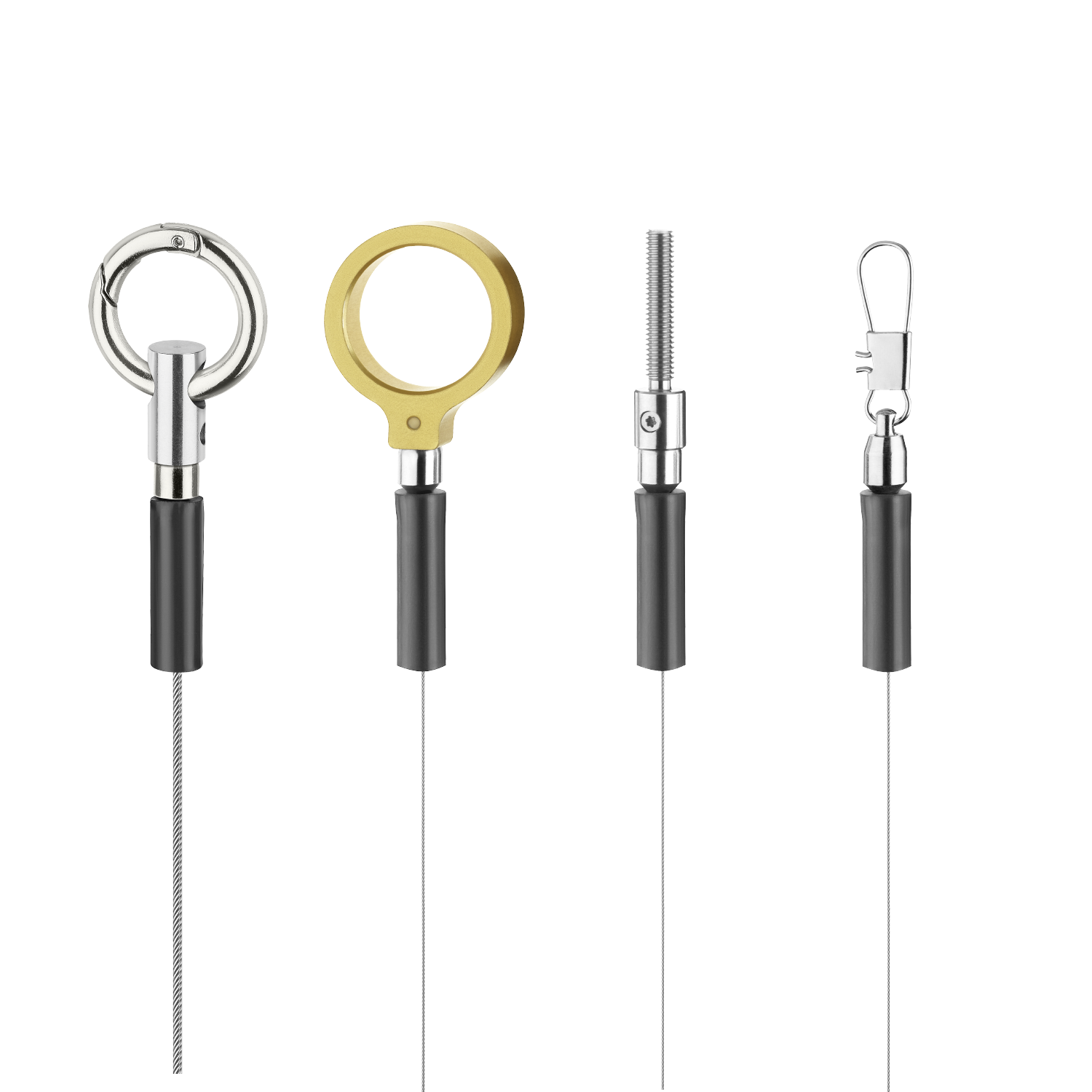

  • Various wire types and wire fastenings.
Versatile
  • High traverse speed, up to 10 m/s.
  • High acceleration, up to 300 m/s².

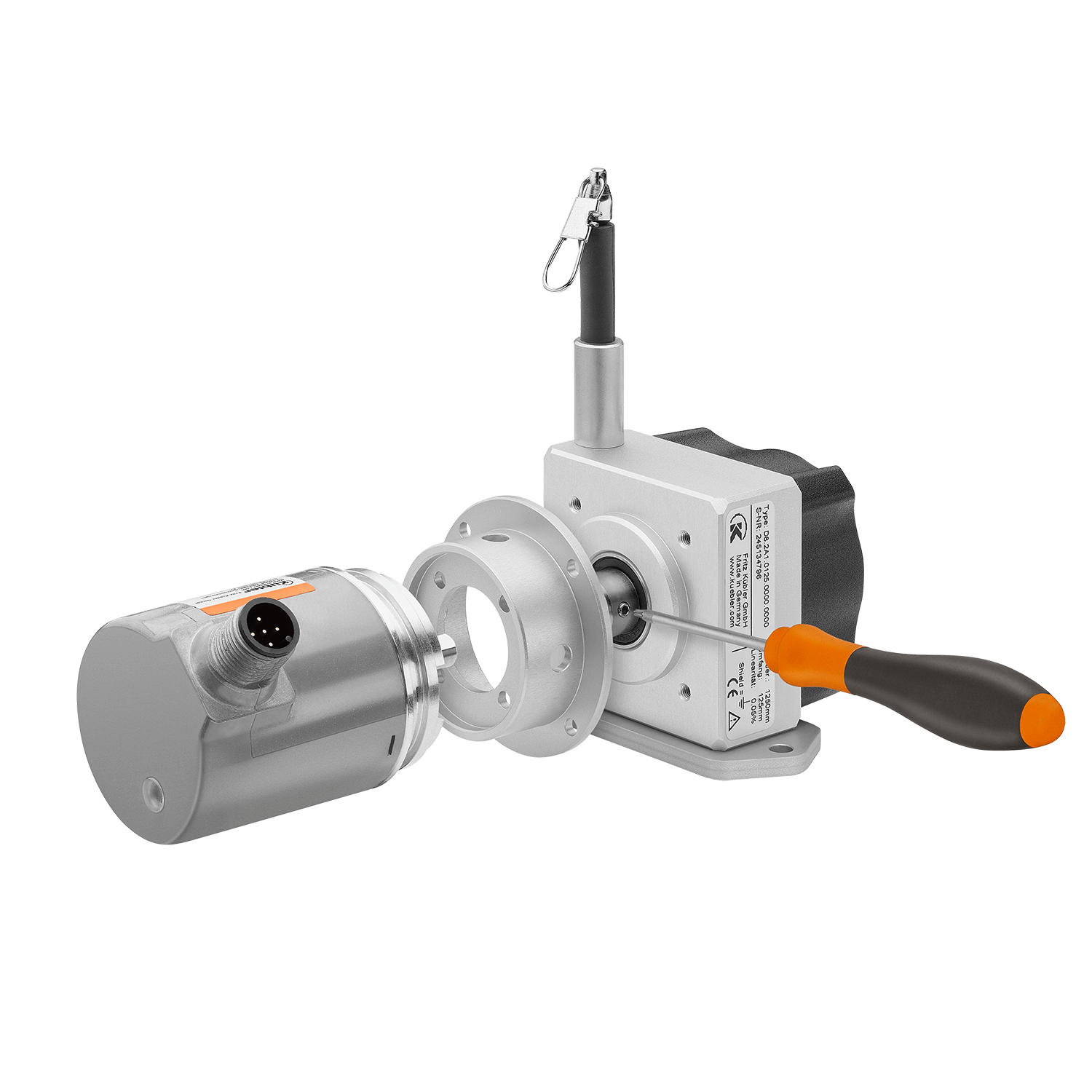

  • Quick fastening by means of 2 screws.
  • Various connection possibilities available.
  • Scalable analog output with limit switch function.
Data sheet

A50

PDF ∼ 1,0 MB | 08.2024
DE
EN
FR
Installation manual

Safety Advice for Draw-wire encoders

Multilingual: German, English, French, Italian
PDF ∼ 160,6 KB | 05.2017

Manual

A50

PDF ∼ 553,1 KB | 11.2024
DE
EN
FR
Safety characteristics

A50 MTTFd

Multilingual: German, English
PDF ∼ 153,2 KB | 06.2019

A50 MTTFd

Multilingual: German, English
PDF ∼ 186,2 KB | 06.2019

Declaration of conformity

A50 / B80 / C120 / D135 CE

Multilingual: German, English, French
PDF ∼ 143,0 KB | 11.2024

Device file

Sendix M36x8 ST CANopen

ZIP ∼ 21,7 KB | 03.2017

Sendix M36x8 MT CANopen

ZIP ∼ 13,8 KB | 05.2021

Sendix F36x8 CANopen

ZIP ∼ 1,2 MB | 03.2025

Sendix M58x8 MT CANopen

ZIP ∼ 678,9 KB | 12.2022

Mechanical CAD / STEP

A50

ZIP ∼ 3,4 MB | 01.2015

Brochures

Solutions for Mobile Automation

PDF ∼ 6,8 MB | 05.2024
DE
EN
FR
Flyer

Portfolio overview Draw-wire encoders

Multilingual: German, English
PDF ∼ 221,1 KB | 11.2019

Accessories

Guide pulley

Guide pulley

With guide pulleys, linear movements can also be directed around obstacles. This not only increases their flexibility but can also compensate for installation tolerances. Idler pulleys can also act to clean off dirt and break ice.

Technical data:
  • Installation angle (anodized aluminum)
  • Guide pulley (plastic POM)
  • Ball bearing (Type 696-2R5)
Scope of delivery:
  • 2 x countersunk screws for side fixing
  • 2 x Allen screws for fixing on a flat surface
8.0000.7000.0045
Mechanical CAD / STEP
8.0000.7000.0045

Extension cable steel

Extension cable steel

With extension cables, the actual measuring range can be used without any loss of resolution. We offer numerous extension cables in our portfolio for this purpose.
5 m 8.0000.7000.0048
0,5 m 8.0000.7000.0051
1 m 8.0000.7000.0052
6,5 m 8.0000.7000.0053
3 m 8.0000.7000.0055

IO-Link Master

IO-Link Master

For parameterizing device settings via FDT/IODD communication. USB interface for easy connection to a PC and for power supply.
IOL1A.1K1341.ZZ1UU1
Data sheet
IO-Link Master USB
DE EN FR
Software
DTM IO-Link Master - USB
Software
PACTware DTM IOL IODD Interpreter

Simple connection for any Ethernet protocol.

Simple connection for any Ethernet protocol.

The IO-Link masters from Kübler are available with the Ethernet/IP, EtherCAT and PROFINET protocols. Versions with 4 or 8 ports are available in Class A and Class B. Existing field devices that send classic switching signals can also be operated per port in SIO mode.
IOL4A.124341.1222XX

Simple connection for any Ethernet protocol.

Simple connection for any Ethernet protocol.

The IO-Link masters from Kübler are available with the Ethernet/IP, EtherCAT and PROFINET protocols. Versions with 4 or 8 ports are available in Class A and Class B. Existing field devices that send classic switching signals can also be operated per port in SIO mode.
IOL4A4B.1L8341.1L21XX

Signal tower ST40: Reliable signalling of machine and system statuses.

Signal tower ST40: Reliable signalling of machine and system statuses.

The ST40 signal tower with a 360° all-round LED display is the perfect solution for fast and reliable signaling of machine and plant statuses. A far-reaching perception can be achieved with the optional siren.
Thanks to the integrated IO-Link interface, the product can be easily and seamlessly integrated into an existing IO-Link network.
The signal tower is the ideal choice for maintaining maintaining visibility, especially in confusing or spacious environments.
ST40.1X2.3X8
Data sheet
ST40
DE EN

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8251-0/9

Data sheet
M12 socket, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR

Cable 5 x 0,14 mm<sup>2</sup>  ,

Cable 5 x 0,14 mm2 ,

Unassembled by the meter

PVC Ø 4,7 mm ± 0,2 mm
5 x 0,14 mm2
8.0000.6300.XXXX
Data sheet
Cable, 5-core, PVC
DE EN FR

Cable 5 x 0,75 mm<sup>2</sup>  ,

Cable 5 x 0,75 mm2 ,

Unassembled by the meter

TPE Ø 7,5 mm ± 0,3 mm
5 x 0,75 mm2
8.0000.6600.XXXX
Data sheet
Cable, 5-core, PE-X
DE EN FR
