Draw-wire encoders
A41
|
|
Draw-wire mechanism with encoder.

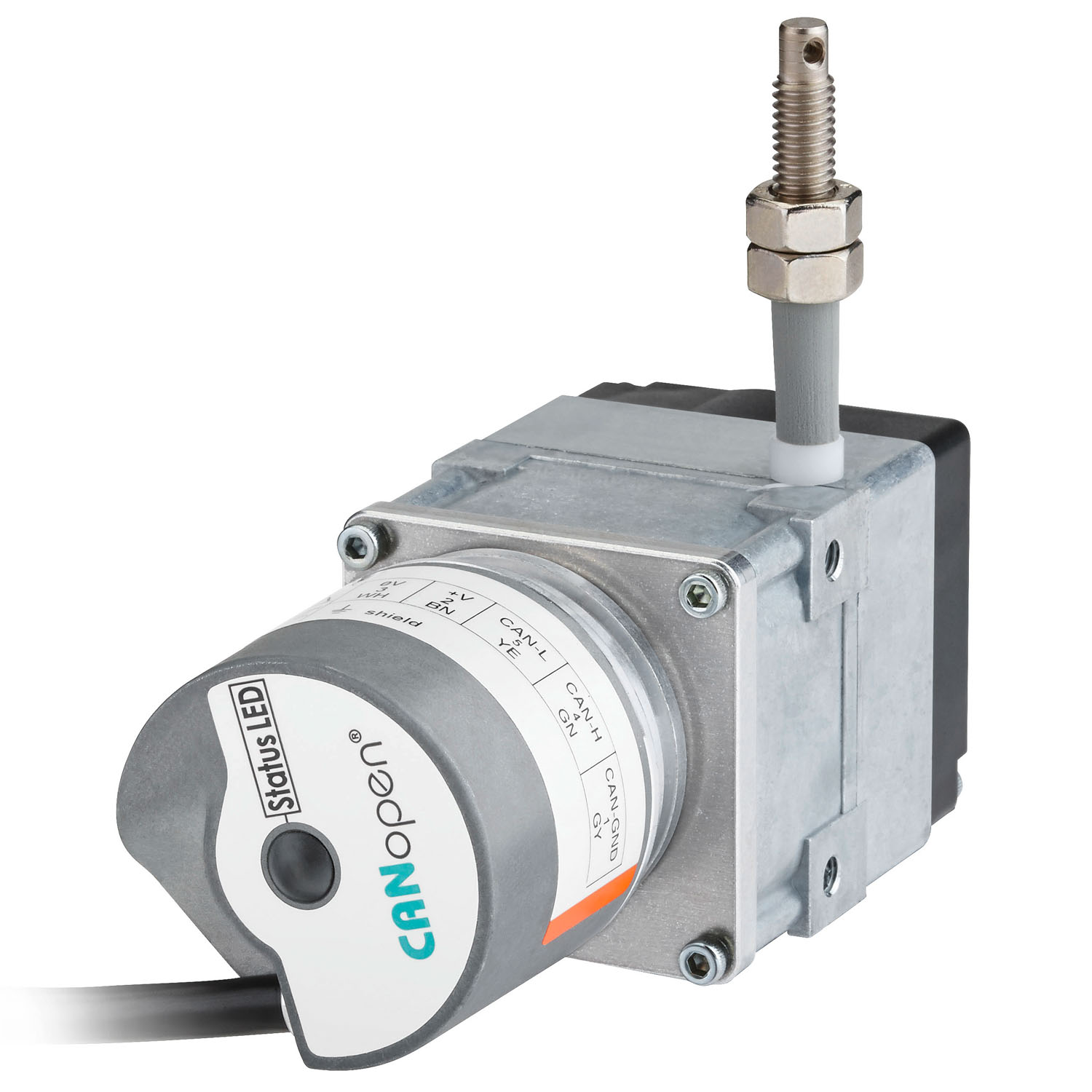

The draw-wire mechanics A41 with absolute encoder excels with its compact construction.These draw-wire mechanics can be equipped with multiturn encoders of the F366x and M366x series. The maximum measuring length is 2 meters.
| Mechanical | |
|---|---|
| Measuring system | Draw-wire encoders |
| Measuring length |
2 m |
| Speed |
1 m/s |
| Dimension | 50 mm x 50 mm x 77 mm |
| Connection types |
M12 connector axial |
| Working temperature | -10 °C ... +80 °C |
| Protection level |
IP65 |
| Weight | 200 g |
| Electrical | |
|---|---|
| max. linearity |
±0,35 % |
| Interfaces |
Analog 0...10 V Analog 4–20 mA IO-Link CANopen SAE J1939 SSI, binär BiSS |
| Power supply |
10...30 V DC 15...30 V DC |
Compact and simple
- Measuring length up to 2000 mm.
- Scalable analog output with limit switch function.
- For applications with low traverse speeds.
- Easy mounting.
- Robust zinc die-cast housing.
