Encoders Absolute singleturn

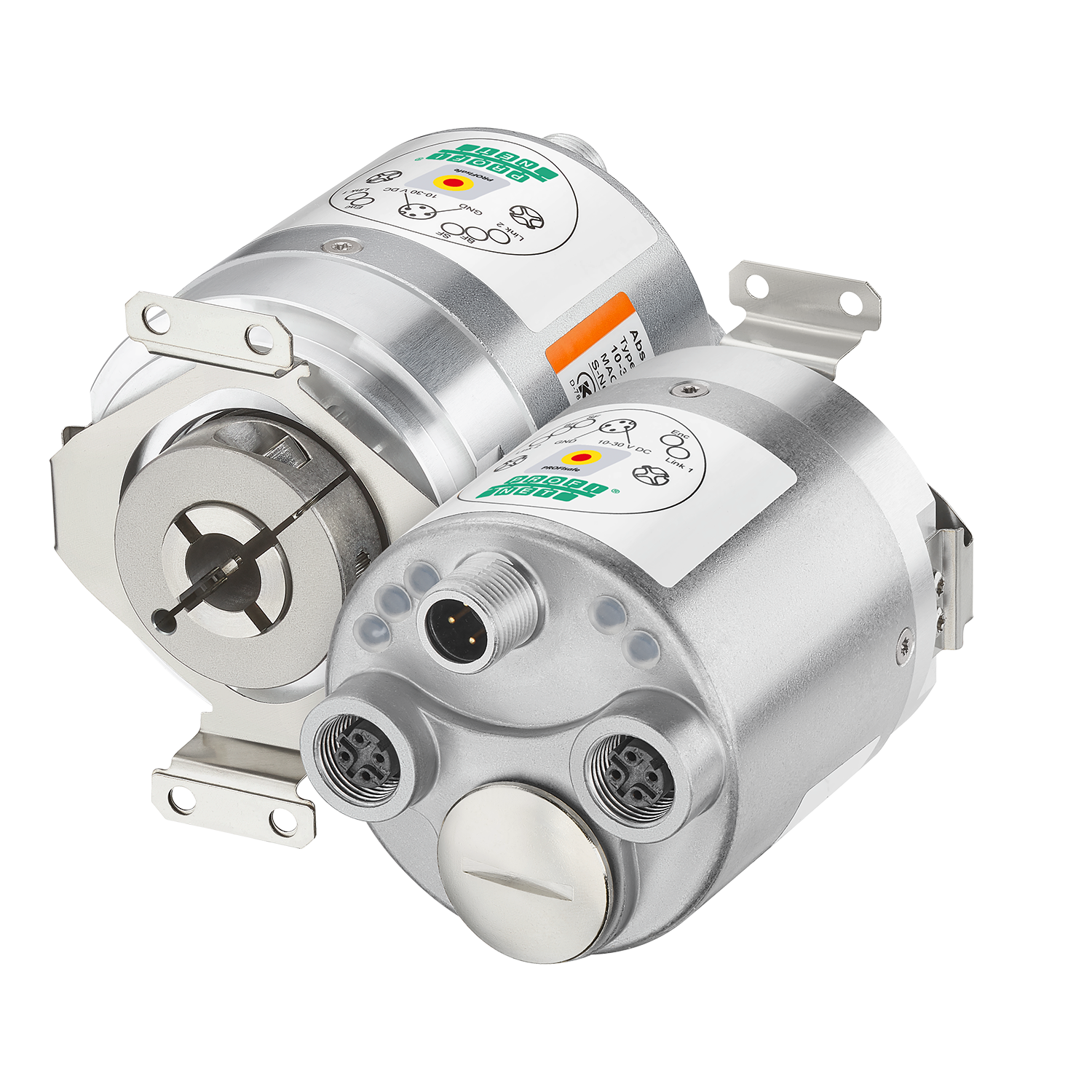

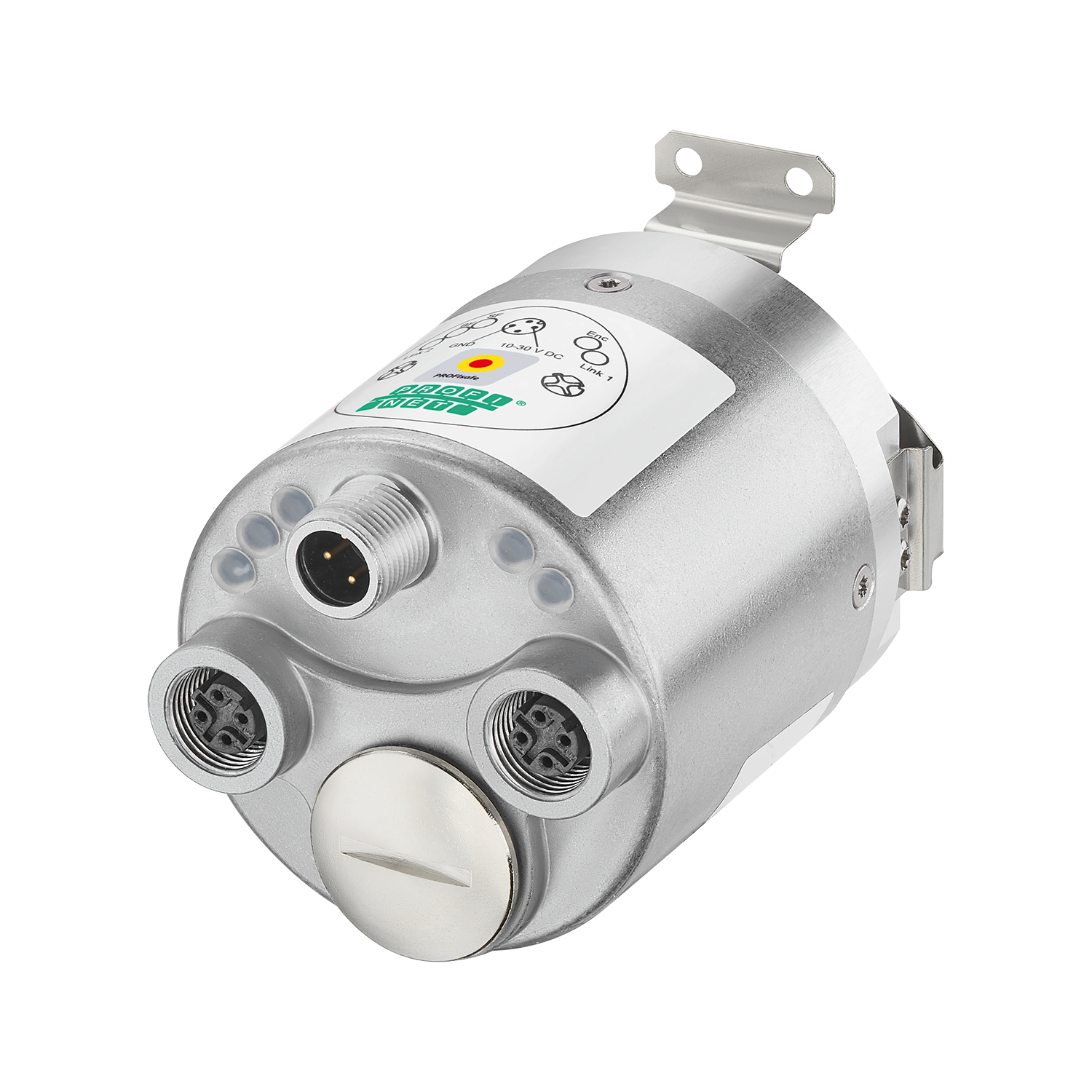

Sendix S5878FS3

  • Redundant sensors
  • High precision
  • Dimension Ø 58 mm
  • 24 bits singleturn
  • Max 1/2" hollow shaft, blind hole
  • Max 15 mm hollow shaft, blind hole
PROFIsafe
PROFINET IO

For safety applications – Sendix S58 PROFIsafe encoders

The optical absolute Sendix S58 PROFIsafe encoders are based on the new Kübler Industrial Ethernet encoder platform and are therefore already designed today for future Industry 4.0 concepts.
One example of this is the integrated web server: Features or adjustments can be implemented quickly and easily at any time.
As certified SIL3 / PLe encoders with redundant design and PROFINET interface, they support the PROFIsafe profile and are predestined for safety applications.

Connectivity stands for the ability to communicate additional information and / or to be integrated in a network. This can take the form of additional interfaces such as OPC-UA (e.g. for additional edge communication) or Industrial Ethernet communication as well as a digital interface such as "BISS" or "SCS open link".

Identification is the ability to transmit technical information by means of an electronic data sheet / type plate. In addition, further information about the machine can be transmitted (e.g. information about the axis where the encoder is installed). Essentially, all the information required in the application for asset management is recorded here.

Diagnostics functions provide relevant information about the condition of the product (e.g. error messages) or indirect information about the application. For example, an integrated temperature sensor can indicate that the permissible working temperature range has been exceeded. Or integrated vibration sensors provide information on the condition of the power train bearings. Highly integrated bearingless systems in particular can provide reliable information here. Log and time stamp functions in Industrial Ethernet encoders make it possible to create lifetime histograms.

Adaptability refers to adaptability, which can take place on two levels:

  • At the operational level, the parameters / settings of an encoder can be changed during operation, e.g. to optimize setup processes or to eliminate measurement errors with digital signal processing.
  • Software updates can be carried out at system level at any time.

The range of functions for the implementation of Industry 4.0 / IIoT concepts can be subsequently extended in order to guarantee the future viability of the system. Therefore, all Kübler fieldbus and Industrial Ethernet encoders are available with a firmware update function as standard.

Mechanical
Dimension Ø 58 mm
Shaft type 3/8 " hollow shaft, blind hole
10 mm hollow shaft, blind hole
12 mm hollow shaft, blind hole
14 mm hollow shaft, blind hole
15 mm hollow shaft, blind hole
1/2 " hollow shaft, blind hole
Flange type Stator coupling FS
Torque bracket FS, fixed
Torque bracket FS, flexible

Ø 58.00 mm
Working temperature -40 °C ... +80 °C
Protection level IP65
IP67
Connection types M12 connector axial
Max. rotational speed 9.000 min-1
Weight 450 g
Electrical
Scanning optical
Resolution max. 24 bits singleturn
Power supply 10...30 V DC
Interfaces PROFIsafe
PROFINET IO
Options
on request
  • EX protection zone 2/22
  • Salt spray test
Reliable and safe
  • Robust
    • Sturdy bearing construction in Safety-Lock™ Design for resistance against vibration and installation errors.
  • High resolution
    • Singleturn 15 bit (safe) or 24 bit (non safe).
  • Safe
    • SIL 3, performance level Ple, safety category Cat. 3.
    • Transmission via safety telegrams 36/37, according to BP and XP.
  • 100 % future-proof
    • Implement features and adaptations quickly and easily.
    • Cyber Security update in preparation / High system availability, protection against misuse (acc. IEC 62443).
Latest PROFINET functionality
  • PROFINET IO, RT, IRT allows integration in applications with different performance requirementsorderungen.
  • Supports the Isochronous Mode, can thus be implemented in networks for hard real-time requirements with clock cycles up to 500 μs.
  • PROFINET v2.4.1, encoder profile V 4.2, PROFIsafe profile v2.6.1, PROFIdrive profile v4.2
  • Ideal for highly synchronous applications, such as e. g. axis synchronization.
  • Interoperability between many different control and drive manufacturers thanks to the PROFIdrive profile.
  • Integrated web server for firmware update.
Data sheet

Sendix S5858FS3 / S5878FS3 PROFIsafe

PDF ∼ 933,8 KB | 07.2024
DE
EN
FR
Operation Manual

S58xxFS PROFINET / PROFIsafe

Multilingual: German, English, English (USA), French, Italian, Spanish
PDF ∼ 2,7 MB | 12.2022

8.0010.4047.00FS - Accessories torque stop, flexible (FS)

Multilingual: German, English
PDF ∼ 668,0 KB | 09.2020

8.0010.4051.00FS - Accessories torque stop, rigid (FS)

Multilingual: German, English
PDF ∼ 669,8 KB | 09.2020

Supplement to stator coupling operating instructions (FS)

Multilingual: German, English
PDF ∼ 603,1 KB | 09.2020

Operating manual for encoders with ATEX 2/22

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 3,6 MB | 05.2023

Manual

Encoder with PROFIsafe interface

PDF ∼ 7,3 MB | 03.2024
DE
EN
Safety characteristics

Sistema-Library

Multilingual: German, English, French
ZIP ∼ 6,3 MB | 07.2023

XML VDMA 66413

Multilingual: German, English
ZIP ∼ 3,3 MB | 07.2023

Declaration of conformity

Sendix S58x8 FS3 / S58x8 FS3 CE

Multilingual: German, English, French
PDF ∼ 183,5 KB | 06.2023

Device file

Sendix S58x8 FS3 PROFIsafe GSDML

ZIP ∼ 8,7 KB | 11.2022

Software

Sendix S58x8 FS3 PROFIsafe TCI Tool

ZIP ∼ 15,4 MB | 02.2024

PRONETA - PROFINET Network Analyzer Tool


Website
Mechanical CAD / STEP

S5878FS3 / S5888FS3 / CAD

ZIP ∼ 3,6 MB | 02.2022

Electronic CAD / ePlan

S5878FS3

ZIP ∼ 11,7 MB | 01.2023

Product Certificates

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Sendix F58xx PROFINET IO

PDF ∼ 121,8 KB | 02.2024
EN

Sendix S58xx_FS3 PROFIdrive

PDF ∼ 75,3 KB | 12.2022
EN

Sendix S58x8FS3 PROFIsafe (TÜV)

PDF ∼ 664,6 KB | 12.2022

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN

S58x8 FS3 PROFIsafe PNO

PDF ∼ 73,8 KB | 12.2022
EN
YouTube Video

Integration of an S58x8FS3 PROFIsafe Encoder in TIA Portal


Website

Accessories

Screw retention Loctite 243 (5 ml)

Screw retention Loctite 243 (5 ml)

Loctite 243 is a universally usable screw retention. Screws and nuts are secured against loosening due to vibrations and sealed in the same time.
8.0000.4G05.0000
Data sheet
Screw retention Locitite
DE EN FR

Torque stop, flexible

Torque stop, flexible

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 39.5 ... 142.75 mm
Designed for functional safety technology.
For applications with axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 M3x6 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 1 screw

8.0010.4047.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4047.00FS
Operation Manual
8.0010.4047.00FS - Accessories torque stop, flexible (FS)

Cylindrical pin (replacement)

Cylindrical pin (replacement)

For hollow shaft encoders
with flange ø 58 mm
Designed for functional safety technology.

suitable for:
Torque brackets 8.0010.4051.00FS
8.0010.4049.0075
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4049.0075

Fastening arm set, rigid

Fastening arm set, rigid

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 32.5 ... 143.5 mm
Designed for functional safety technology.
For applications with very low axial and radial play at low dynamics.

Scope of delivery
- Torque support (stainless steel)
- 3 screws M3x6 for mounting to the encoder

Connection to the application (not included in delivery)
- 1 torque pin 8.0010.4049.0075
8.0010.4051.00FS
Mechanical CAD / STEP
8.0010.4051.00FS
Operation Manual
8.0010.4051.00FS - Accessories torque stop, rigid (FS)

Stator coupling (FS)

Stator coupling (FS)

For hollow shaft encoders
with flange ø 58 mm
Mounting radius 31.5 mm
Designed for functional safety technology by 4-screw principle.

Scope of delivery
- Stator coupling (stainless steel)
- 4 screws M3x6 for mounting to the encoder

Connection to application (not included in delivery)
- 4 screws

8.0010.40B2.00FS
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.40B2.00FS
Operation Manual
Supplement to stator coupling operating instructions (FS)

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
2 x 2 x 0,34 mm2
05.00.6031.4411.XXXM

Data sheet
M12 cable satez, PUR, pin, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± 0,2 mm
2 x 2 x 0,34 mm2
05.00.6031.4511.XXXM

Data sheet
M12 cordset, PUR, male, angled, 4-pin, D-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin
05.00.6031.4544.XXXM

Data sheet
M12 cordset, PUR, male straight - angled, 4-pin, D-coded
DE EN FR

RJ45 Connector with cable ,  Ethernet cable

RJ45 Connector with cable , Ethernet cable

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 8-pin

Male connector 4-pin PUR Ø 6,5 mm ± mm
4 x 0,34 mm2
05.00.6031.7444.XXXM

Data sheet
Cordset RJ45 connector + M12 pin, 4-pin, D-coded, PUR cable, Profibus
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
1 x 4 x AWG22 mm2
05.00.6031.G411.XXXM

Data sheet
M12, PUR, male, 4-pin, D-coded, stainless steel + open 05.00.6031.G411
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin

Male connector 4-pin PUR Ø 6,5 mm ± mm
1 x 4 x AWG22 mm2
05.00.6031.G4G4.XXXM

Data sheet
M12, PUR, male, 4-pin, D-coded, stainless steel
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin PUR Ø 6,5 mm ± mm
1 x 4 x AWG22 mm2
05.00.6031.G511.XXXM

Data sheet
M12, PUR, male angled, 4-pin, D-coded, stainless steel
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 5,2 mm ± mm
4x0,34 mm2
05.00.6061.6211.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Male connector 4-pin PUR Ø 5,2 mm ± mm
4x0,34 mm2
05.00.6061.6311.xxxM

Data sheet
M12 cordset, PUR, socket, angled, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin

Male connector 4-pin PUR Ø 5,2 mm ± mm
4 x 0,34 mm2
05.00.6061.6462.XXXM

Data sheet
M12 cordset, PUR, socket, 4-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin PUR Ø 5,2 mm ± mm
4 x 0,34 mm2
05.00.6061.D211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 4-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

IO-Link
Power supply
Female connector 4-pin PUR Ø 5,2 mm ± mm
4 x 0,34 mm2
05.00.6061.D311.XXXM

Data sheet
M12, PUR, socket, 4-pin, A-coded, stainless steel
DE EN FR

M12 Connector with cable ,  mit Edelstahl Überwurf

M12 Connector with cable , mit Edelstahl Überwurf

Preassembled cable set

IO-Link
Power supply
Male connector 4-pin

Female connector 4-pin PUR Ø 5,2 mm ± mm
4 x 0,34 mm2
05.00.6061.D4D2.XXXM

Data sheet
M12, PUR, socket, 4-pin, A-coded, stainless steel + pin 05.00.6061.D4D2
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8141-0

Data sheet
M12 socket, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
IO-Link
Power supply
Female connector 4-pin
05.B8241-0

Data sheet
M12 socket, angled, 4-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
05.WASCSY4S

Data sheet
M12 pin, 4-pole, D-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 5-pin
8.0000.5121.0000.Ex

Data sheet
M12 pin, Ex 2/22, 5-pin, D-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

EtherNet/IP
EtherCAT
PROFINET IO
Male connector 4-pin
8.0000.5128.0000

Data sheet
M12 male, angled, 4-pin, D-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
8.0000.5136.0000.Ex

Data sheet
M12 socket, Ex 1/21 + Ex 2/22, 8-pin, A-coded
DE EN FR

„Do you have technical questions about Kübler encoders or are you looking for individual solutions? We at Application Support are here for you.“

Bernd Issler
Application support
Bernd Issler
Application Engineer

support@kuebler.com
+49 7720 3903 849

„We will be pleased to give you information about prices and delivery times. We are looking forward to your inquiry.“

Fritz Kübler GmbH
Sales
Fritz Kübler GmbH
Sales Germany

info@kuebler.com
+49 7720 3903 871
+49 7720 21564
