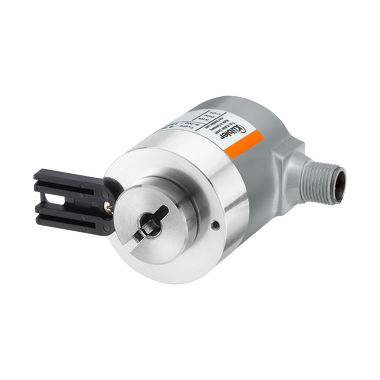

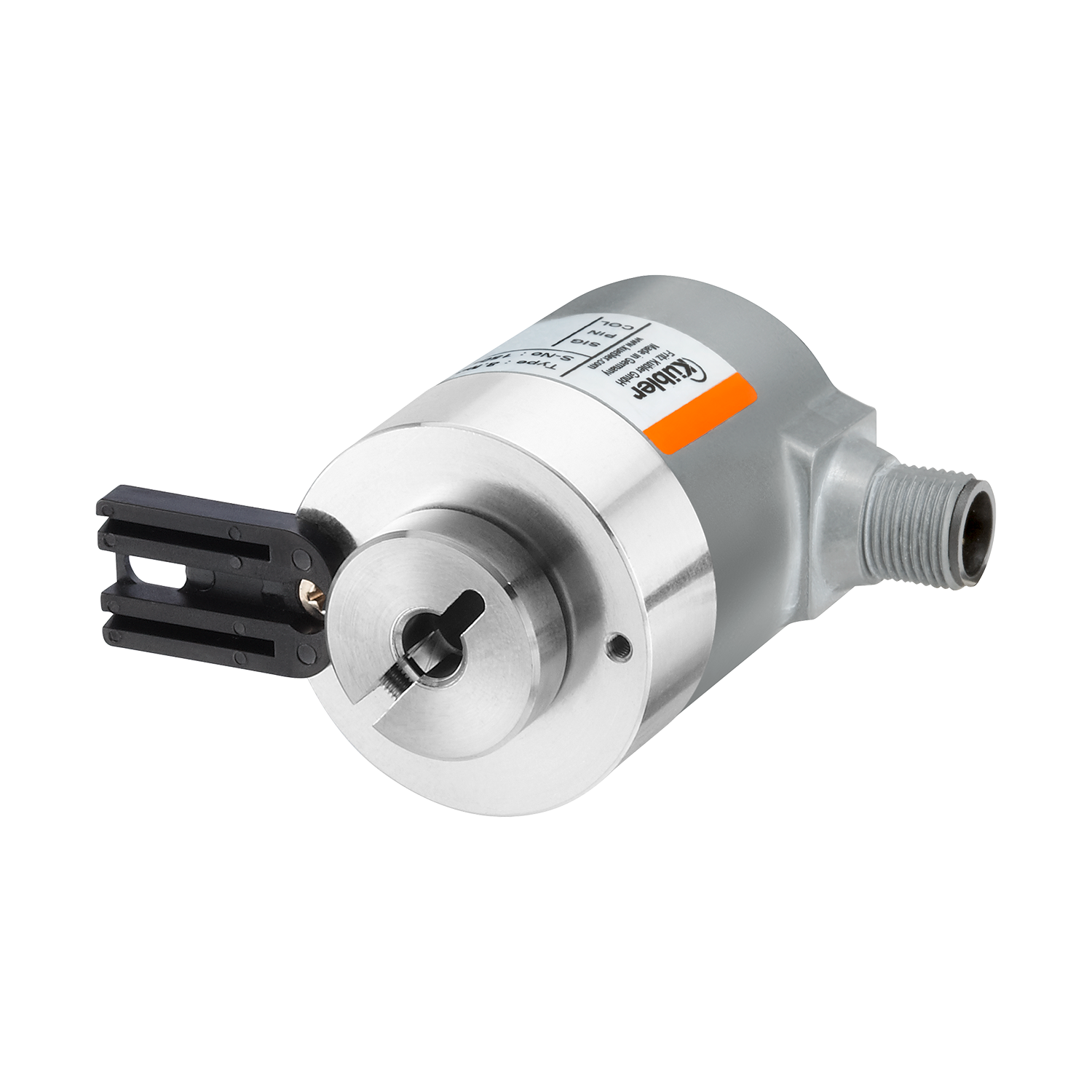

Sendix M3673A
|
|
Magnetic singleturn encoder with SSI interface.
The Sendix M36 is a magnetic singleturn encoder in compact design.It is characterized by robustness, reliability and cost-efficiency.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm hollow shaft, blind hole 8 mm hollow shaft, blind hole 10 mm hollow shaft, blind hole 1/4 " hollow shaft, blind hole |
| Flange type |
Spring element, long Stator coupling Ø 36.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Axial cable Radial cable M12 connector axial M12 connector radial |
| Max. rotational speed |
6.000 min-1 |
| Weight | 210 g |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Power supply |
10...30 V DC |
| Interfaces |
SSI, binär SSI, gray |
Reliable and insensitive
- Sturdy bearing construction in Safety-Lock™ design for resistance against vibration and installation errors.
- Reduced number of components ensures magnetic insensitivity.
-
IP67 protection and wide temperature range -40 °C ... +85 °C .
- Angular measurement deviation ±0,5°.
- Repeat accuracy ±0.2°.
- Short control cycles, clock frequency with SSI up to 2 MHz.
-
Max. resolution 14 bit.
Accessories
Stator coupling, double-winged
For hollow shaft encoders
with flange ø 36 ... 37 mm
Mounting radius 23 mm
For front mounting on the encoder flange. For applications with axial and radial play at high dynamics.
Scope of delivery
- Stator coupling (stainless steel)
- 2 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 2 screws
| 8.0010.4C00.0000 |
Spring element, short
For hollow shaft encoderswith flange ø 36 ... 58 mm
Mounting radius 16 ... 27 mm
For applications with limited axial play at low dynamics and limited installation space.
Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
| 8.0010.4H00.0000 |
Spring element, long
For hollow shaft encoderswith flange ø 36 ... 58 mm
Mounting radius 30.7 ... 36.7 mm
For applications with high axial play, at low dynamics.
Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
| 8.0010.4I00.0000 |
