360 Sendix M3668 Sendix M3668 Sendix M3668
Sendix M3668 Sendix M3668 Sendix M3668

Encoders Absolute multiturn

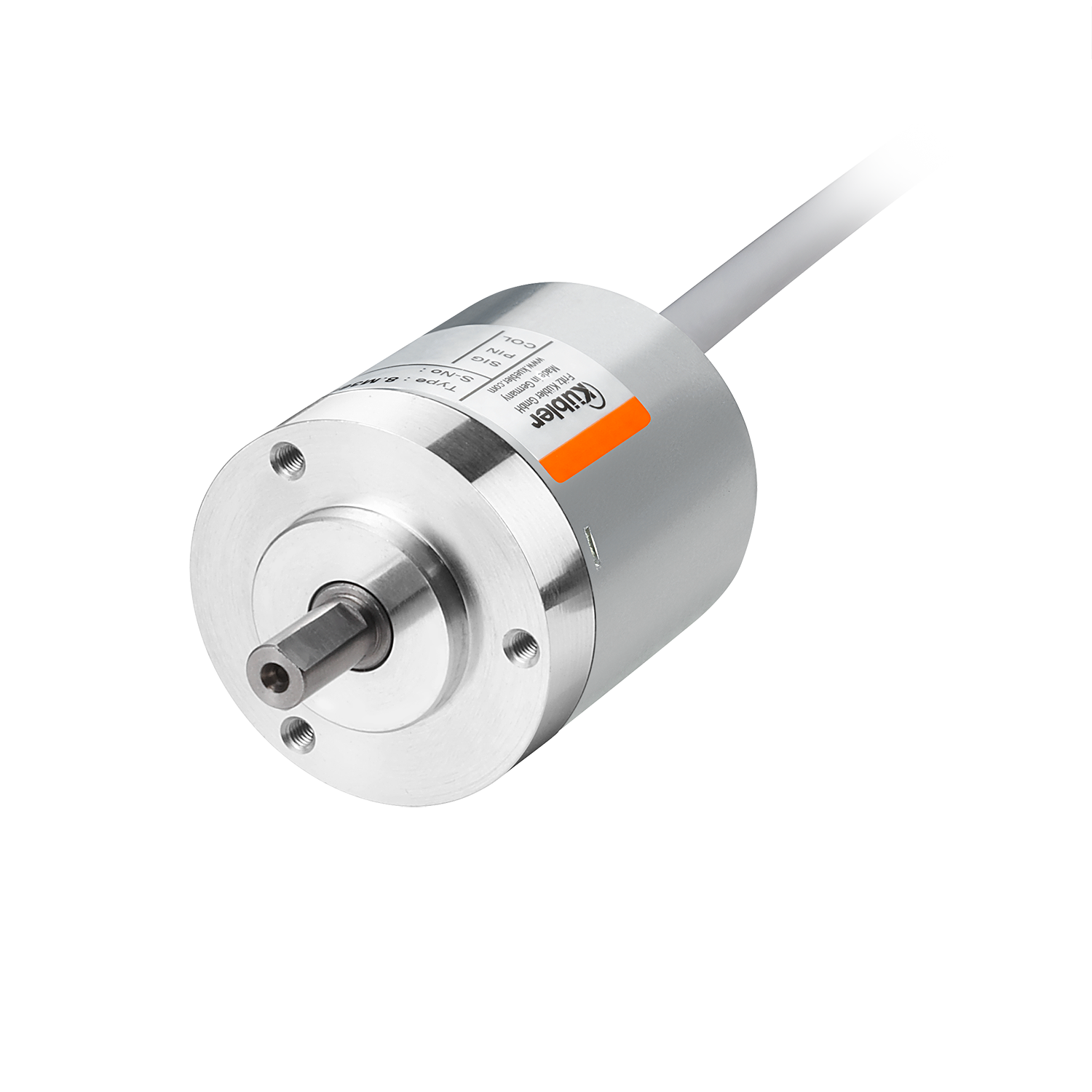

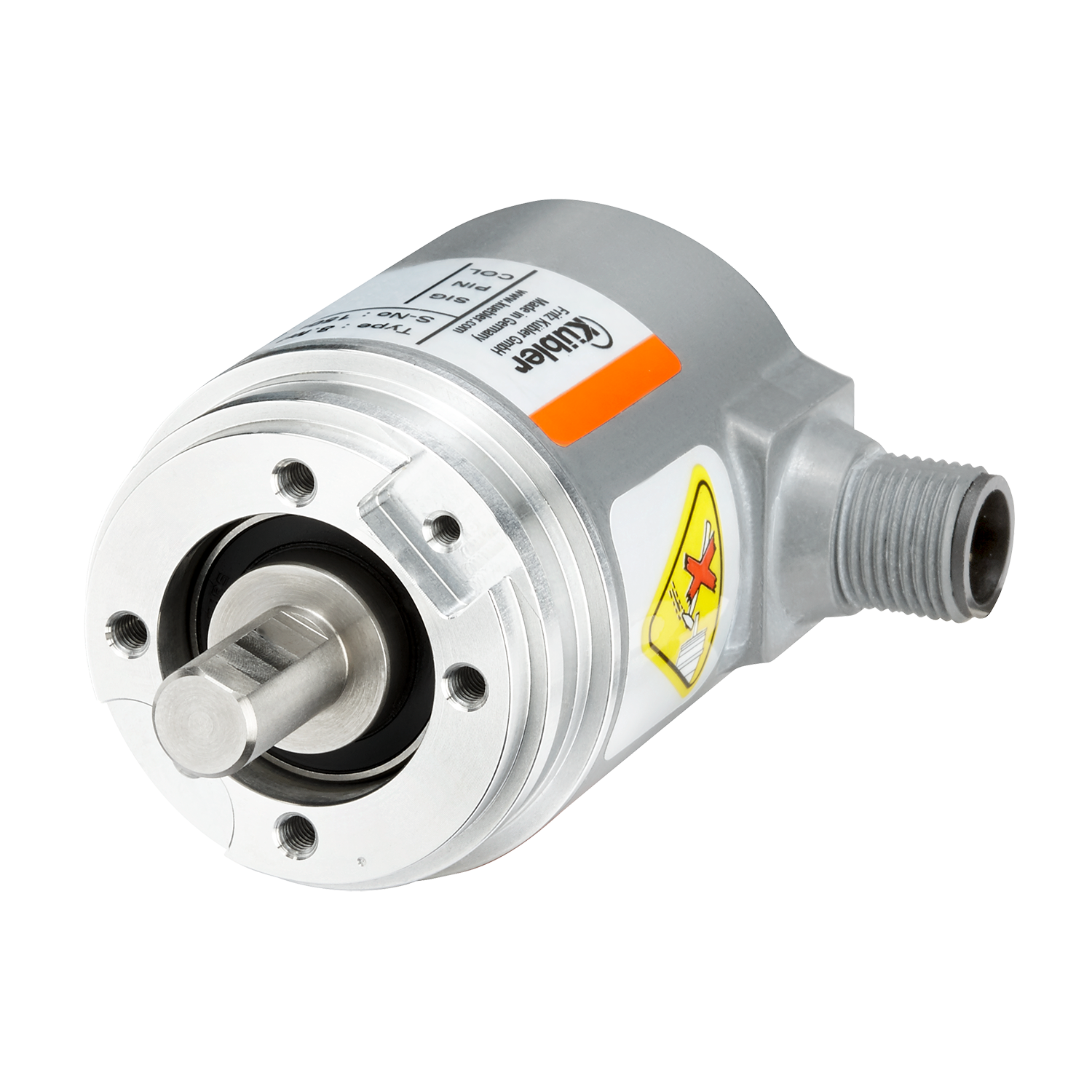

Sendix M3668

  • Resistant
  • Wear-free
  • Magnetic – robust
  • Dimension Ø 36 mm
  • 14 bits singleturn
  • 29 bits multiturn
  • Max 10 mm shaft, with flat surface
  • Max 1/4" shaft, with flat surface
CANopen

Energy Harvesting Technology: Electronic multiturn encoders.

The Sendix M36 with Energy Harvesting Technology is an electronic multiturn encoder in a compact design, without gear and without battery.
It is characterized by robustness, reliability and cost-efficiency.

Mechanical
Dimension Ø 36 mm
Shaft type 6 mm shaft, with flat surface
8 mm shaft, with flat surface
10 mm shaft, with flat surface
1/4 " shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange

Ø 36.00 mm
Working temperature -40 °C ... +85 °C
Protection level IP65
IP67
Connection types Axial cable
Radial cable
M12 connector axial
M12 connector radial
Max. rotational speed 6.000 min-1
Weight 210 g
Electrical
Scanning magnetic
Resolution max. 14 bits singleturn
29 bits multiturn
Power supply 10...30 V DC
Interfaces CANopen
Reliable and insensitive
  • Sturdy bearing construction in Safety-Lock™ design for resistance against vibration and installation errors.
  • Reduced number of components ensures insensitivity.
  • IP67 protection and wide temperature range from -40°C to +85°C.
  • Without gear and without battery, thanks to the Energy Harvesting technology.
Up-to-the-minute fieldbus performance
  • LSS services for configuration of the node address and baud rate.
  • Variable PDO mapping in the memory.
  • Universal scaling function.
  • Configuration management (bootloader).
Data sheet

Sendix M3668 / M3688 CANopen

PDF ∼ 652,2 KB | 07.2024
DE
EN
FR
Operation Manual

Operating manual for encoders with ATEX 2/22

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 3,6 MB | 05.2023

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Manual

Encoder with CANopen interface

PDF ∼ 7,3 MB | 07.2024
DE
EN
Safety characteristics

Sendix M3668 MTTFd

Multilingual: German, English
PDF ∼ 215,3 KB | 06.2019

Sistema-Library

Multilingual: German, English, French
ZIP ∼ 6,3 MB | 07.2023

Declaration of conformity

Sendix M3668 / M3668R / M3688 / M5868 CANopen, SAE J1939 CE

PDF ∼ 63,1 KB | 10.2021
DE
EN
Device file

Sendix M36x8 MT CANopen

ZIP ∼ 13,8 KB | 05.2021

Sendix M36xx J1939

ZIP ∼ 13,8 KB | 06.2019

Mechanical CAD / STEP

Sendix M366X

ZIP ∼ 6,7 MB | 05.2020

Electronic CAD / ePlan

Sendix M3668 / M3688 CANopen

ZIP ∼ 4,7 MB | 02.2020

Sendix M3668R CANopen

ZIP ∼ 2,0 MB | 02.2020

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Sendix M36xx / M58xx - E1

PDF ∼ 153,6 KB | 01.2022
DE

Salt spray test ManufacturersDeclaration

PDF ∼ 39,6 KB | 05.2023
DE
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1102.0606
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
Bellows and spring washer couplings

Fastening eccentrics

Fastening eccentrics

For shaft encoders with synchro flange ø 36 mm

Scope of delivery
- 3 eccentric
- 3 screws
8.0010.4200.0000
Data sheet
Accessories shaft encoders
DE EN FR
Mechanical CAD / STEP
8.0010.4200.0000

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6021.E211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A311.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, end open, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A4A2.XXXM

Data sheet
M12 cable set, PVC, socket, 5-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A5A3.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, male, angled, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin Ø 5,6 mm ± 0,2 mm
5 x 0,34 mm2
05.00.60F1.A2A4.0xxM

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8251-0/9

Data sheet
M12 socket, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,  T-Connector

M12 Connector , T-Connector

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.FKM5-FKM5-FSM5

Mechanical CAD / STEP
05-WAKS5-WAKS5-WASS5
Data sheet
M12 T-distributor, 5-pole
DE EN FR

M12 Connector ,  T-Connector

M12 Connector , T-Connector

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Male connector 5-pin
05.WAKS5-WAKS5-WASS5

Data sheet
M12 T-distributor shielded, 5-pole
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000.Ex

Data sheet
M12 socket, Ex 2/22, 5-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 5-pin, A-coded
DE EN FR
