Encoders Absolute singleturn

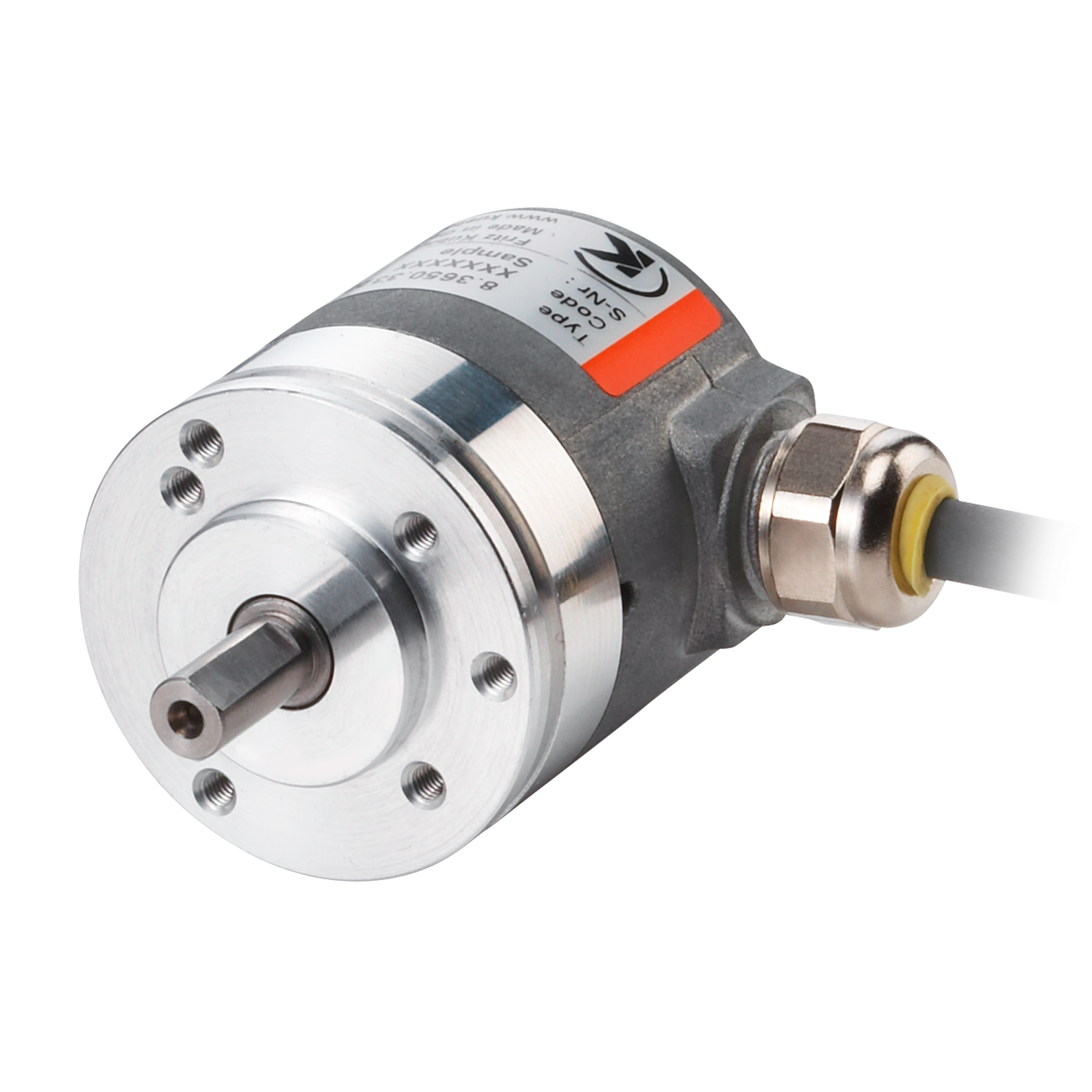

Sendix M3658
|
|
Product is discontinued
A new / comparable product is available for this product.
For challenging outdoor uses. Extremely robust encoders.
The absolute encoders Singleturn Sendix M3658 / M3678 with SAE J1939 interface support all common requirements of the special protocol for commercial vehicles and make a significant contribution to comprehensive system diagnostics or fast fault localization. The encoders can be put into operation quickly and error-free without having to set any switches; the addresses are assigned automatically by Address Claiming (ACL).
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm shaft, with flat surface 8 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Ø 36.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP67 IP69k |
| Connection types |
Radial cable M12 connector radial |
| Max. rotational speed |
6.000 min-1 |
| Weight | 200 g |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. |
14 bits singleturn |
| Power supply |
8...30 V DC |
| Interfaces |
SAE J1939 |
Secure technology
- Increased resistance to vibration and installation errors.
- Robust bearing construction in Safety Lockplus™ design.
- Sturdy die-cast housing and protection up to IP69k.
- Latest field bus performance in the application: SAE J1939 with CAN high-speed according to ISO 11898.
- Quick recognition of the operating status by two-color LED.
- Fast and error-free commissioning without setting switches with automatic address assignment (ACL).
