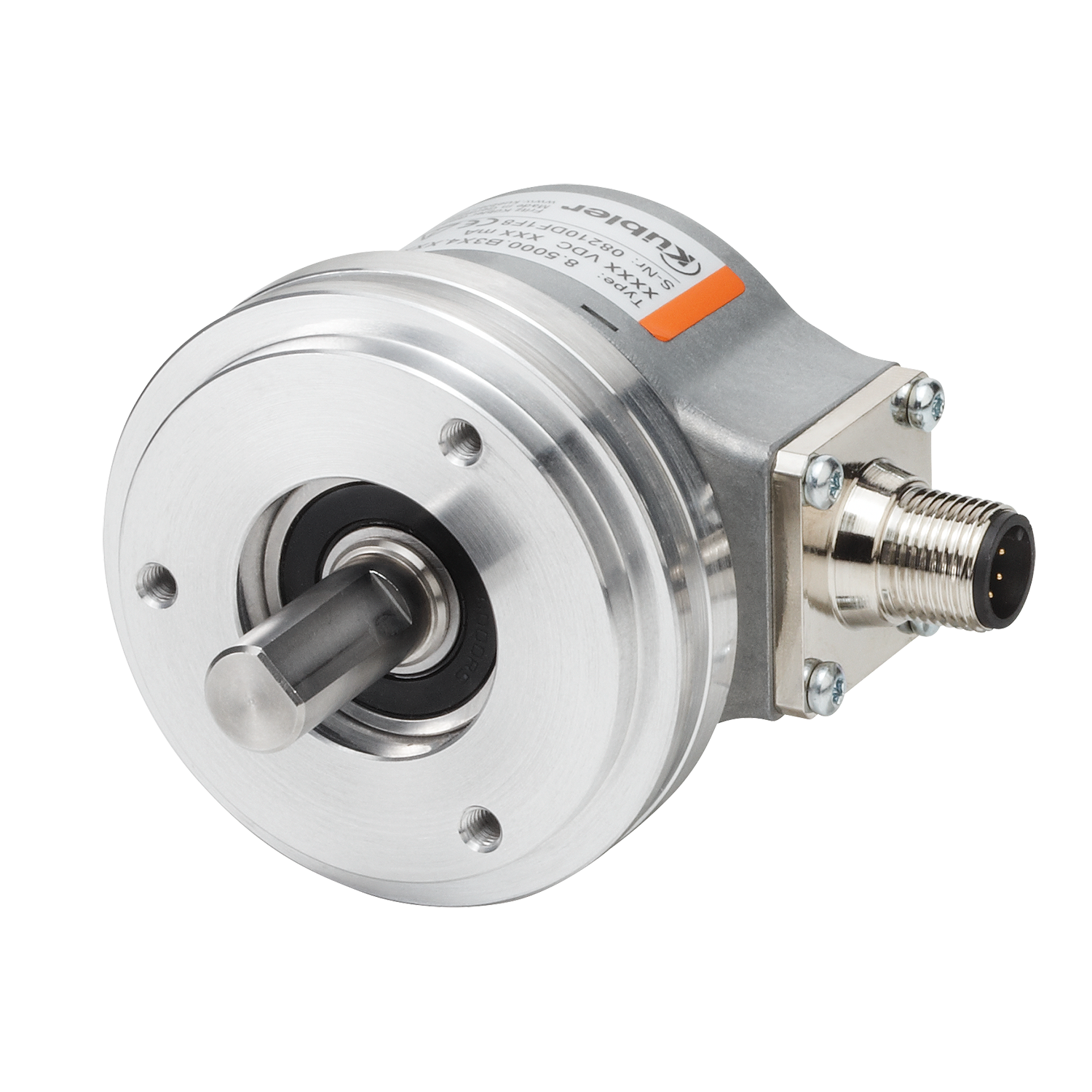

360 Sendix KIS50
Sendix KIS50

Encoders Incremental

Sendix KIS50

  • Economical
  • Ideal for simple machines
  • Robust bearing structure
  • Dimension Ø 58 mm
  • 5.000 ppr incremental
  • Max 12 mm shaft, with flat surface
Push-pull
TTL / RS422
Open Collector

The economical sensor solution.

The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines.

Mechanical
Dimension Ø 58 mm
Shaft type 6 mm shaft, with flat surface
8 mm shaft, with flat surface
10 mm shaft, with flat surface
12 mm shaft, with flat surface
Flange type Synchro flange / Servo flange
Clamping flange

Ø 58.00 mm
Working temperature -20 °C ... +70 °C
Protection level IP65
Connection types Axial cable
Radial cable
M23 connector axial
M23 connector radial
M12 connector axial
M12 connector radial
Max. rotational speed 6.000 min-1
Weight 400 g
Electrical
Scanning optical
Resolution max. 5.000 ppr incremental
Power supply 5 V DC
5...30 V DC
10...30 V DC
Interfaces Gegentakt
TTL / RS422
Open Collector
Robust
  • Resistant zinc pressure die-cast housing and protection up to IP65.
  • Wide temperature range from -20°C to +70°C.
  • Prevent machine downtime thanks to robust bearing construction in "Safety-Lock™ Design".
Flexible
  • Suitable connection variants for each specific case: Cable connection, M12 connectors and M23 connectors.
  • Versatile mounting options.
  • Up to 5000 pulses per revolution.
Data sheet

Sendix KIS50 / KIH50

PDF ∼ 1,8 MB | 11.2023
DE
EN
US
FR
Operation Manual

Operation manual for encoders

Multilingual: German, English, French
PDF ∼ 2,9 MB | 09.2022

Safety characteristics

Sendix KIS50 MTTFd

Multilingual: German, English
PDF ∼ 156,9 KB | 06.2019

Declaration of conformity

Sendix KIS50 / KIH50 CE

Multilingual: German, English, French
PDF ∼ 68,7 KB | 05.2023

Mechanical CAD / STEP

Sendix KIS50

ZIP ∼ 5,2 MB | 12.2015

Electronic CAD / ePlan

Sendix KIS50 / KIH50

ZIP ∼ 3,4 MB | 02.2020

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1202.XXXX
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
8.0000.1202.XXXX

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PUR Ø 4,7 mm ± 0,2 mm
4 x 0,34 mm2
05.00.6021.E211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8211.XXXM

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 6,7 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6041.8311.XXXM

Data sheet
M12 cordset, PVC, female 8-pin, A-coded, angled, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable , 05.00.6051.8284.XXXM

M12 Connector with cable , 05.00.6051.8284.XXXM

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
Open Collector
SSI
BiSS
Female connector 8-pin

Male connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8284.XXXM

Data sheet
M12 cordset, PUR, socket 8-pin, A-coded + pin
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.8311.XXXM

Data sheet
M12 cordset, PUR, socket, angled, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,3 mm ± 0,2 mm
8 x 0,25 mm2
05.00.6051.F211.XXXM

Data sheet
M12 cordset, PUR, socket, V4A, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 5,5 mm ± 0,2 mm
5 x 0,25 mm2
05.00.6081.2211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A211.XXXM

Data sheet
M12 cordset, PVC, socket, 5-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A311.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, end open, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A4A2.XXXM

Data sheet
M12 cable set, PVC, socket, 5-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
CANopen-Lift
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm
3 x 2 x 0,25 mm2
05.00.6091.A5A3.XXXM

Data sheet
M12 cordset, PVC, female, angled, 5-pin, A-coded, male, angled, CANopen
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PUR Ø 6,2 mm ± 0,2 mm
4 x 2 x 0,25 mm2
05.00.60E1.8211.XXXM

Data sheet
M12 cordset, PUR, socket, 8-pin, A-coded, open end
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

CANopen
SAE J1939
Modbus
Female connector 5-pin

Male connector 5-pin Ø 5,6 mm ± 0,2 mm
5 x 0,34 mm2
05.00.60F1.A2A4.0xxM

Data sheet
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8151-0/9

Data sheet
M12 socket, 5-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
05.B-8251-0/9

Data sheet
M12 socket, angled, 5-pin, A-coded
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
05.CMB 8181-0

Data sheet
M12 socket, 8-pin, A-coded
DE EN FR

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin PVC Ø 7,2 mm ± 0,2 mm
8 x 0,205 mm2
05.E-WKC 8T-PX3-930-XXXX

Data sheet
M12 cordset, PVC, socket, 8-pin, A-coded, angled, with integrated control LEDs, open end
DE EN FR

M23 Connector ,

M23 Connector ,

Field-wireable connector

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin
8.0000.5012.0000

Data sheet
M23 connector, socket, 12-pin, counting direction cw
DE EN FR

M23 Connector ,

M23 Connector ,

Field-wireable connector

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin
8.0000.5017.0000

Data sheet
DE EN FR

MIL Connector ,

MIL Connector ,

Field-wireable connector

HTL
TTL / RS422
Female connector 7-pin
8.0000.5052.0000

Data sheet
MIL connector, socket, 7-pin
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000

Data sheet
M12 socket, 5-pin, A-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
IO-Link
Power supply
Female connector 5-pin
8.0000.5116.0000.Ex

Data sheet
M12 socket, Ex 2/22, 5-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

CANopen
CANopen-Lift
SAE J1939
Modbus
Power supply
Female connector 5-pin
8.0000.5116.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 5-pin, A-coded
DE EN FR

M12 Connector , for the Ex-area

M12 Connector , for the Ex-area

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
8.0000.5136.0000.Ex

Data sheet
M12 socket, Ex 1/21 + Ex 2/22, 8-pin, A-coded
DE EN FR

M12 Connector ,  Stainless steel V4A

M12 Connector , Stainless steel V4A

Field-wireable connector

Analog ±10 V
HTL
TTL / RS422
SinCos
Open Collector
SSI
BiSS
Female connector 8-pin
8.0000.5136.0000.V4A

Data sheet
M12 socket, stainless steel V4A, 8-pin, A-coded
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PVC Ø 6,7 mm ± 0,3 mm
12 x 0,14 mm2
8.0000.6201.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6901.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin

Male connector 12-pin PVC Ø 7,3 mm ± 0,2 mm
6 x 2 x 0,14 mm2
8.0000.6905.XXXX

Data sheet
M23 cable set, PVC, socket, 12-pin, counting direction cw + pin, counting direction ccw
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin TPE Ø 8,5 mm ± 0,9 mm
5 x 2 x0,14 mm2
8.0000.6E01.XXXX

Data sheet
M23 Cordset, PE-X, female, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J01.00xx.0043

Data sheet
M23 cable set, PUR, socket, 12-pin, counting direction cw, open end
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J01.00XX.0051

Data sheet
M23 cable set, PUR, socket, 12-pin, counting direction cw, end open
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

HTL
TTL / RS422
SinCos
Open Collector
SSI
SSI + 2048 ppr SinCos
SSI + 2048 ppr RS422
BiSS
BiSS + 2048 ppr SinCos
BiSS + 2048 ppr RS422
Female connector 12-pin PUR Ø 6,7 mm ± 0,3 mm
10 x 0,14 mm2
8.0000.6J07.00xx.0043

Data sheet
DE EN FR

„Do you have technical questions about Kübler encoders or are you looking for individual solutions? We at Application Support are here for you.“

Rainer Grueninger
Application support
Rainer Grueninger
Application Engineer

support@kuebler.com
+49 7720 3903 849

„We will be pleased to give you information about prices and delivery times. We are looking forward to your inquiry.“

Fritz Kübler GmbH
Sales
Fritz Kübler GmbH
Sales Germany

info@kuebler.com
+49 7720 3903 871
+49 7720 21564
