360 Sendix KIH50 Sendix KIH50
Sendix KIH50 Sendix KIH50

Encoders Incremental

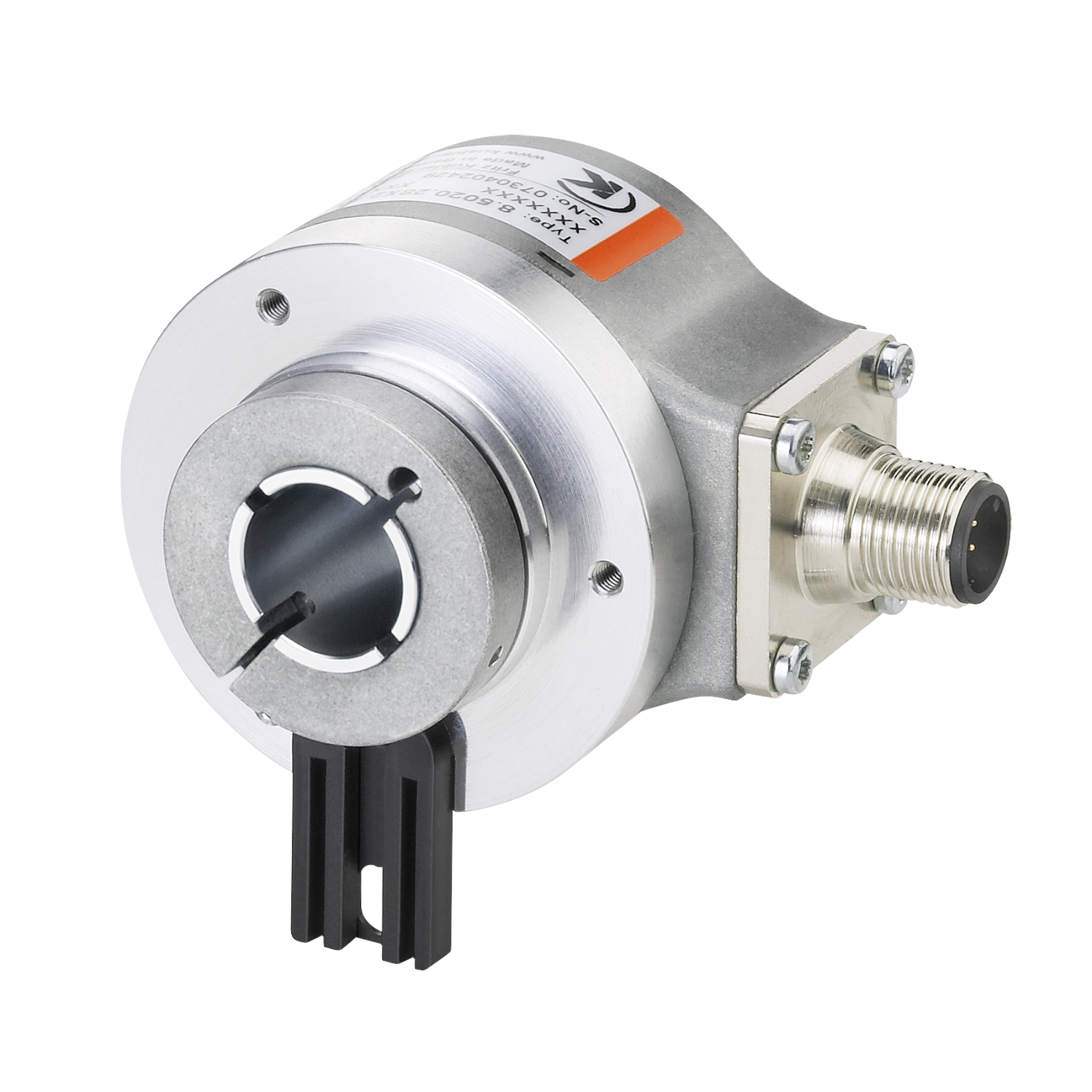

Sendix KIH50

  • Economical
  • Ideal for simple machines
  • Robust bearing structure
  • Dimension Ø 50 mm
  • 5.000 ppr incremental
  • Max 15 mm hollow shaft, through
Push-pull
TTL / RS422
Open Collector

The economical sensor solution.

The Sendix KIS50 / KIH50 incremental standard encoders with optical sensors are designed for highest economic efficiency and are available up to a resolution of 5000 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a high resistance to vibration and installation error. It sets new standards in cost-sensitive applications. They are ideal for standard applications and for use in simple machines.

Mechanical
Dimension Ø 50 mm
Shaft type 8 mm hollow shaft, through
10 mm hollow shaft, through
12 mm hollow shaft, through
14 mm hollow shaft, through
15 mm hollow shaft, through
Flange type Ø 50.80 mm
Ø 63.00 mm
Ø 65.00 mm
Working temperature -20 °C ... +70 °C
Protection level IP65
Connection types Radial cable
Tangential cable
M23 connector radial
M12 connector radial
Max. rotational speed 6.000 min-1
Weight 170 g
Electrical
Scanning optical
Resolution max. 5.000 ppr incremental
Supply voltage 5 V DC
5...30 V DC
10...30 V DC
Interfaces Push-pull
TTL / RS422
Open Collector
Robust
  • Resistant zinc pressure die-cast housing and protection up to IP65.
  • Wide temperature range from -20°C to +70°C.
  • Prevent machine downtime thanks to robust bearing construction in "Safety-Lock™ Design".
Flexible
  • Suitable connection variants for each specific case: Cable connection, M12 connectors and M23 connectors.
  • Versatile mounting options.
  • Up to 5000 pulses per revolution.
Data sheet

Sendix KIS50 / KIH50

PDF ∼ 1,1 MB | 02.2021
DE
EN
US
FR
Operation Manual

General operating instructions

Multilingual: German, English, French
PDF ∼ 2,7 MB | 03.2021

Safety characteristics

Sendix KIH50 MTTFd

Multilingual: German, English
PDF ∼ 156,8 KB | 06.2019

Declaration of conformity

Sendix KIS50 / KIH50

Multilingual: German, English, French
PDF ∼ 383,4 KB | 04.2016

mechanical CAD / STEP

Sendix KIH50

ZIP ∼ 5,5 MB | 12.2015

electronic CAD / ePlan

Sendix KIS50 / KIH50

ZIP ∼ 3,4 MB | 02.2020

Product Certificates

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
Ø 19mm 8.0000.1102.XXXX
Ø 15mm 8.0000.1202.XXXX
Ø 25mm 8.0000.1502.XXXX
Data sheet
8.000xxxxx Accessories coupling
DE EN FR
mechanical CAD / STEP
8.0000.1102.XXXX Accessories Bellow coupling

Fastening arm, medium (flexible)

Fastening arm, medium (flexible)

For applications with axial play and radial play with constant rotational movements.

Torque brackets (stainless steel), 3 screws for mounting on the encoder.
8.0010.40E0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.40E0.0000

Stator coupling

Stator coupling

For applications with axial and radial clearance and high dynamics.
Stator coupling (stainless steel), 4 screws for mounting on the encoder.

8.0010.40L0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.40L0.0000 / CAD

Fastening arm, short (flexible)

Fastening arm, short (flexible)

For applications with axial play and radial play with low dynamics.
Torque brackets (stainless steel), 3 screws for mounting on the encoder.
8.0010.40M0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.40M0.0000

Spring tether element

Spring tether element

For applications with low radial and axial backlash and low dynamics.
Wire spring element, 1 screw for fastening to the encoder.
8.0010.40W0.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Cylindrical pin, long with fastening thread

Cylindrical pin, long with fastening thread

Suitable for short spring element (8.0010.4H00.0000) and long spring element (8.0010.4I00.0000).
8.0010.4700.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR

Spring element, short

Spring element, short

For applications with limited axial play, low dynamics, and limited installation space:
Spring element (plastic), 1 screw for fastening to the encoder.
8.0010.4H00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4H00.0000 Accessories spring element, short

Spring element, long

Spring element, long

For applications with high axial backlash and low dynamics:
Spring element (plastic), 1 screw for fastening to the encoder.
8.0010.4I00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4I00.0000

Fastening arm, long, (flexible)

Fastening arm, long, (flexible)

For applications with axial play and radial play with low dynamics:
Torque brackets (stainless steel), 3 screws for mounting on the encoder.
8.0010.4R00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
mechanical CAD / STEP
8.0010.4R00.0000

Cables and connectors

M12 Connector with cable ,

M12 Connector with cable ,

Preassembled cable set

Analog 0.5–4.5 V
Push-pull
TTL / RS422
SinCos
SSI, binary
BiSS
Female connector 8-pin
05.00.6041.8211.XXXM

Data sheet
M12-Kabelsatz-PVC_Buchse-8-pol-A+offen_05.00.6041.8211.002M
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Female connector 8-pin
05.CMB 8181-0

Data sheet
M12_Buchse_8-polig-A_05.CMB_8181-0
DE EN FR

M12 Connector ,

M12 Connector ,

Field-wireable connector

Male connector 8-pin
05.CMBS 8181-0

Data sheet
M12_Stift_8-polig-A_05.CMBS-8181-0
DE EN FR

M23 Connector ,

M23 Connector ,

Field-wireable connector

Female connector 12-pin
8.0000.5012.0000

Data sheet
M23_Buchse_12-polig-cw_8.0000.5012.0000
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

Push-pull
TTL / RS422
SinCos
Open Collector
SSI + 2048 ppr SinCos
BiSS
Female connector 12-pin
8.0000.6101.XXXX

Data sheet
M23_Kabelsatz-PUR_Buchse_12-polig-cw+offen_8.0000.6101.00xx
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

Push-pull
TTL / RS422
SinCos
Open Collector
Female connector 12-pin
8.0000.6901.XXXX

Data sheet
M23_Kabelsatz-PVC_Buchse_12-polig-cw+offen_8.0000.6901.00xx
DE EN FR

M23 Connector with cable ,

M23 Connector with cable ,

Preassembled cable set

Push-pull
TTL / RS422
SinCos
Open Collector
Female connector 12-pin TPE Ø 8,4 mm ± 0,4 mm
5x2x0,14 mm2
8.0000.6E01.XXXX

Data sheet
M23_Kabelsatz-PE-X_Buchse_12-polig-cw+offen_8.0000.6E01.00xx
DE EN FR
