Encoders Incremental

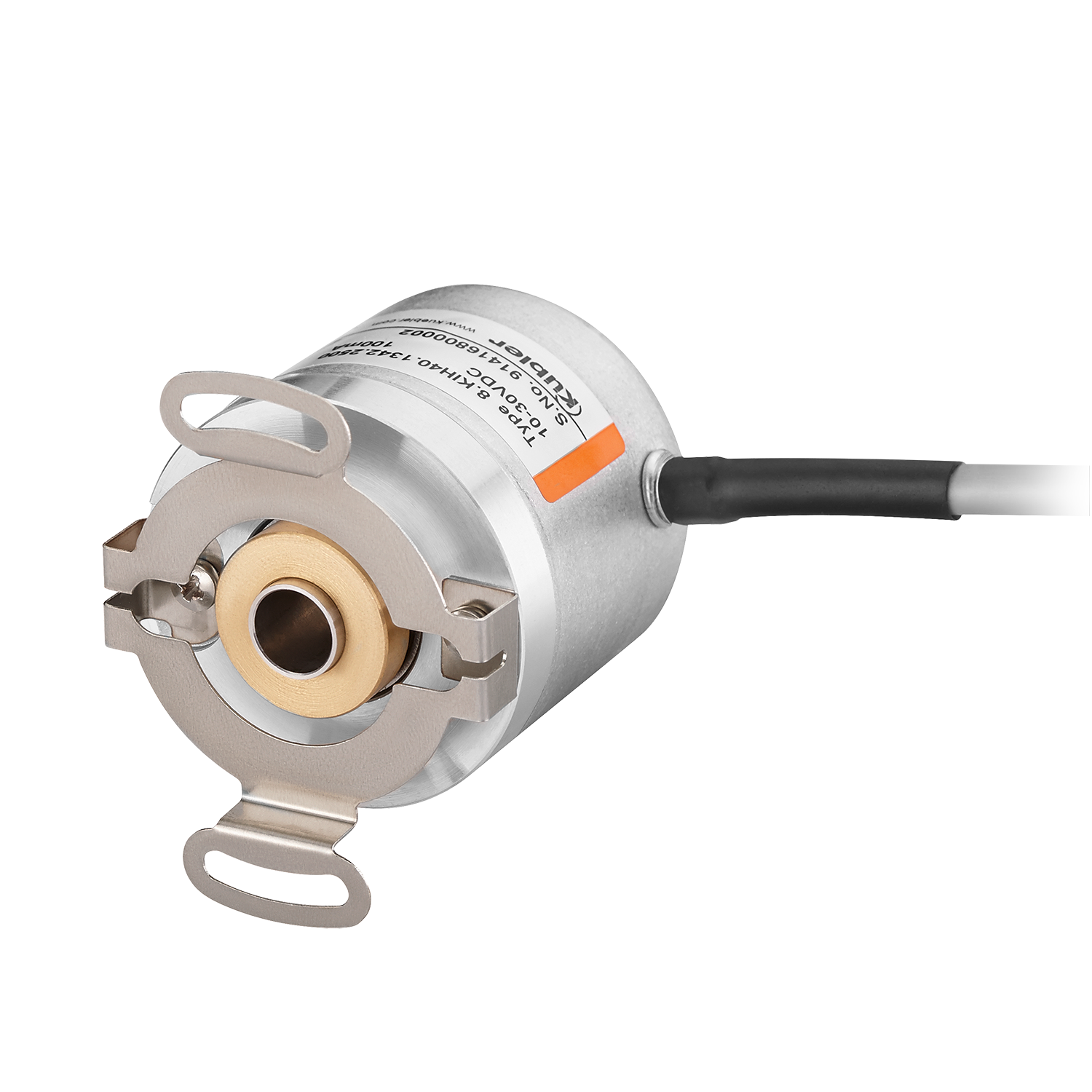

Sendix Base KIH40

  • Economical
  • For small devices and machines
  • Robust bearing structure
  • Dimension Ø 40 mm
  • 2.500 ppr incremental
  • Max 8 mm hollow shaft, blind hole
  • Max 1/4" hollow shaft, blind hole
Push-pull
TTL / RS422
Open Collector

The economical sensor solution.

The incremental encoders type Sendix Base KIS40 / KIH40 with optical sensor technology have been designed for highest costeffectiveness. They are available with a resolution of up to 2560 pulses per revolution. They are particularly suitable for tight mounting spaces and small machines and appliances.

Mechanical
Dimension Ø 40 mm
Shaft type 8 mm hollow shaft, blind hole
1/4 " hollow shaft, blind hole
Flange type Ø 40.00 mm
Ø 46.00 mm
Working temperature -20 °C ... +70 °C
Protection level IP64
Connection types Axial cable
Radial cable
Max. rotational speed 4.500 min-1
Weight 170 g
Electrical
Scanning optical
Resolution max. 2.500 ppr incremental
Power supply 5 V DC
5...30 V DC
10...30 V DC
Interfaces Gegentakt
TTL / RS422
Open Collector
Options
on request
  • Further impulse counters/resolutions
Compact and robust
  • Only 40 mm outer diameter.
  • Ideally suited for limited installation space.
  • Robust bearing design in safety Lock™ design.
  • Safe commissioning: Reverse polarity protection and short-circuit proof.
Flexible
  • Maximum resolution 2560 pulses per revolution.
  • Supply voltage 5 V DC or 10 to 30 V DC.
  • Push-pull, RS422 or Open collector.
  • Cable radial or axial.
Data sheet

Sendix KIS40 / KIH40

PDF ∼ 767,9 KB | 08.2024
DE
EN
US
FR
Operation Manual

Sendix Base KIS40 / KIH40

Multilingual: German, English, French
PDF ∼ 1,1 MB | 08.2022

Safety characteristics

Sendix KIH40 MTTFd

Multilingual: German, English
PDF ∼ 156,5 KB | 06.2019

Declaration of conformity

Sendix KIS40 / KIH40 CE

Multilingual: German, English, French
PDF ∼ 141,4 KB | 08.2022

Mechanical CAD / STEP

Sendix KIH40

ZIP ∼ 1,7 MB | 08.2023

Electronic CAD / ePlan

Sendix KIS40 / KIH40

ZIP ∼ 2,8 MB | 02.2020

Product Certificates

Encoder UL Canada

PDF ∼ 79,9 KB | 11.2019
EN

Encoder UL USA

PDF ∼ 78,2 KB | 11.2019
EN

Accessories

Bellows coupling

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).
8.0000.1202.XXXX
Data sheet
Bellows and spring washer couplings
DE EN FR
Mechanical CAD / STEP
8.0000.1202.XXXX

Stator coupling, double-winged

Stator coupling, double-winged

For hollow shaft encoders
with flange ø 36 ... 37 mm
Mounting radius 23 mm
For front mounting on the encoder flange. For applications with axial and radial play at high dynamics.

Scope of delivery
- Stator coupling (stainless steel)
- 2 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 2 screws

8.0010.4C00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4C00.0000

Spring element, short

Spring element, short

For hollow shaft encoders
with flange ø 36 ... 58 mm
Mounting radius 16 ... 27 mm
For applications with limited axial play at low dynamics and limited installation space.

Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder

Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
8.0010.4H00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4H00.0000

Spring element, long

Spring element, long

For hollow shaft encoders
with flange ø 36 ... 58 mm
Mounting radius 30.7 ... 36.7 mm
For applications with high axial play, at low dynamics.

Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder

Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
8.0010.4I00.0000
Data sheet
Accessories hollow shaft encoder
DE EN FR
Mechanical CAD / STEP
8.0010.4I00.0000
