Encoders Incremental

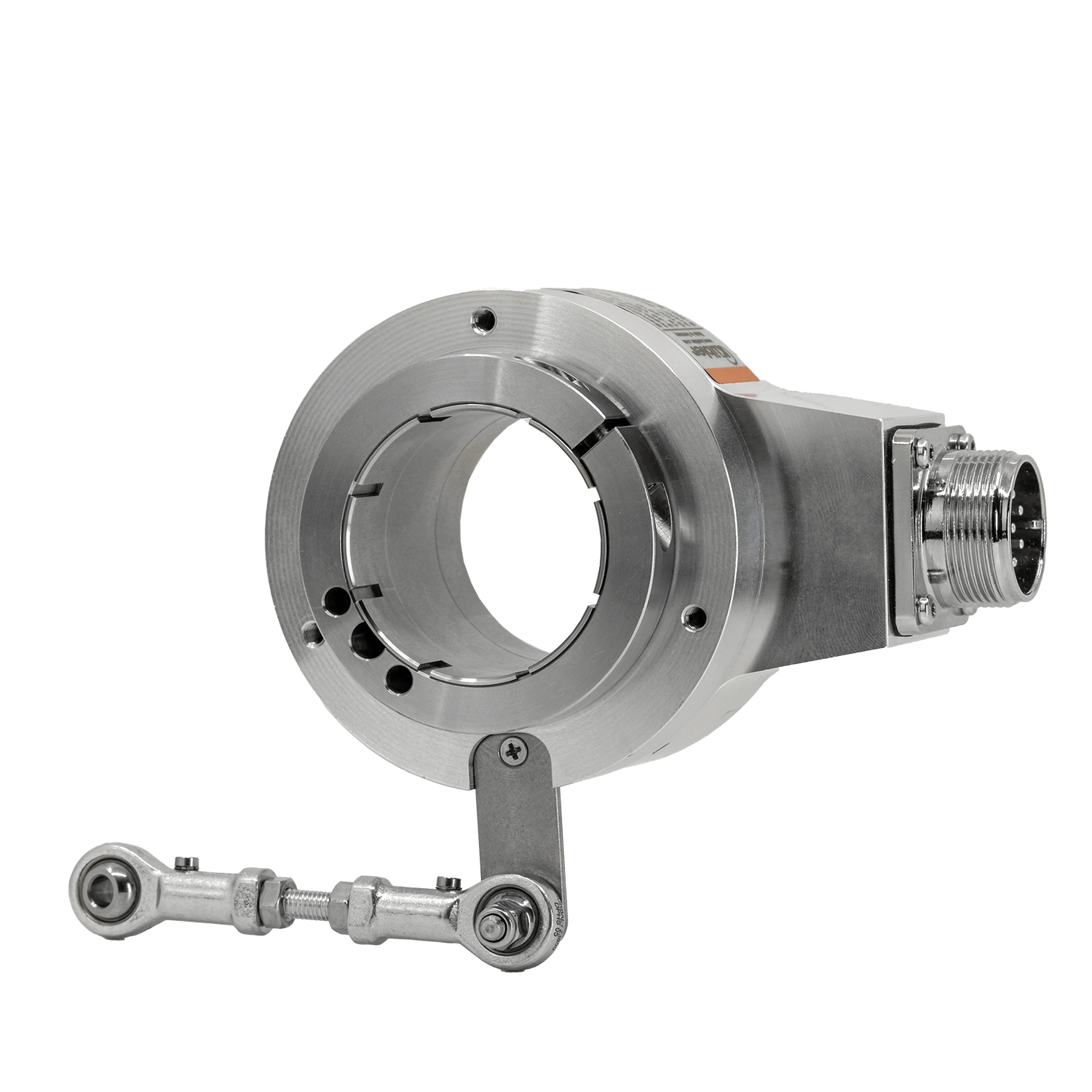

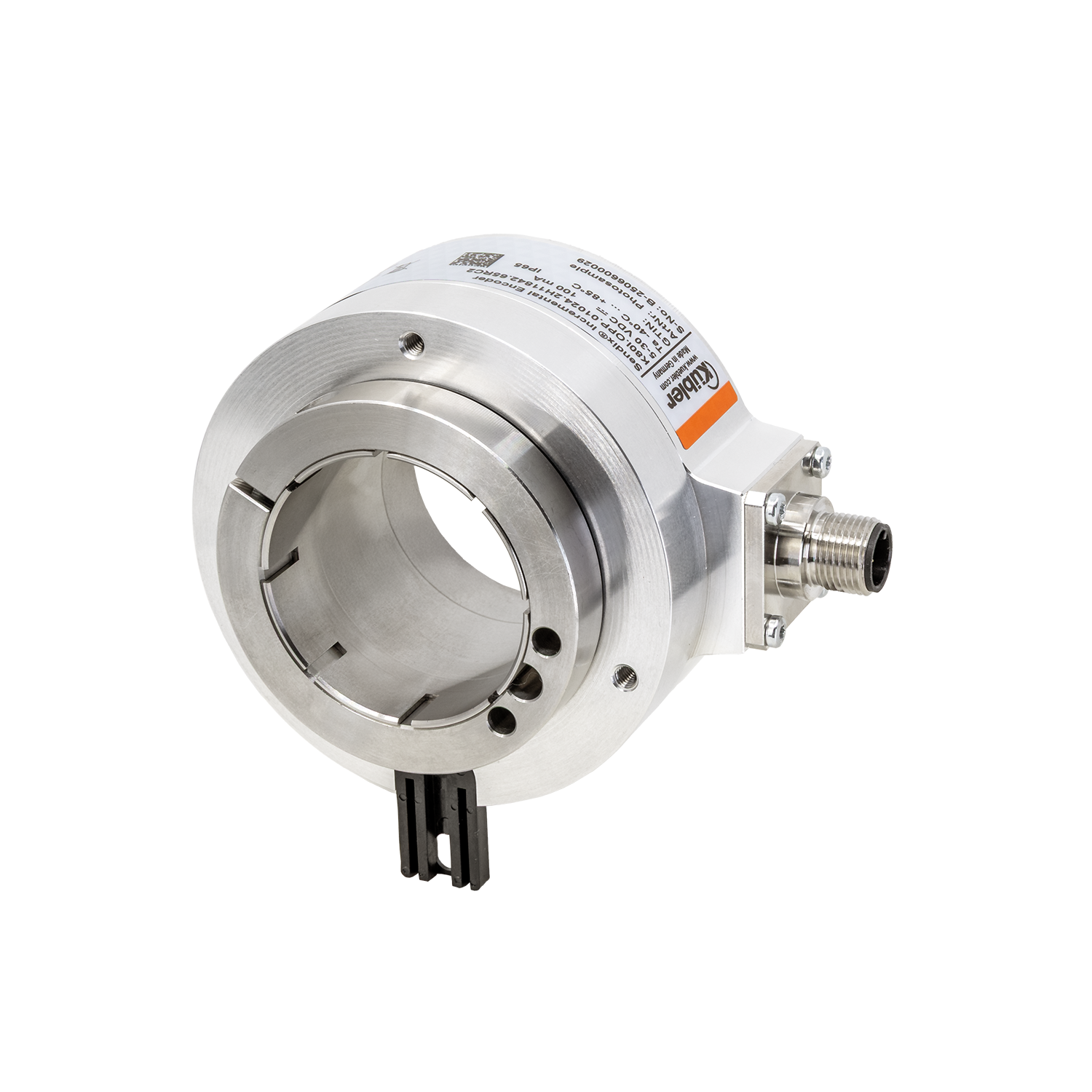

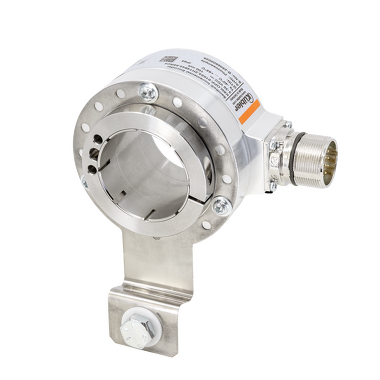

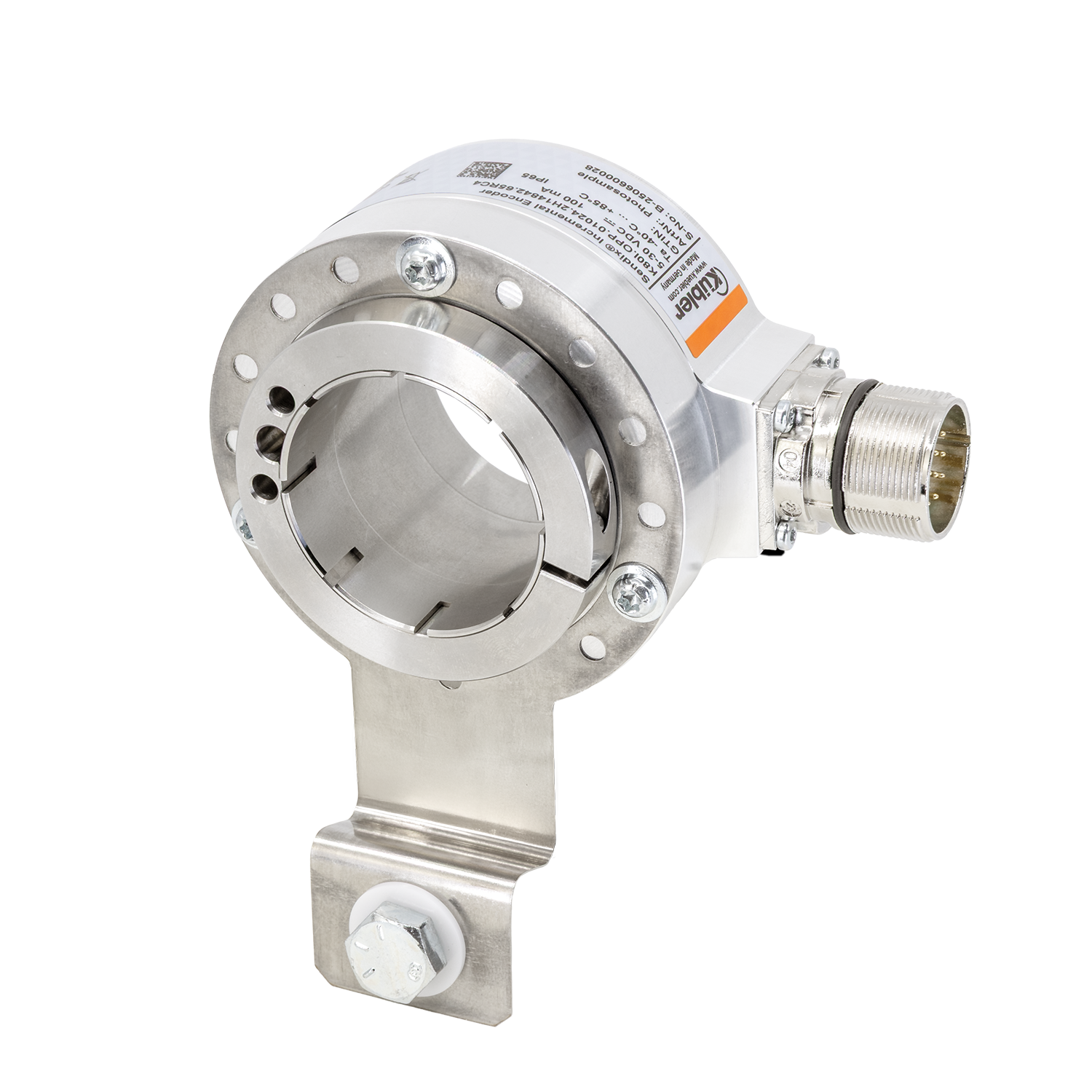

Sendix K80I Performance
|
|
Maximum performance and flexibility for large shafts.
The new Sendix K80I Performance Line encoder stands out thanks to its ability to program various parameters such as resolution up to 36,000 ppr, counting direction, and zero pulse. The settings can be made before or after installation and enable a quick, directresponse to changing or new requirements without having to replace the encoders with new ones. The Sendix K80I encoder for large shafts has the outstanding feature of combining a continuous hollow shaft of 42 mm with a reduced size of 80 mm.
| Mechanical | |
|---|---|
| Dimension | Ø 80 mm |
| Shaft type |
14 mm hollow shaft, through 15 mm hollow shaft, through 16 mm hollow shaft, through 18 mm hollow shaft, through 20 mm hollow shaft, through 25 mm hollow shaft, through 28 mm hollow shaft, through 30 mm hollow shaft, through 32 mm hollow shaft, through 38 mm hollow shaft, through 40 mm hollow shaft, through 42 mm hollow shaft, through 3/4 " hollow shaft, through 5/8 " hollow shaft, through 7/8 " hollow shaft, through 1 " hollow shaft, through 1 1/8 " hollow shaft, through 1 1/4 " hollow shaft, through |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 IP66 IP67 |
| Connection types |
Radial cable M23 connector radial M12 connector radial MIL connector |
| Max. rotational speed |
5.000 min-1 |
| Weight | 800 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
36.000 ppr incremental |
| Power supply |
5...30 V DC |
| Interfaces |
Gegentakt TTL / RS422 |
| Options | |
|---|---|
| on request |
|
Encoders can be easily and quickly customized at any time
Individually configurable parameters:
- Pulse counts up to 36,000 ppr
- HTL or TTL output
- Counting direction
- Gated zero pulse (length, links)
High accuracy and reliability
State-of-the-art sensor technology with resolutions up to 36,000 ppr.
For the toughest operating conditions under a wide range of external influences
- Temperature range from -40 °C to +85 °C
- Protection class up to IP67
- Optimized EMC shielding concept
- Advanced Safety Lock technology
Reduced installation space even in large applications
Hollow shaft up to 42 mm diameter with 80 mm size.
Seamless integration into modern, digital networks
Prepared for use with digital Type plate and digital twin for machine monitoring and maintenance as well as for a wide range of documentation tasks. Optimization of processes and increase in efficiency.
Accessories

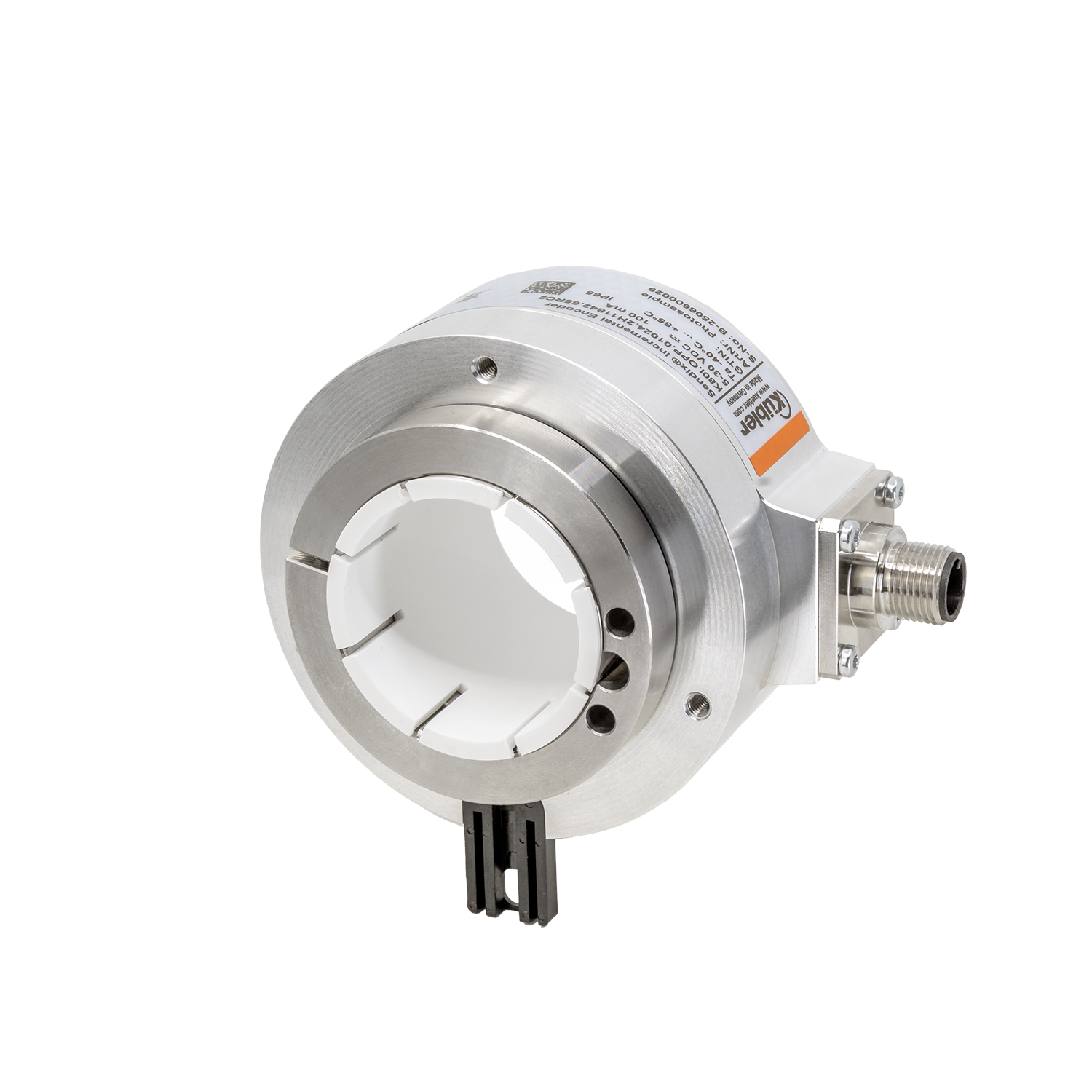

Isolation insert, hollow shaft Ø 38mm
Thermal and electrical insulation of the encoders (temperature range -40°C to +115°C). These insulating inserts prevent currents through the encoder bearings. These can occur when used with inverter-controlled three-phase or AC vector motors and considerably shorten the service life of the encoder bearings. In addition, the encoder is thermally insulated because the plastic does not transfer the heat to the encoder.Insulation insert (plastic).
| Innendurchmesser 20 mm | 8.0010.4011.0000 |
| Innendurchmesser 25 mm | 8.0010.4012.0000 |
| Innendurchmesser 1/2” (12,75 mm ) | 8.0010.4013.0000 |
| Innendurchmesser 1 1/8” (28,575 mm) | 8.0010.4014.0000 |
| Innendurchmesser 32 mm | 8.0010.4015.0000 |
| Innendurchmesser 30 mm | 8.0010.4016.0000 |
| Innendurchmesser 7/8“ (22,225 mm) | 8.0010.4018.0000 |
| Innendurchmesser 16 mm | 8.0010.4019.0000 |
| Innendurchmesser 14 mm | 8.0010.4027.0000 |
| Innendurchmesser 15 mm | 8.0010.4038.0000 |
| Innendurchmesser 1“ (25,4 mm) | 8.0010.4050.0000 |
| Innendurchmesser 1 1/4" (31,75 mm ) | 8.0010.4060.0000 |
| Innendurchmesser 28 mm | 8.0010.4061.0000 |
| Innendurchmesser 5/8" (15,875 mm) | 8.0010.4070.0000 |
| Innendurchmesser 18 mm | 8.0010.4080.0000 |
| Innendurchmesser 3/4” (19,05 mm) | 8.0010.4090.0000 |
| Innendurchmesser 12 mm | 8.0010.4091.0000 |
Isolation insert, hollow shaft Ø 42mm
Thermal and electrical insulation of the encoders (temperature range -40°C to +115°C). These insulating inserts prevent currents through the encoder bearings. These can occur when used with inverter-controlled three-phase or AC vector motors and considerably shorten the service life of the encoder bearings. In addition, the encoder is thermally insulated because the plastic does not transfer the heat to the encoder.Insulation insert (plastic).
| Innendurchmesser 38 mm | 8.0010.4017.0000 |
| Innendurchmesser 12 mm | 8.0010.4029.0000 |
Tapered shaft mounting kit, hollow shaft Ø 38mm
Pour codeurs A02HAvec diamètre d'arbre creux 38 mm
Pour la mise à niveau en vue d'un montage sur arbre conique. Les arbres coniques sont utilisés pour un couplage direct de haute précision. Le kit de montage comprend également un insert isolant qui protège le codeur de manière fiable contre les courants ondulatoires.
Contenu de la livraison
- Insert de trou de sac conique Cône 1:10, longueur 17 mm
- Insert d'isolation
- Vis à six pans creux pour la fixation centrale.ning.
| 8.0010.4028.0000 |
Connection adapter
For connecting the encodersSub-D pin, 15-pin
Spring terminal, 3-pin
| 8.0010.9000.0100 |
Cables and connectors
SUB-D Connector with cable , 8.0000.6000.0002.0112
Preassembled cable set
↓
Female connector 8-pin
SUB-D Connector with cable , 8.0000.6000.0002.0113
Preassembled cable set
↓
Female connector 5-pin
SUB-D Connector with cable , 8.0000.6000.0002.0114
Preassembled cable set
↓
Female connector 12-pin
