Encoders Incremental
Sendix K58I Performance
|
|
Individually programmable - high temperature, high resolution
The new Sendix K58 Performance-Line encoder is particularly impressive due to the option of programming various parameters such as resolution, counting direction or zero pulse. The settings can be made before or after installation and enable a fast, direct response to changing or new requirements without having to replace the encoder with a new one. Other optimized features include a higher temperature range and a resolution of up to 36,000 pulses per revolution.| Mechanical | |
|---|---|
| Dimension | Ø 58 mm |
| Shaft type |
6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 12 mm shaft, with flat surface 1/4 " shaft, with flat surface 3/8 " shaft, with flat surface 6 mm hollow shaft, through 8 mm hollow shaft, through 10 mm hollow shaft, through 12 mm hollow shaft, through 14 mm hollow shaft, through 15 mm hollow shaft, through 1/4 " hollow shaft, through 3/8 " hollow shaft, through 1/2 " hollow shaft, through |
| Flange type |
Synchro flange / Servo flange Clamping flange Square flange Euro flange Ø 58.00 mm |
| Working temperature | -40 °C ... +110 °C |
| Protection level |
IP65 IP66 IP67 |
| Connection types |
Radial cable M23 connector axial M23 connector radial M12 connector |
| Max. rotational speed |
12.000 min-1 |
| Weight | 400 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Power supply |
5 V DC 5...30 V DC |
| Interfaces |
Gegentakt TTL / RS422 |
| Options | |
|---|---|
| on request |
|
Encoders can be easily and quickly customized at any time
Individually configurable parameters:
- Impulse numbers up to 36,000 ppr
- HTL or TTL output
- Counting direction
- Zero pulse settings (length, position, links)
High accuracy and reliability
The latest sensor technology with resolutions up to 36,000 ppr.
For the harshest operating conditions under a wide range of external influences
- Temperature range from -40 °C to +110 °C
- Maximum protection rating of IP67
- Optimized EMC shielding concept
- Further developed safety-lock technology
Seamless integration into modern digital networks
Prepared for use with digital nameplates and digital twins for machine monitoring and maintenance, as well as a wide range of documentation tasks. Optimizing processes and increasing efficiency.

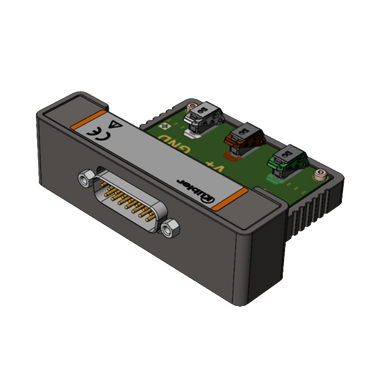

Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
| 8.0000.1102.XXXX |
Isolation insert, hollow shaft Ø 15mm
Thermal and electrical insulation of the encoders (temperature range -40°C to +115°C). These insulating inserts prevent currents through the encoder bearings. These can occur when used with inverter-controlled three-phase or AC vector motors and considerably shorten the service life of the encoder bearings. In addition, the encoder is thermally insulated because the plastic does not transfer the heat to the encoder.Insulation insert (plastic).
| Innendurchmesser 8 mm | 8.0010.4020.0000 |
| Innendurchmesser 6 mm | 8.0010.4021.0000 |
| Innendurchmesser 1/4" | 8.0010.4022.0000 |
| Innendurchmesser 10 mm | 8.0010.4023.0000 |
| Innendurchmesser 3/8" | 8.0010.4024.0000 |
| Innendurchmesser 12 mm | 8.0010.4025.0000 |
| Innendurchmesser 1/2" | 8.0010.4026.0000 |
