Encoders Absolute singleturn

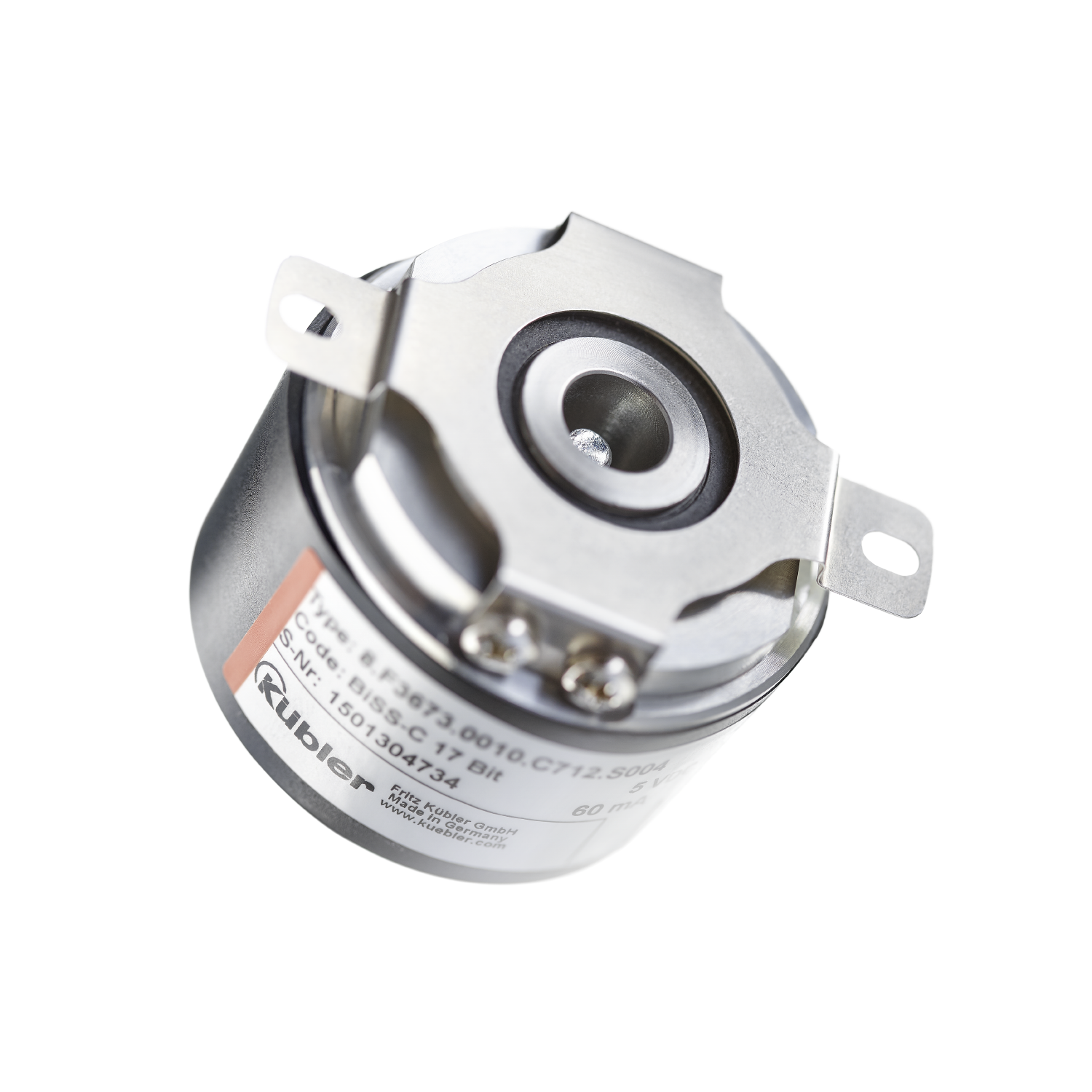

Sendix F3673
|
|
Intelligent Scan Technology™ – powerful and economical at the same time.
The absolute encoders Singleturn Sendix F3653 / F3673 with patented Intelligent Scan Technology™ and SSI or BiSS interface are characterized by special robustness and compactness. With dimensions of only 36 x 42 mm, a through hollow shaft up to 8 mm or a blind hollow shaft up to 10 mm is possible. The high-precision optical sensors achieve a resolution of 17 bits.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm hollow shaft, through 10 mm hollow shaft, blind hole 8 mm hollow shaft, through 1/4 " hollow shaft, through |
| Flange type |
Ø 36.00 mm Ø 46.00 mm |
| Working temperature | -40 °C ... +90 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Tangential cable M12 connector axial |
| Max. rotational speed |
12.000 min-1 |
| Weight | 200 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Resolution max. |
2.048 ppr incremental 17 bits singleturn |
| Power supply |
5 V DC 10...30 V DC |
| Interfaces |
SSI, binär SSI, gray SSI + 2048 ppr SinCos SSI + 2048 ppr RS422 BiSS BiSS + 2048 ppr SinCos BiSS + 2048 ppr RS422 |
- Robust bearing construction in safety Lock™ Design for resistance to vibration and installation errors.
- Due to IP67 protection and wide temperature range from -40°C to +90°C also suitable for outdoor use.
- Patented Intelligent Scan Technology™ with all single and multiturn functions on one OptoASIC - thus highest reliability, a high resolution of up to 17 bits and 100% magnetic insensitivity.
- High precision with a data update of the position value ≤ 1 µs.
- High-resolution feedback in real time via SinCos and RS422 incremental outputs.
- Short control cycles, clock frequency with SSI up to 2 MHz / with BiSS up to 10 MHz.
Accessories
Stator coupling, double-winged
For hollow shaft encoders
with flange ø 36 ... 37 mm
Mounting radius 23 mm
For front mounting on the encoder flange. For applications with axial and radial play at high dynamics.
Scope of delivery
- Stator coupling (stainless steel)
- 2 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 2 screws
| 8.0010.4C00.0000 |
Spring element, short
For hollow shaft encoderswith flange ø 36 ... 58 mm
Mounting radius 16 ... 27 mm
For applications with limited axial play at low dynamics and limited installation space.
Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
| 8.0010.4H00.0000 |
Spring element, long
For hollow shaft encoderswith flange ø 36 ... 58 mm
Mounting radius 30.7 ... 36.7 mm
For applications with high axial play, at low dynamics.
Scope of delivery
- Spring element (plastic)
- 1 screw for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0000
| 8.0010.4I00.0000 |
