Encoders Absolute multiturn
9080
|



Product is discontinued
A new / comparable product is available for this product.

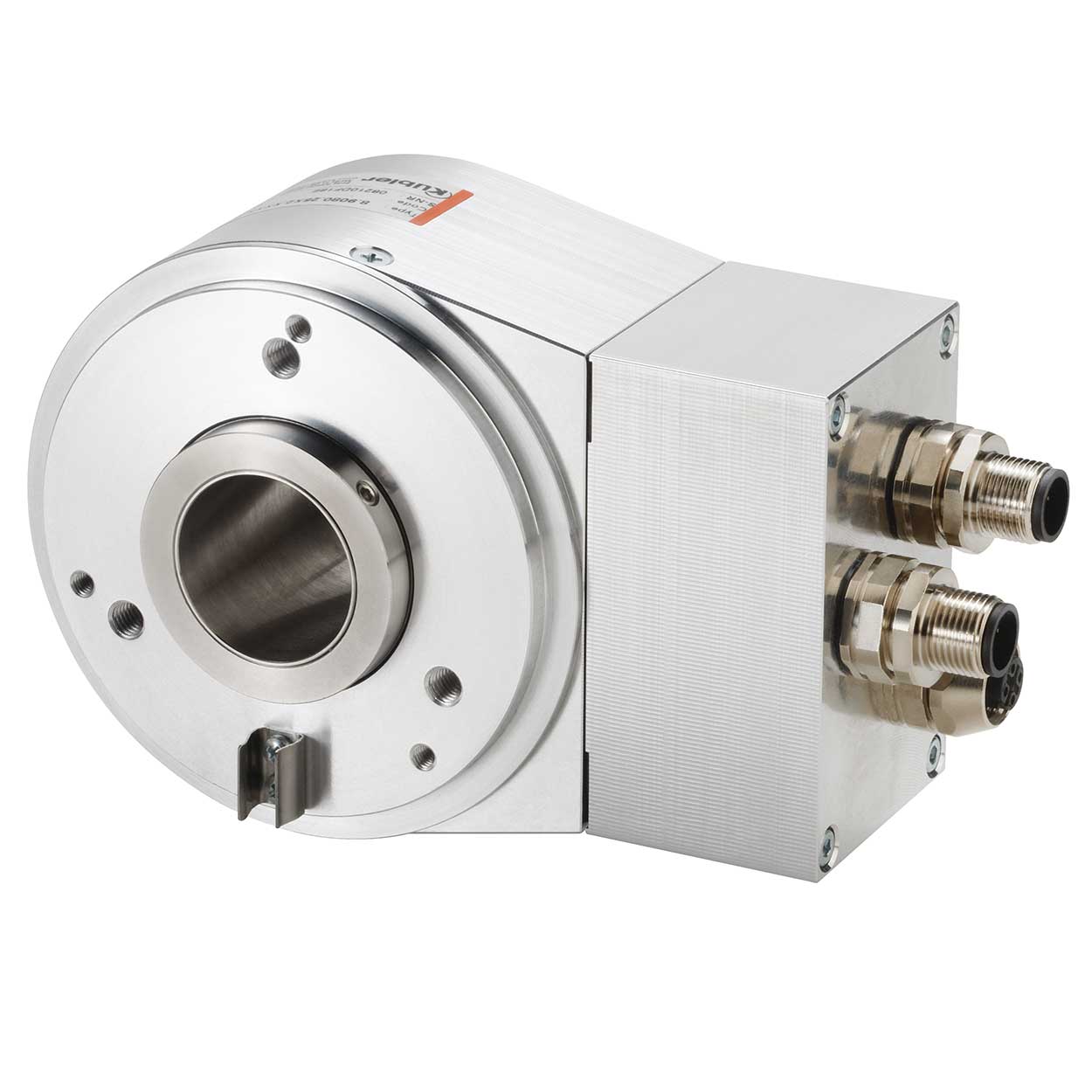

Multiturn encoder with through hollow shaft
The multiturn encoder 9080 with Profibus interface and combined optical / mechanical sensor technology is predestined for Profibus applications where a large hollow shaft is required. This through hollow shaft is available up to a diameter of 28 mm. The maximum resolution of the 9080 is25 bits.
Mechanical | |
---|---|
Dimension | Ø 90 mm |
Shaft type |
28 mm hollow shaft, through |
Electrical | |
---|---|
Scanning | optical |
Resolution max. |
13 bits singleturn 12 bits multiturn |
Interfaces |
PROFIBUS DP |
Variable
- With cable gland or M12 plug.
- Hollow shaft from 12 to 28 mm.
- Programmable via bus.
- Programmability of all relevant parameters.
- Large selection of shafts and mounting options.
Accessories

Tether arm, 70 mm
For encoders A020, A02H, H120Mounting radius max. 135 mm
For applications with low axial and radial play, flexibly adjustable.
Scope of delivery
- Mounting arm
- 2 Allen screws M2.5 x 6
- 2 toothed lock washers
Connection to the application (not included in delivery)
- 1 screw
8.0010.40S0.0000 |

Tether arm, long
For encoders A020, A02H, H120Mounting radius max. 165 mm
For applications with low axial and radial play, flexibly adjustable.
Scope of delivery
- Mounting arm
- 2 Allen screws M2.5 x 6
- 2 toothed lock washers
Connection to the application (not included in delivery)
- 1 screw
8.0010.40T0.0000 |

Tether arm, 150 mm
For encoders A020, A02H, H120Mounting radius max. 215 mm
For applications with low axial and radial play, flexibly adjustable.
Scope of delivery
- Mounting arm
- 2 Allen screws M2.5 x 6
- 2 toothed lock washers
Connection to the application (not included in delivery)
- 1 screw
8.0010.40U0.0000 |

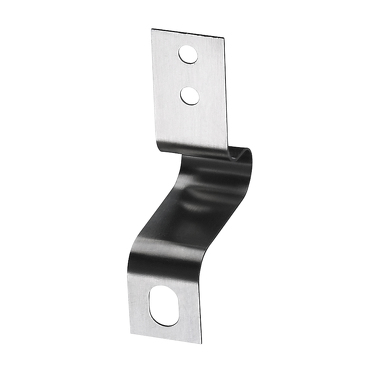

Fastening arm, long
For encoders A020, A02HMounting radius 52 ... 103 mm
For applications with axial and radial play at low dynamics.
Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder
Connection to the application (not included in delivery)
- 1 screw
8.0010.4E00.0000 |

Spring element, short
For encoders A020, A02HPitch circle diameter 76 mm
For applications with limited installation space.
Scope of delivery
- Spring element (stainless steel)
- 2 screws for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0003
8.0010.4J00.0000 |

Spring element, long
For encoders A020, A02HMounting radius 27 ... 36 mm
For applications with high axial play.
Scope of delivery
- Spring element (stainless steel)
- 2 screws for mounting on the encoder
Connection to the application (not included in delivery)
- Parallel pin 8.0010.4700.0003
8.0010.4K00.0000 |

Fastening arm, short
For encoders A020, A02HMounting radius 74.5 mm
For applications with axial play.
Scope of delivery
- Torque support (stainless steel)
- 3 screws for mounting on the encoder
- Mounting accessories for attachment to the application
8.0010.4T00.0000 |
