Encoders Absolute multiturn
5862
|
|
Product is discontinued
A new / comparable product is available for this product.

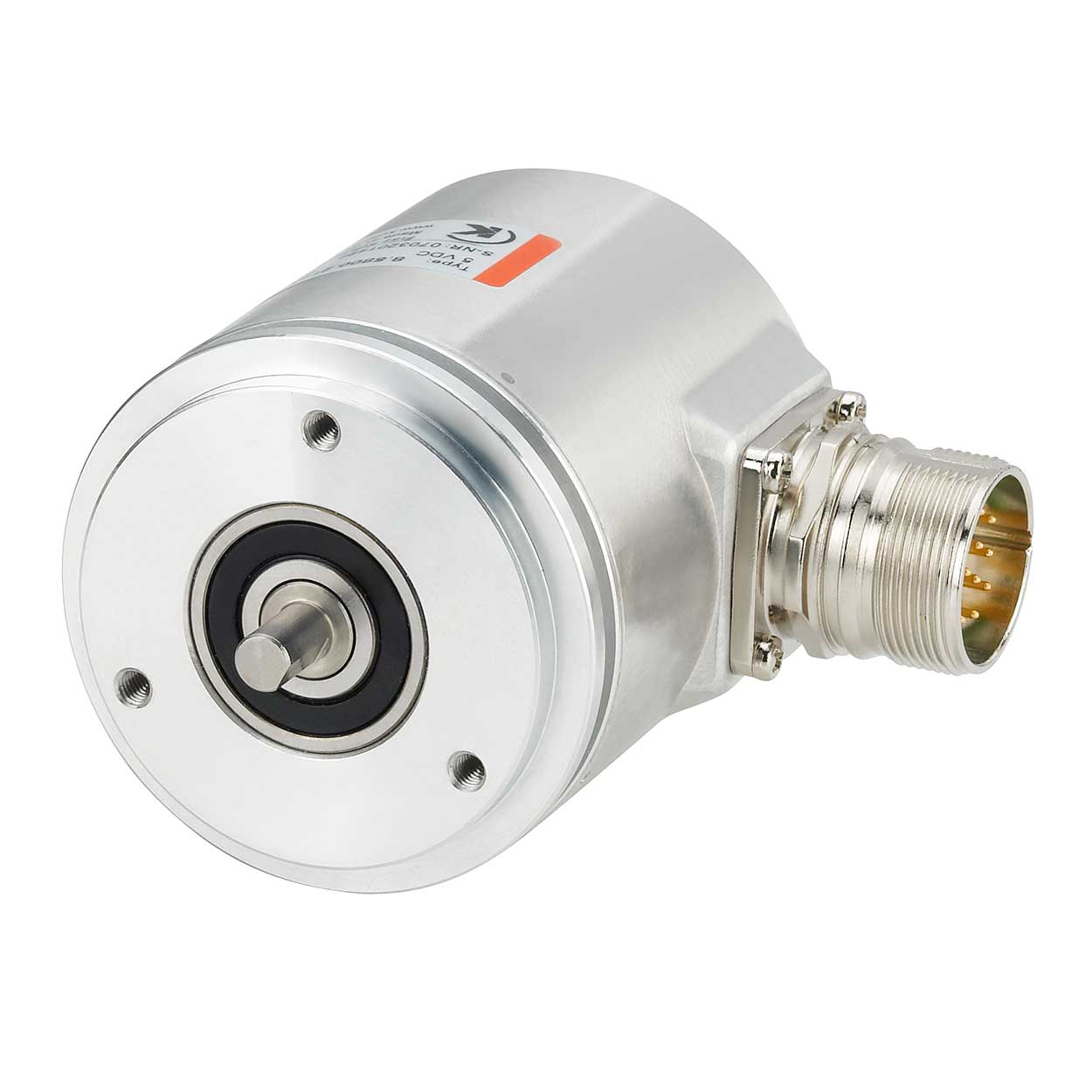

Rotary encoder with SSI interface
| Mechanical | |
|---|---|
| Flange type |
Ø 58.00 mm |
| Working temperature | -20 °C ... +85 °C |
| Protection level |
IP65 |
| Connection types |
M23 connector axial |
| Max. rotational speed |
6.000 min-1 |
| Weight | 400 g |
| Electrical | |
|---|---|
| Scanning | optical |
| Power supply |
5...30 V DC |
| Interfaces |
RS485 SSI, binär |
Accessories
Bearing box
For shaft encoder with clamping flange ø 58 mm and shaft 10 x 20 mmWhen the encoder is driven by a toothed or chain wheel, V-belt or toothed belt, impeller, etc., the permissible axial or radial shaft loads are usually exceeded during operation. For these cases, the bearing box equipped with reinforced bearings is ideally suited.
Scope of delivery
- Bearing box with lock and O-ring
- Coupling for shaft 10 mm
- Adapter flange 8.0010.2100.0000
- Mounting accessories
| 8.0010.8200.0004 |
Robust bearing unit
For shaft encoders with clamping flange ø 50 ... 58 mm and shaft 10 mmThe separation of the bearing load and the sensor system provides the encoder with additional protection in harsh environments.
Scope of delivery
- Robust bearing unit
- 3 x cheese head screw M4x25 (SW3)
- 1 x O-ring
| 8.0010.8200.000C |
