Codix 533 Codix 533
Codix 533 Codix 533

Setpoint adjuster for standard signals electronic

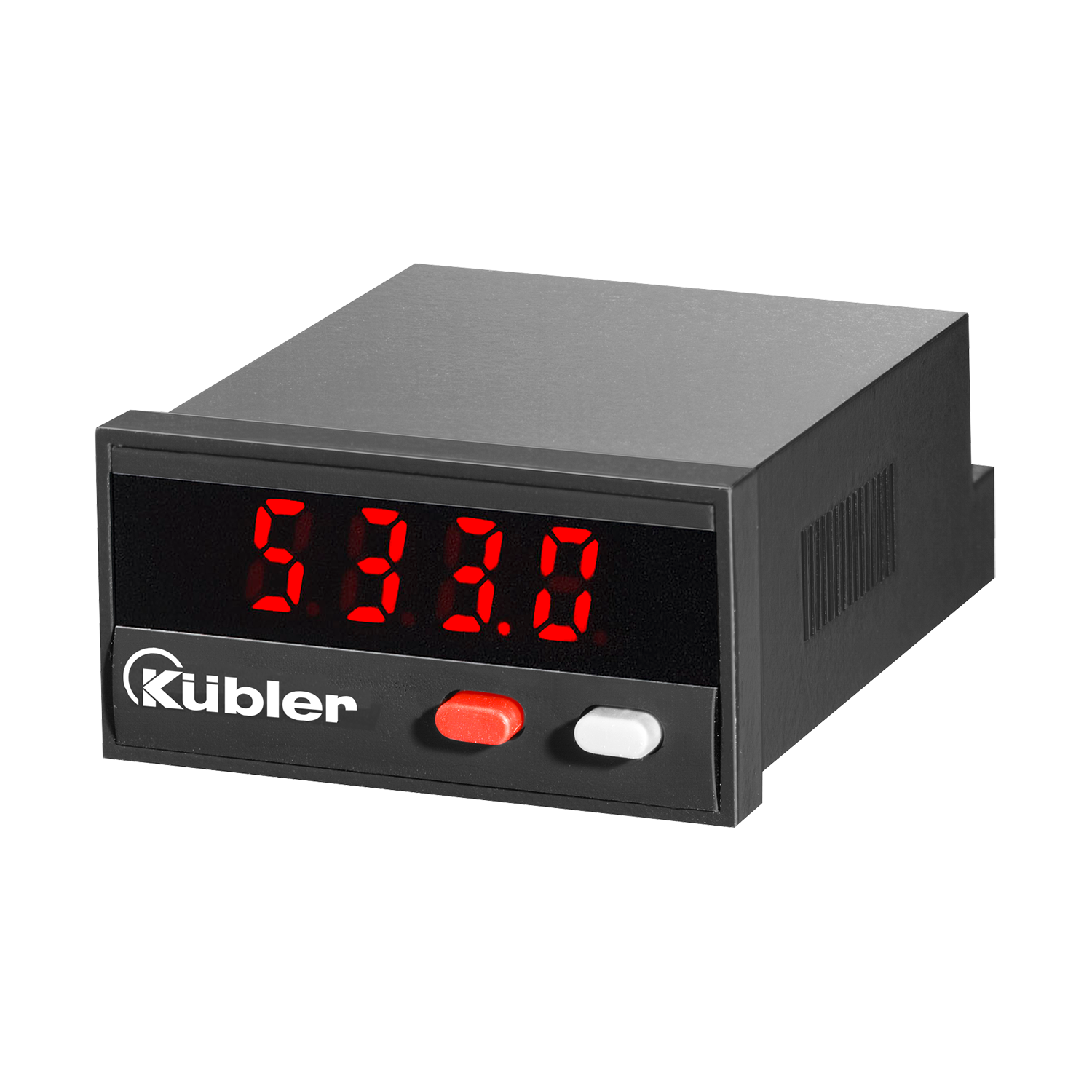

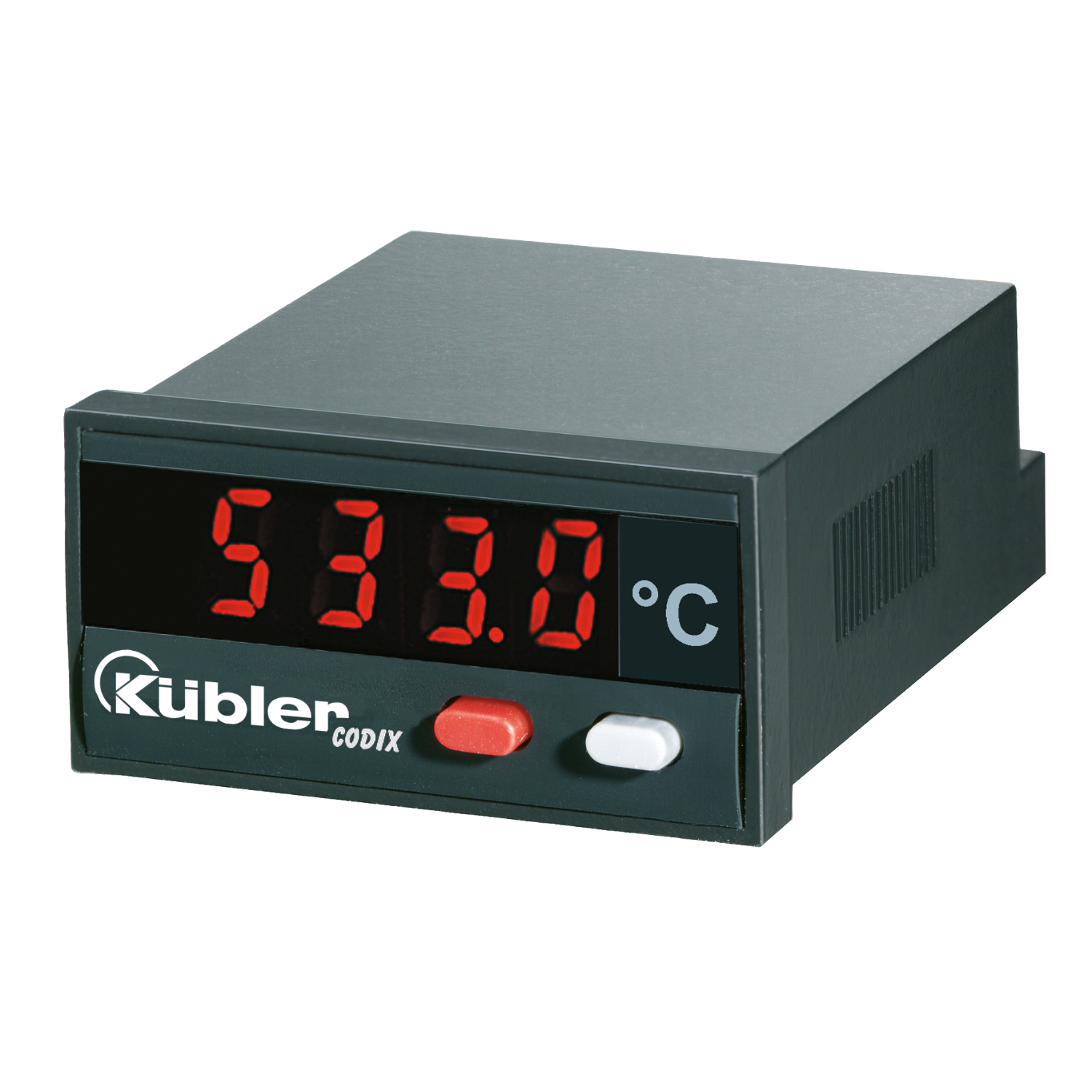

Codix 533

  • Suitable for simulation runs
  • 3 programmable output modes
  • High protection, IP65
  • Dimension
    · 48 x 24 mm | 45 x 22 mm
  • Power supply:
      · 10...30 V DC
  • Display 4-digit number, LED
Analog 0...12 V

Setpoint adjuster for 0-12 V and 4-20 mA output signals.

The Codix 533 setpoint adjuster provides a standard signal or a freely programmable, time-controlled signal sequence of 0 to 12 V or 0 to 24 mA. The setpoint adjuster is a real innovation that opens up new applications in process technology and automation.

Mechanical
Model electronic
Dimension 1 48 x 24 mm | 45 x 22 mm
Protection level IP65
Working temperature -20 °C ... +65 °C
Weight 50 g

(1) Front panel size | Panel cut-out
Electrical
Power supply 10...30 V DC
Signal input PNP
Signal output Analog 0...12 V
Analog 0...20 mA
Innovative
  • Function of a digital timer with analog output
  • Manual functions with direct input or step-by-step, step-by-step output of the set point
  • 4-digit high-quality LED display with 8 mm digit size
  • Output of the physical quantities as 0 to 12 V or 0 to 24 mA.
  • The display unit can be freely programmed and displayed. No conversion of the output value necessary.
  • Suitable for simulation runs, without expensive and time-consuming running-in of processes
Powerful
  • Process sequences easier to implement than with PLC or process control unit
  • Simple programming via two keys and plain text
  • No additional DIP switches or potentiometer, digitally adjustable
  • A simple control of the output setpoint value
  • Convenient display form as direct digital value
  • 3 separate functions integrated as standard in Codix 533
  • High accuracy < 0.2% of final value
Data sheet

Codix 533

PDF ∼ 1,2 MB | 03.2024
DE
EN
FR
Operation Manual

Codix 533

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 1,3 MB | 09.2023

Programming instruction

Codix 533

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 214,9 KB | 03.2024

Declaration of conformity

Codix 533 CE

Multilingual: German, English, French
PDF ∼ 100,4 KB | 04.2022

Electronic CAD / ePlan

Codix 533

ZIP ∼ 907,5 KB | 03.2021

Product Certificates

UL Canada - Counters and process devices

PDF ∼ 78,6 KB | 01.2019
EN

UL USA - Counters and process devices

PDF ∼ 76,1 KB | 01.2019
EN

Accessories

Bezel adapter set

Bezel adapter set

Adapter front frame 72x36mm to 48x24mm for cutout 68x33mm to cutout 45x22.2mm. Available as a set in black and silver anodized.

2 front frame black and silver, 1 balance frame.
162.704.set
Data sheet
Adapter front bezel
DE EN FR

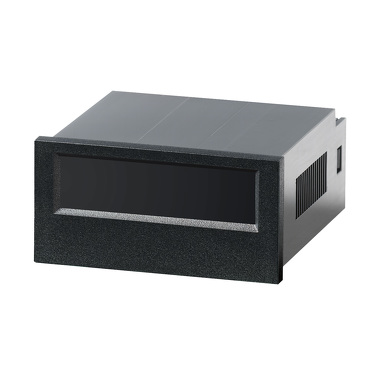

Blind housing 13x, 14x

Blind housing 13x, 14x

Blind housing for 22.2x45mm and 25x50mm cutout.

Blind housing, clamping bracket, seals, adapter front frame.
G.003.836
Data sheet
Enclosure blind
DE EN FR

Sealing cover K1

Sealing cover K1

Flexible sealing cap for front frame F1B and adapter front frame N003001 made of soft PVC with painted sheet steel frame and mounting screws. IP65 protection according to DIN 40050 when installed. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.

Sealing cap (PVC) with sheet steel frame, 2 mounting screws M4x15.
Grau G.008.300
Schwarz G.008.301
Data sheet
Sealing cover
DE EN FR

Mounting frame, 24x48

Mounting frame, 24x48

For the installation of all counters, timers, process devices with DIN dimensions 24x48mm or 50x25mm. Cutout 25x50mm. For snap-on mounting on 35mm DIN top hat rail.

Meter holder (chrome-plated sheet steel), DIN hat-rail adapter (fiber-reinforced polyamide).
G.300.004
Data sheet
Mounting frame
DE EN FR

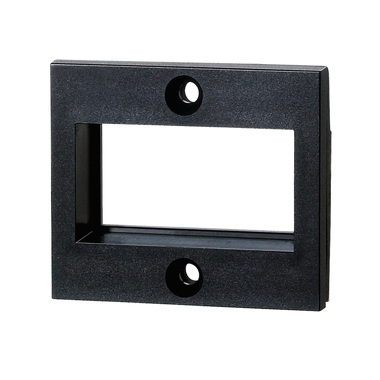

Bezel adapter

Bezel adapter

Adapter front frame 50x60mm for cutout F1B 54x29mm to 45x22.2mm for screw fastening with seal. Available in black.
N.003.001
Data sheet
Adapter front bezel (2)
DE EN FR

Transparent cover, lockable

Transparent cover, lockable

Screw-on transparent cover for front frame F1B and adapter front frame N003001, 1 DV, lockable for dimension F1. With seal over M4 mounting screws with own frame. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.

Transparent cover, seal, 2 mounting screws.
N.003.002
Data sheet
Transparent cover 2
DE EN FR

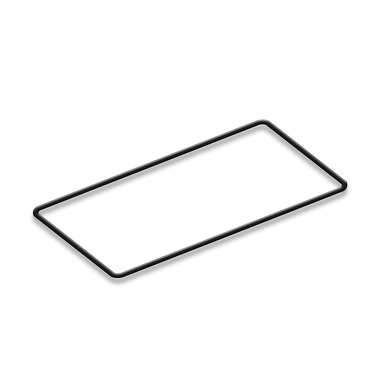

Sealing gasket N.511029

Sealing gasket N.511029

Outer dimension: 48 x 24 [1.89 x 0.945"]
Inner dimension: 45 x 22 [1.772 x 0.866"]
N.511029
Data sheet
Gaskets
DE EN FR

Sealing gasket N.511034

Sealing gasket N.511034

Outer dimension: 49 x 25 [1.929 x 0.984"]
Inner dimension: 45 x 22 [1.772 x 0.866"]
N.511034
Data sheet
Gaskets
DE EN FR

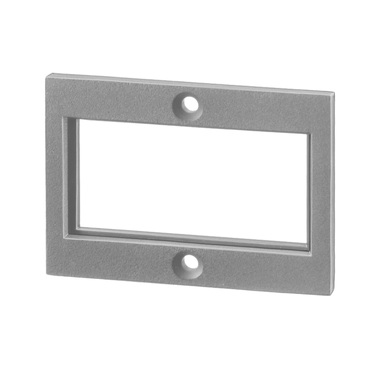

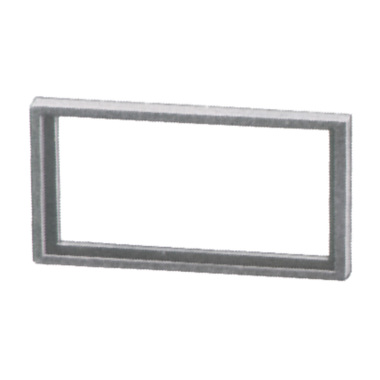

Bezel adapter 37.1

Bezel adapter 37.1

Adapter front frame 37.1 for front panel cutout 50x25mm to 45x22.2mm with screw fastening. Available in black, gray and anthracite.
Schwarz T.008.161
Anthrazit T.008.181
Data sheet
Adapter front bezel
DE EN FR

Slip on bezel 37.2

Slip on bezel 37.2

Adapter front frame 37.2 for front panel cutout 50x25mm to 45x22.2mm. Available in black, gray and anthracite.
Schwarz T.008.165
Anthrazit T.008.180
Data sheet
Adapter front bezel
DE EN FR

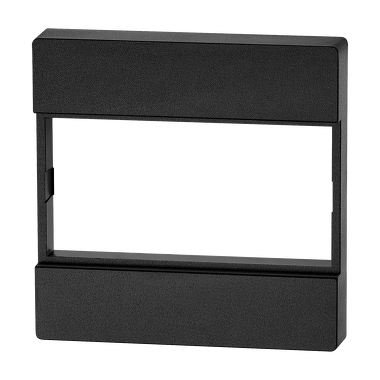

Bezel adapter

Bezel adapter

Adapter front frame 48x48mm to 48x24mm for cutout 45x45mm to cutout 45x22.2mm. Available in black.
T.008.883
Data sheet
Adapter front bezel (2)
DE EN FR
