Process controllers for standard signals electronic
573T
|
|
![](/images/content/logo/certificates/z4022_RoHS_logo_sw.png)
![Analog ±10 V](/images/content/logo/interface/z4003_analogOutput_logo_sw.png)
![RS232](/images/content/logo/interface/z4041_RS232_logo_sw.png)
![RS485](/images/content/logo/interface/z4009_RS485_logo_sw.png)
![Modbus](/images/content/logo/interface/z4019_Modbus_logo_rgb.png)
![IO-Link](/images/content/logo/interface/z4063_IO-Link_logo_sw_web.png)

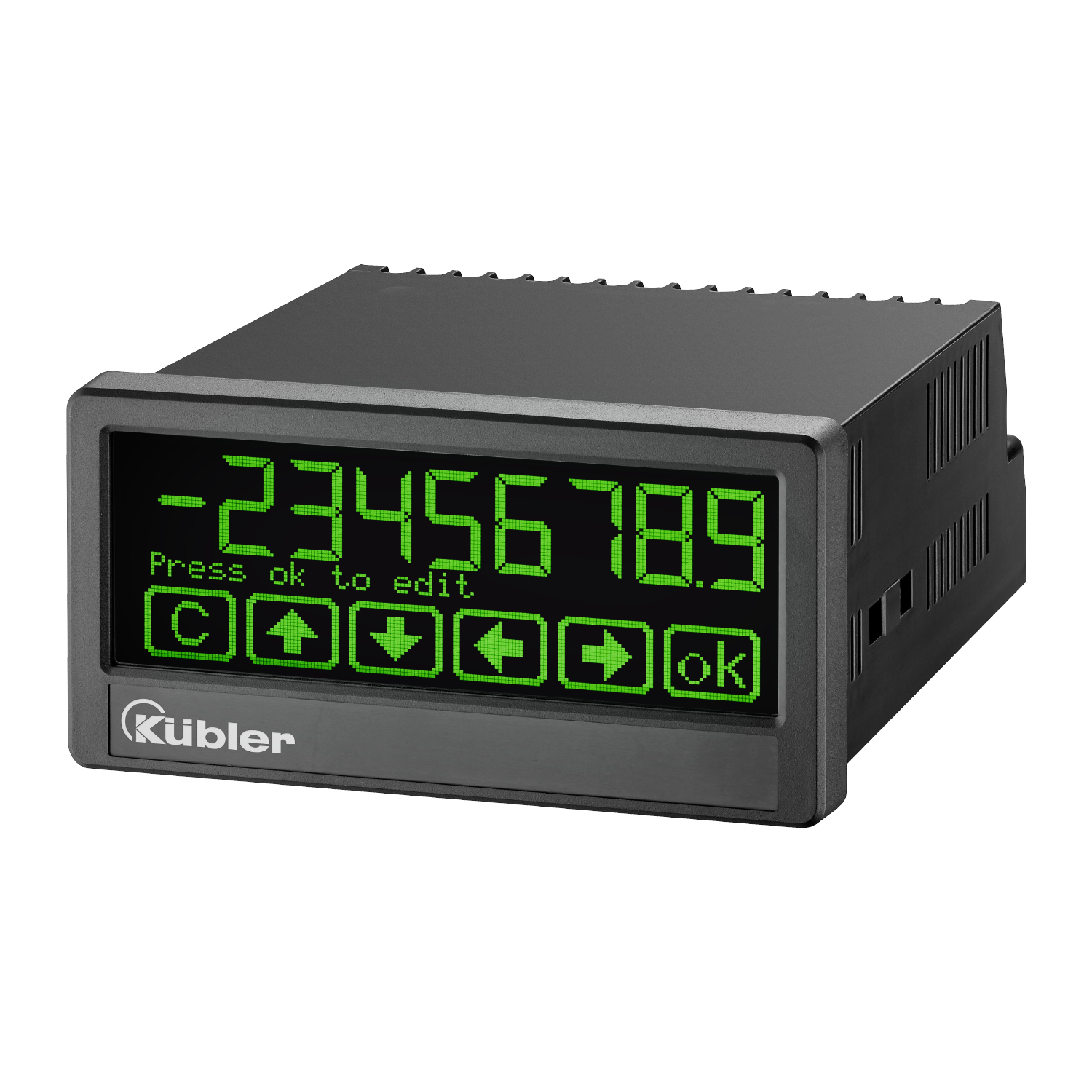

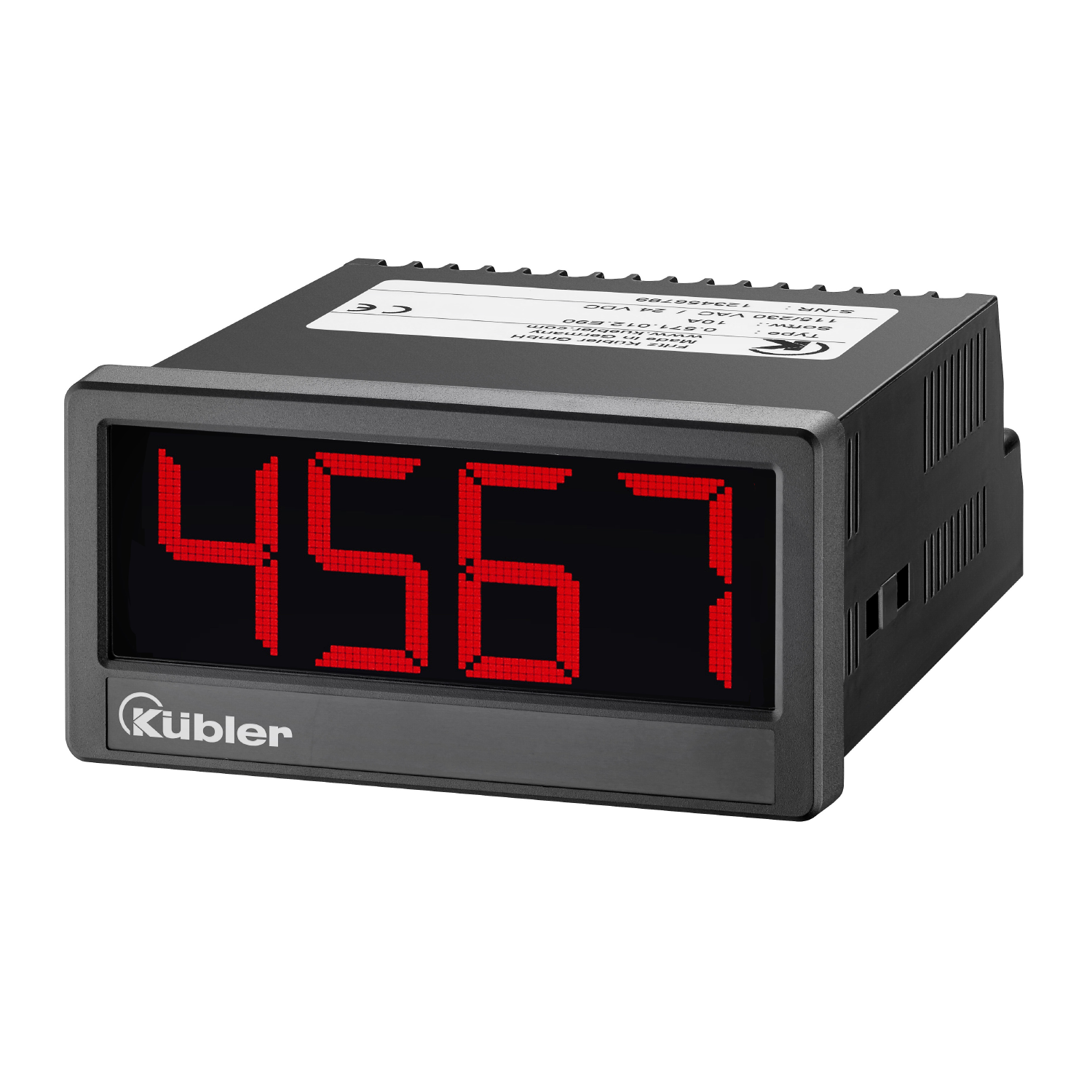

Touch process controller with 2 analog inputs.
The process control unit with 2 analog inputs can be used in both single-channel and dual-channel operation. For two-channel operation, all arithmetic operations are available to display the sum, difference, ratio or product. Inputs and outputs are separately scalable.Can be used as a simple process converter, process control unit (2 point controllers) or for complex measuring tasks in which 2 values are to be monitored, calculated or further processed in a higher-level control system.
Mechanical | |
---|---|
Model | Dual-function device electronic |
Functions |
Process controllers for standard signals Standard signal measuring devices Process displays for standard signals |
Dimension 1 |
96 x 48 mm | 92 x 45 mm |
Protection level |
IP20 IP65 |
Working temperature | -20 °C ... +60 °C |
Weight | 200 g |
Reset |
electronic |
(1) Front panel size | Panel cut-out
Electrical | |
---|---|
Power supply |
115 V AC 230 V AC 18...30 V DC |
Signal input |
Analog ±10 V Analog 0...20 mA Analog 4–20 mA PNP |
Signal output |
Analog ±10 V Analog 0...20 mA Analog 4–20 mA RS232 RS485 2 x Relais 4 x PNP |
Interfaces |
Modbus IO-Link Printer CR/LF Drivecom DIN ISO 1745 |
573T LCD touch multifunction preset counters
Properties- 2 separate freely scalable analog inputs ±10 V and 0/4 to 20 mA, resolution 16 bit.
- Tare function, the device can be set to 0 at any input voltage.
- Programmable linearization With up to 24 support points, input via keyboard or by means of the teach function.
- Mean value measurement programmable from 2 to 16 measuring cycles, with strongly fluctuating input signals.
- Simple programming by entering the desired display value for a defined input signal.
- Fast measuring rate of 25 ms per channel alternating.
- RS232 or RS485 serial interface for reading and writing data.
- Total sum counter for single and total values – time-controlled or manually controlled.
- Optional IO-Link input/output interface with Device 1.1 protocol.
Benefits

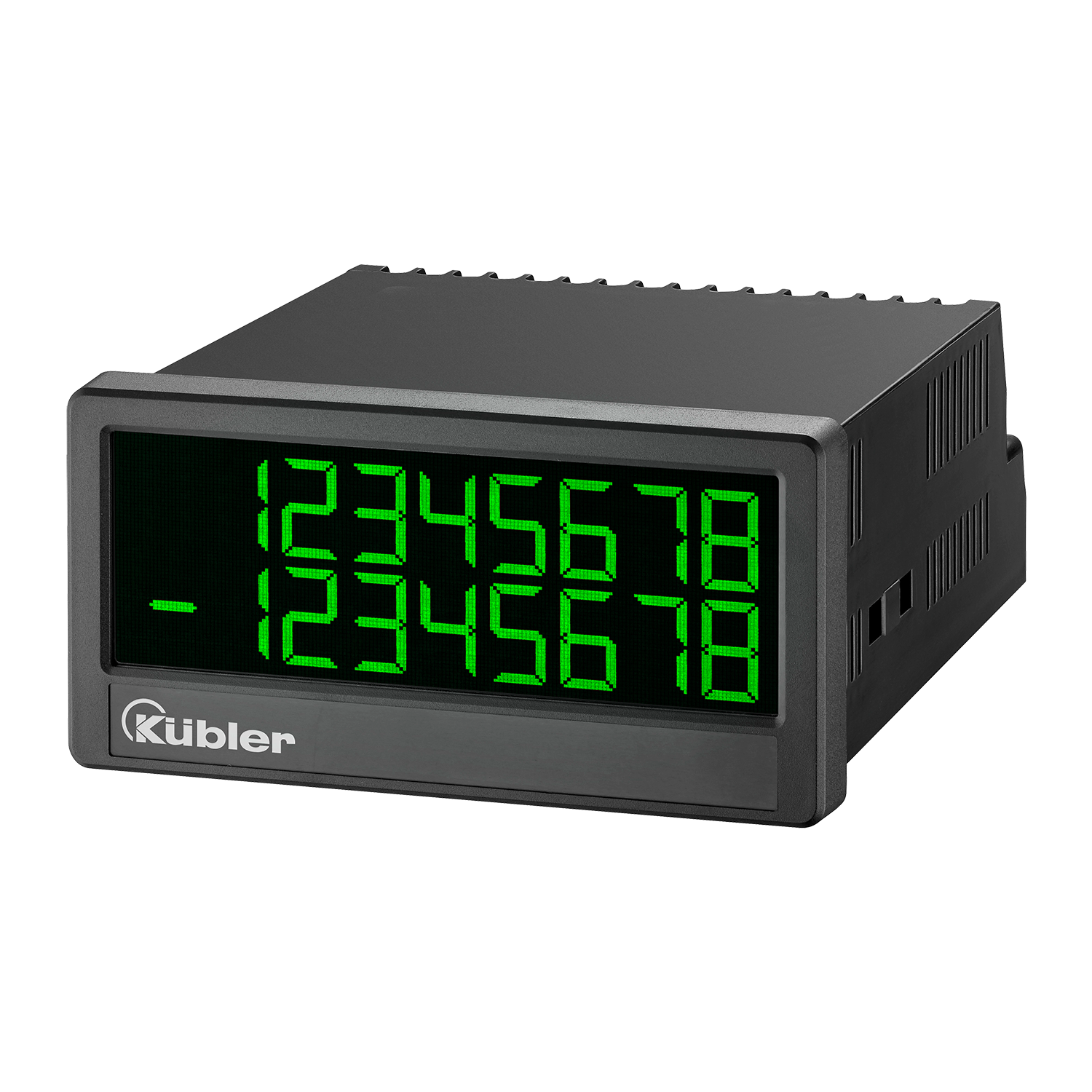

- Up to 3 display values in one device, display A, display B, calculated display from A and B.
- AC and DC supply voltage in one device.
- Simple plain text programming via touch display and separate tare or teach function.
- Can be used as a simple process converter, process control unit (2 point controllers) or for complex measuring tasks in which 2 values are to be monitored, calculated or further processed in a higher-level control system.
- Mathematical linking of the measured values of input A and B. The result can also be multiplied, divided or added to an offset value to obtain the desired display value.
- Analog output 0/4 to 20 mA, or ±10 V.
- 4 fast PNP switching outputs, 50 ms, with switching hysteresis, step or drag preset.
- Programmable display update.
