Multifunction devices electronic

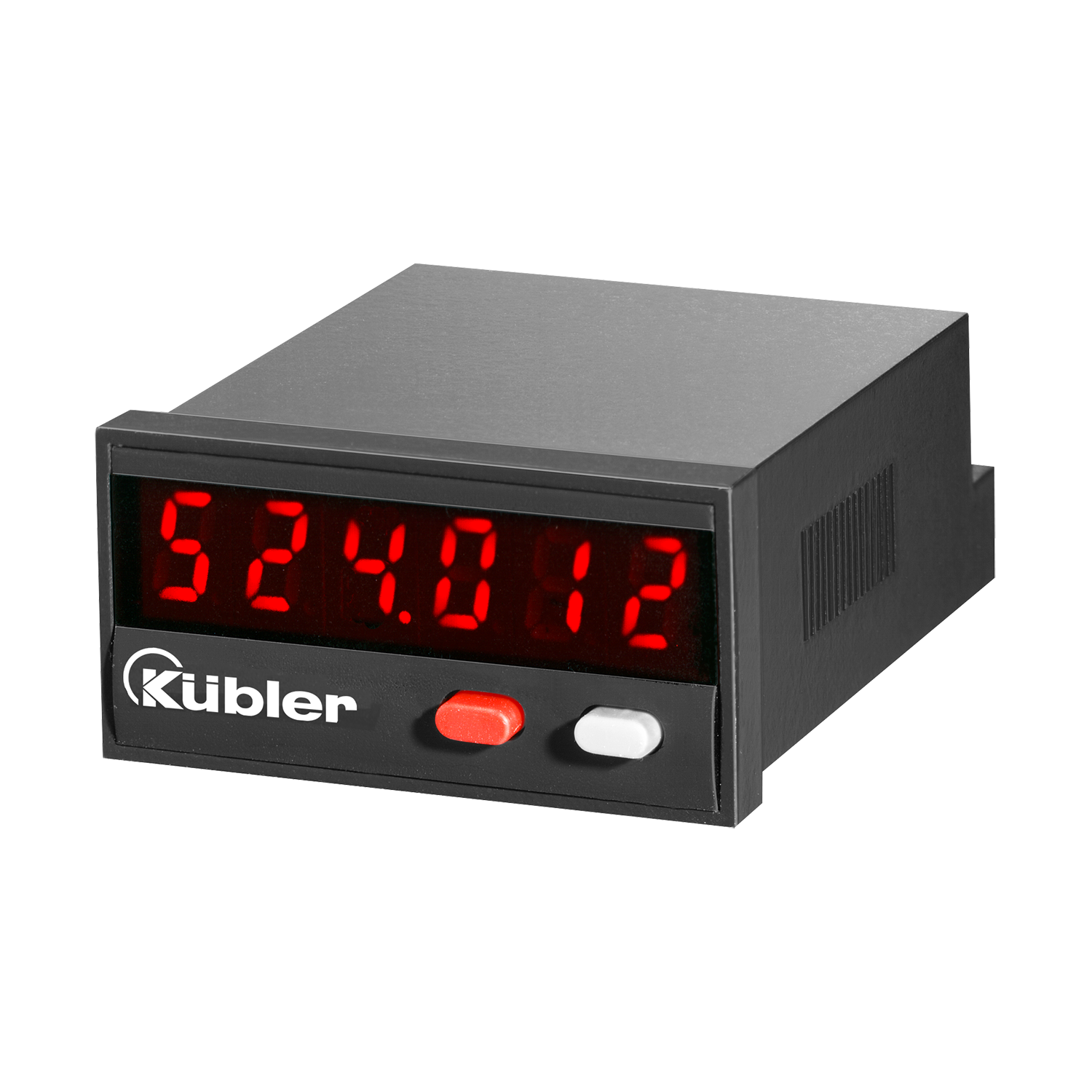

Codix 524

  • For pulse, frequency, and time counting
  • Individually adjustable scaling
  • Fast counter and frequency input
  • Dimension
    · 48 x 24 mm | 45 x 22 mm
  • Supply voltage:
      · 10...30 V DC
  • Display 6-digit number, LED

Multifunction counter – up to 3 functions in one device.

The Codix 524 is a power-supplied multifunction counter with 3 functions in one device:
Pulse and position display, frequency and speed display, time counter and short time meter for fast and slow counting pulses. With 6-digit LED display for NPN, PNP input signals.

Mechanical
Model Multifunction device electronic
Functions Pulse counter
Position displays without limit values
Tachometer without limitvalues
Hour meters / timers
Dimension 1 48 x 24 mm | 45 x 22 mm
Protection level IP65
Working temperature -20 °C ... +65 °C
Weight 50 g
Reset electronic

(1) Front panel size | Panel cut-out
Electrical
Supply voltage 10...30 V DC
Signal input NPN
PNP
Powerful
  •   Fast counter and frequency input, input frequency max. 60 kHz
  •   Robust housing - IP65 protected
  •   Very bright LED display, 8 mm high, 6 digits
  •   Exact and high-precision frequency measurement method (HRA-High Rate Accuracy System)
Frequencies up to 38 Hz are measured by a period duration measurement are evaluated. Frequencies > 38 Hz are controlled via a special
Gate time measurement evaluated.
Despite a short gate time, a very high accuracy of < 0.1% achieved. The measurement result is available after max. 50 ms.
  •   Short start-up time - Detected after power supply is switched on incoming pulses already after 16 ms => none Pulse loss with simultaneous motor start

User-friendly and universal
  •   Large keys (can also be operated with gloves)
  •   Programming:
  •   Simple and uniform programming and operation by plain text programming.
  •   Access to programming also during operation with safety prompt
  •   Individually adjustable scaling
      Multiplication and division factor (0.0001 to 99.9999), in order to calculate corresponding units in e.g. position in 1/10 mm and speed to be displayed in /RPM
  •   4 different counter input types for the position display: Counting direction, difference or addition mode, phase discriminator with single, double, or quadruple evaluation
  •   Frequency measurement (display in 1/min or 1/sec)
  •   Time counting: Pulse width or period duration measurement in hours, minutes or seconds, as well as real-time display
  •   Inputs: As an alternative to the HTL inputs, the following devices are also available with 4 to 30 V DC input level for use as a parallel display for PLC
  •   Optional with output: 0 signal for position and counting, Standstill monitoring at speed, 1 Hz cycle during active timing
Data sheet

Codix 524

PDF ∼ 1,0 MB | 10.2018
DE
EN
FR
Operation manual

Codix 521-524

Multilingual: German, English, French, Italian, Spanish
PDF ∼ 981,6 KB | 09.2011

Declaration of conformity

Codix 52x

Multilingual: German, English, French
PDF ∼ 379,4 KB | 04.2016

Certificates

Counting and Process UL Canada Certificate

PDF ∼ 78,6 KB | 01.2019
EN

Counting and Process UL USA Certificate

PDF ∼ 76,1 KB | 01.2019
EN

Accessories

Bezel adapter set

Bezel adapter set

Adapter front frame 72x36mm to 48x24mm for cutout 68x33mm to cutout 45x22.2mm. Available as a set in black and silver anodized.

2 front frame black and silver, 1 balance frame.
162.704.set
Data sheet
Adapter front bezel
DE EN FR

Blind housing 13x, 14x

Blind housing 13x, 14x

Blind housing for 22.2x45mm and 25x50mm cutout.

Blind housing, clamping bracket, seals, adapter front frame.
G.003.836
Data sheet
Enclosure blind
DE EN FR

Sealing cover K1

Sealing cover K1

Flexible sealing cap for front frame F1B and adapter front frame N003001 made of soft PVC with painted sheet steel frame and mounting screws. IP65 protection according to DIN 40050 when installed. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.

Sealing cap (PVC) with sheet steel frame, 2 mounting screws M4x15.
Grau G.008.300
Schwarz G.008.301
Data sheet
Sealing cover accessories
DE EN FR

Enclosure, 24x48

Enclosure, 24x48

For the installation of all counters, timers, process devices with DIN dimensions 24x48mm or 50x25mm. Cutout 25x50mm. For snap-on mounting on 35mm DIN top hat rail.

Meter holder (chrome-plated sheet steel), DIN hat-rail adapter (fiber-reinforced polyamide).
G.300.004
Data sheet
Enclosure
DE EN FR

Bezel adapter

Bezel adapter

Adapter front frame 50x60mm for cutout F1B 54x29mm to 45x22.2mm for screw fastening with seal. Available in black.
N.003.001
Data sheet
Adapter front bezel (2)
DE EN FR

Transparent cover, lockable

Transparent cover, lockable

Screw-on transparent cover for front frame F1B and adapter front frame N003001, 1 DV, lockable for dimension F1. With seal over M4 mounting screws with own frame. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.

Transparent cover, seal, 2 mounting screws.
N.003.002
Data sheet
Transparent cover 2
DE EN FR

Sealing gasket N.511034

Sealing gasket N.511034

Outer dimension: 49 x 25 [1.929 x 0.984"]
Inner dimension: 45 x 22 [1.772 x 0.866"]
N.511034
Data sheet
Gasket asccessories
DE EN FR

Bezel adapter 37.1

Bezel adapter 37.1

Adapter front frame 37.1 for front panel cutout 50x25mm to 45x22.2mm with screw fastening. Available in black, gray and anthracite.
Schwarz T.008.161
Anthrazit T.008.181
Data sheet
Adapter front bezel
DE EN FR

Slip on bezel 37.2

Slip on bezel 37.2

Adapter front frame 37.2 for front panel cutout 50x25mm to 45x22.2mm. Available in black, gray and anthracite.
Grau T.008.164
Schwarz T.008.165
Anthrazit T.008.180
Data sheet
Adapter front bezel
DE EN FR

Bezel adapter

Bezel adapter

Adapter front frame 48x48mm to 48x24mm for cutout 45x45mm to cutout 45x22.2mm. Available in black.
T.008.883
Data sheet
Adapter front bezel (2)
DE EN FR
