Inclinometer
IS60
|
|
Product is discontinued
This product is no longer available. We would be pleased to support you in the selection of a comparable product.

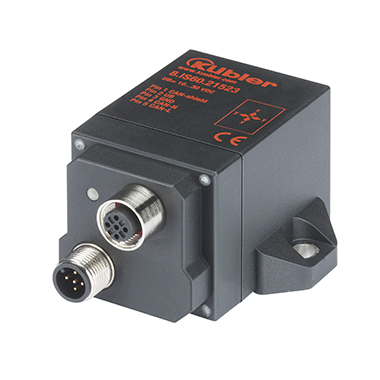

2-dimensional inclinometer. Unmistakable accuracy – even in harsh environments.
The IS60 inclinometer is used for the acquisition of a tilt angle in the measuring range ±85°. Due to its high robustness and protection up to IP69k, as well as its wide temperature range from -40°C to +80°C, it is excellent for, among other uses, outdoor use in mobile automation.| Mechanical | |
|---|---|
| Dimension | 68 mm x 42,5 mm x 42,5 mm |
| Connection types |
M12 connector |
| Working temperature | -40 °C ... +80 °C |
| Electrical | |
|---|---|
| Interfaces |
CANopen |
| Power supply |
10...30 V DC |
Robust and reliable
- IP68 / IP69k protection.
- Robust plastic housing.
- High shock resistance.
- High resolution and accuracy.
- Parameterizable vibration suppression.
- High sampling rate and bandwidth.
