Sendix H100
Sendix H100

Encoders Incremental

Sendix H100

  • Particularly resistant
  • Extremely robust bearing structure
  • Simple installation
  • Dimension Ø 115 mm
  • 5.000 ppr incremental
  • Max 11 mm shaft, with feather key
TTL / RS422

Sendix Heavy Duty H100

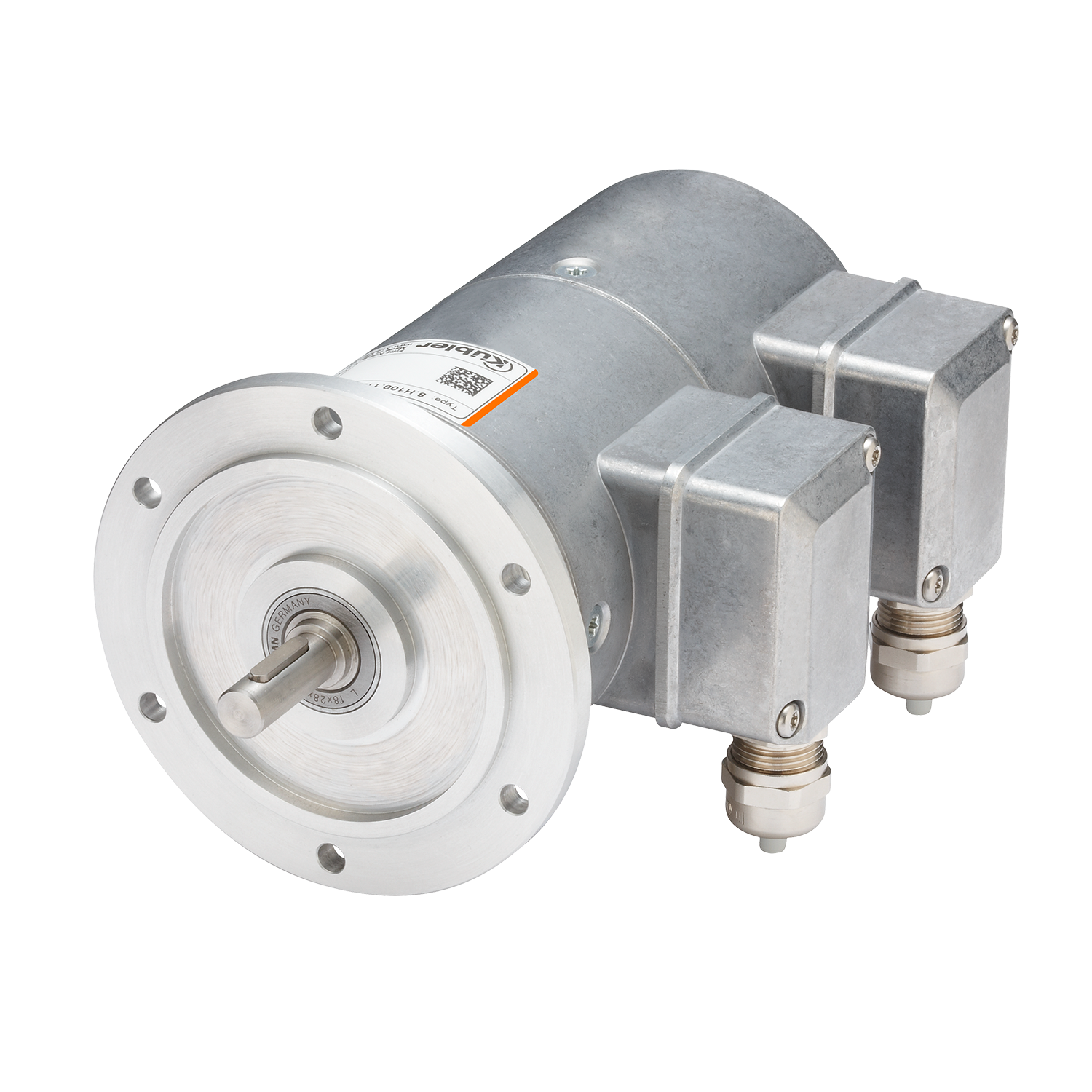

The Sendix H100 is an extremely robust incremental encoder which is available in 3 versions - as a encoder with and without speed switch and as a twin encoder. The special HD-Safety-LockTM design makes it ideal for applications in heavy industry such as steel plants and cranes. Resistant materials, wide temperature ranges and high protection ensure insensitivity to the harshest environmental conditions. The innovative connection technology enables simple and quick installation.

Dimension Ø 115 mm
Shaft type 11 mm shaft, with feather key
Flange type Euro flange

Ø 115.00 mm
Working temperature -40 °C ... +100 °C
Protection level IP66
Connection types Terminal box
Max. rotational speed 6.000 min-1
Weight 1800 g
Scanning optical
Resolution max. 5.000 ppr incremental
Power supply 5...30 V DC
10...30 V DC
Interfaces Gegentakt
TTL / RS422
on request
  • EX protection zone 2/22
  • Further impulse counters/resolutions
Suitable for your heavy duty application
  • HD-Safety-LockTM bearing design for extremely high bearing load capacity up to 300 N axial and 400 N radial.
  • With a temperature range of -40°C to +100°C, IP66 protection and seawater-resistant material, the encoder is resistant to harsh environmental conditions.

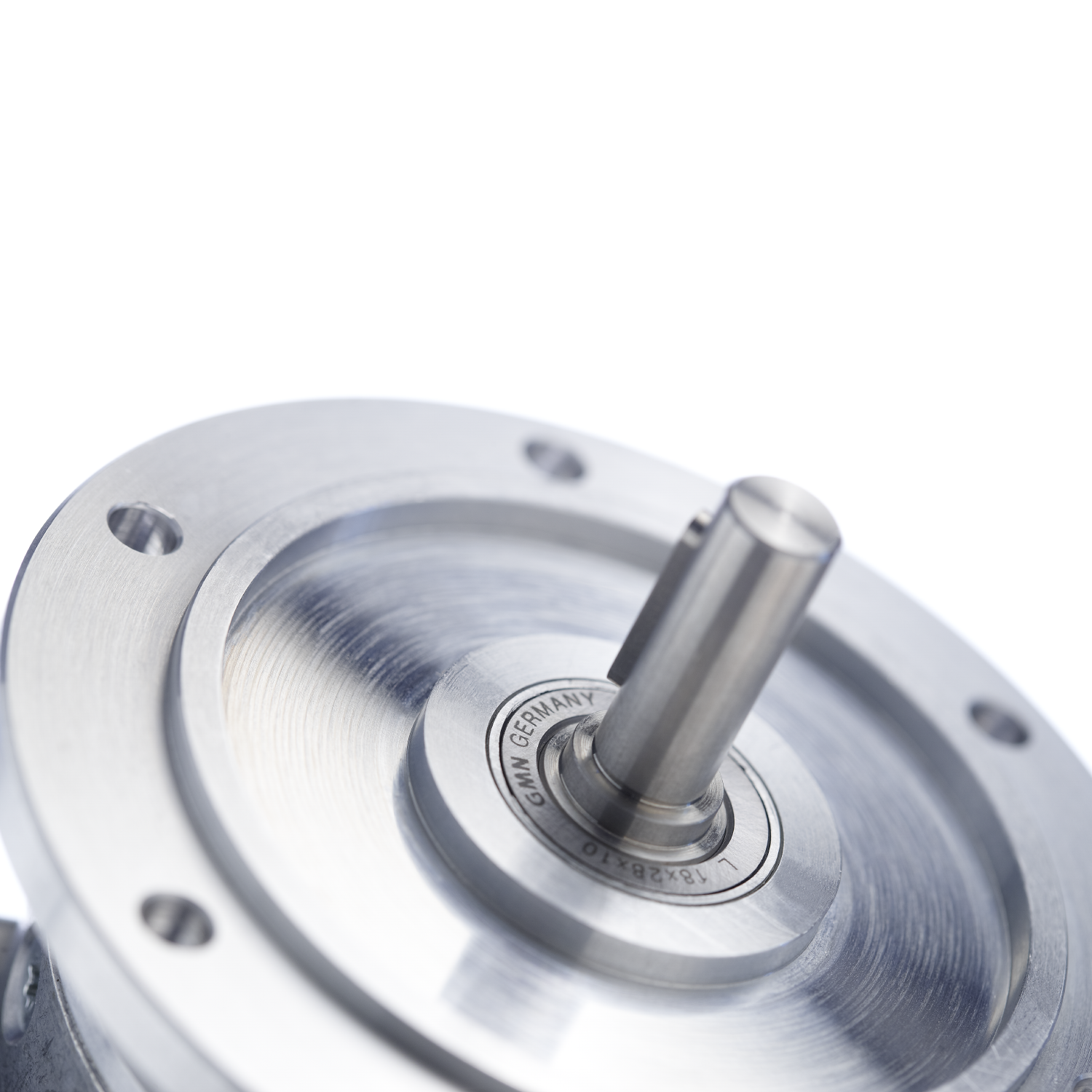

  • Keyway in the shaft guarantees a tight fit to the application.
  • Protection against overspeed by mechanical speed switch.
Quick and easy installation

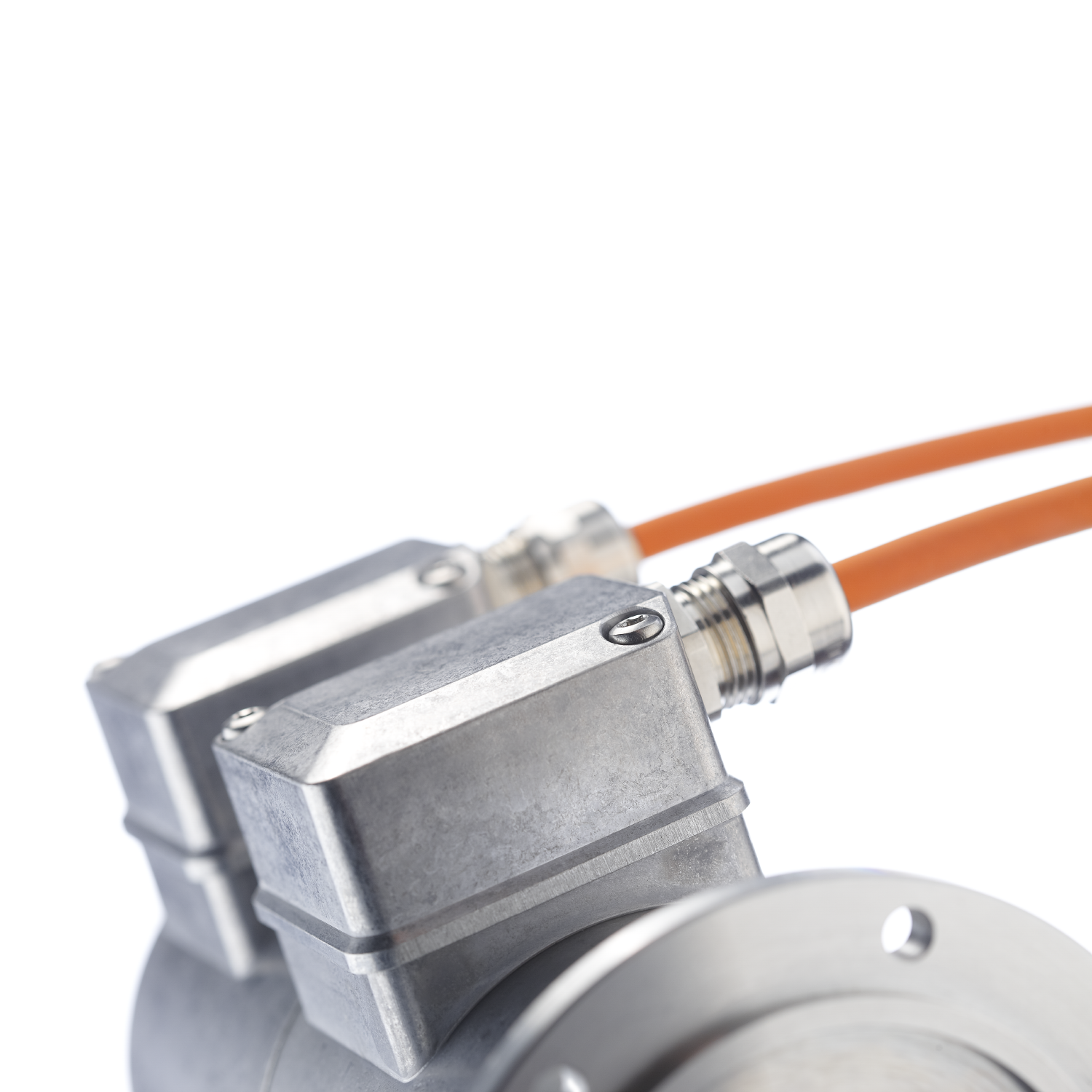

  • Innovative, pluggable spring terminal strips in the terminal box greatly simplify cable connection and offer maximum safety.

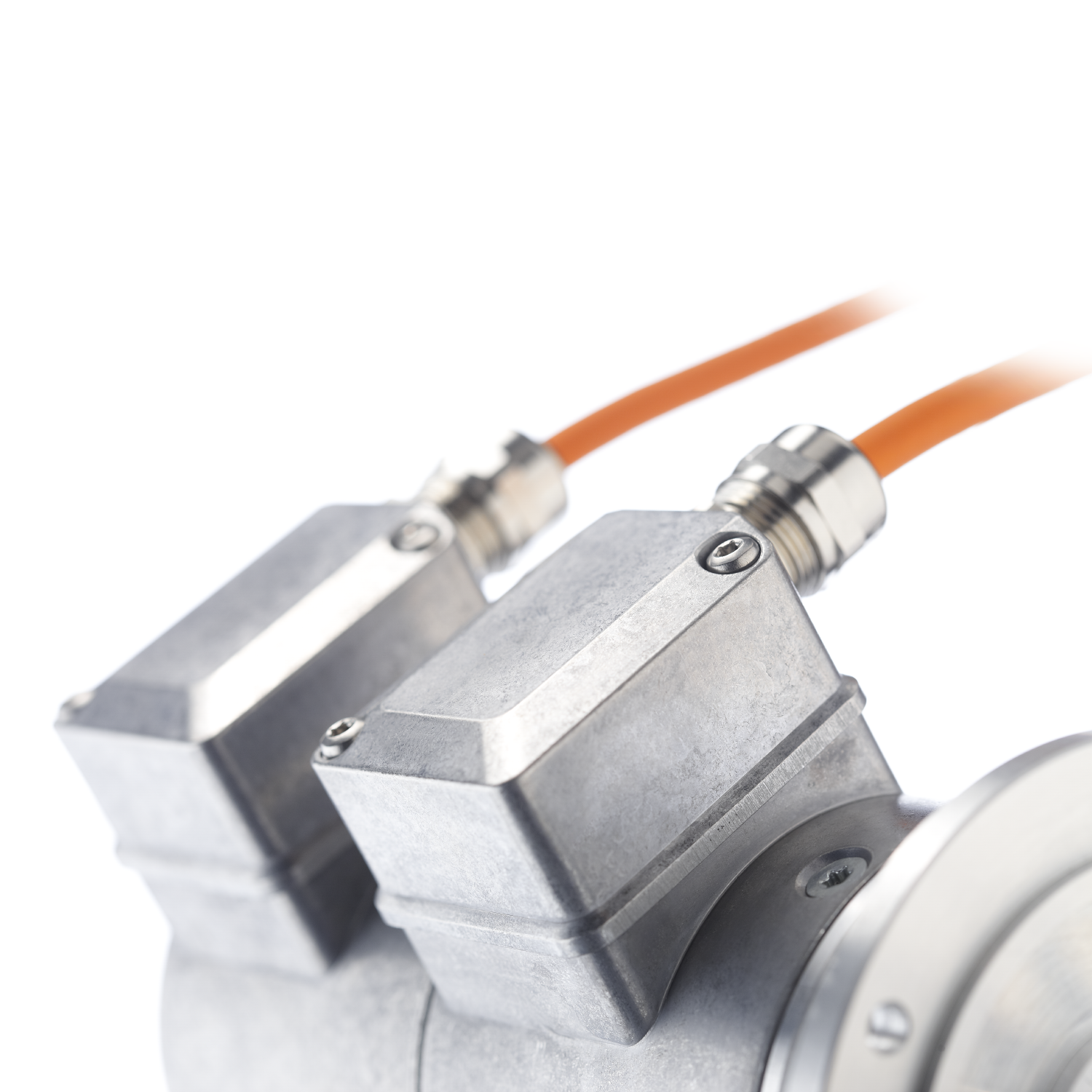

  • Variable connection options due to the 180° rotatable connection hood.
  • A variety of resolutions and switching speeds are available as standard.
Data sheet

Sendix H100

PDF ∼ 880,0 KB | 03.2023
Operation Manual

Sendix H100

Multilingual: German, English
PDF ∼ 2,0 MB | 03.2023

Safety characteristics

Sendix H100 MTTFd

Multilingual: German, English
PDF ∼ 184,0 KB | 03.2023

Declaration of conformity

Sendix H100 CE

Multilingual: German, English, French
PDF ∼ 381,4 KB | 03.2023

Electronic CAD / ePlan

Sendix H100

ZIP ∼ 2,4 MB | 03.2023

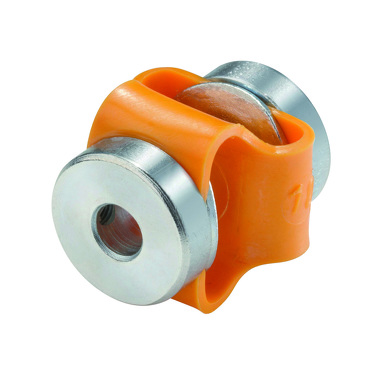

Double loop coupling

Double loop coupling

The safe, uncomplicated and economical solution when angular, radial and/or axially offset drive shafts are to be connected non-positively.

Variants - for shaft diameter d1/d2 in mm
06/06 - 10/10 - 11/12 with keyway
Bohrungsdurchmesser beidseitig 10mm 8.0000.1K01.1010
Bohrungsdurchmesser 11mm und 12mm 8.0000.1L01.1112
Bohrungsdurchmesser beidseitig 6mm 8.0000.1x01.0606
Data sheet
Bellows and spring washer couplings

Cables and connectors

Cable 6 x 2 x 0,14 mm<sup>2</sup>  , for the Ex-area

Cable 6 x 2 x 0,14 mm2 , for the Ex-area

Unassembled by the meter

PUR Ø 7,80 mm ± 0,20 mm
6 x 2 x 0,14 mm2
Data sheet
Cable, 12-core, PUR
