Process controllers for standard signals electronic

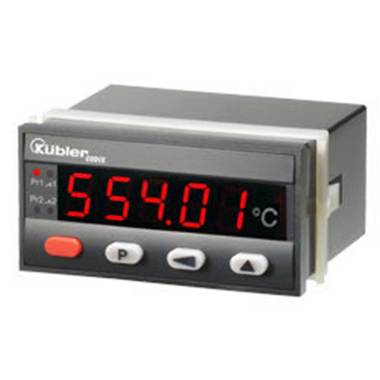

554
|
Product is discontinued
This product is no longer available. We would be pleased to support you in the selection of a comparable product.
Display for temperature and mV sensors with 2 limit values
| Mechanical | |
|---|---|
| Model | electronic |
| Dimension 1 |
96 x 48 mm | 92 x 45 mm |
(1) Front panel size | Panel cut-out
| Electrical | |
|---|---|
| Power supply |
90...260 V AC 10...30 V DC |
Your benefits
- Programmable input characteristic curve with up to 24 support points for 0 to 400/4000 Ω, 0 to 100 mV and -100 to +100 mV
- Min/max. acquisition
- Power supply output for transmitter/ Sensor
- SET key for resetting the limit values
- Input for display hold or reset input for limit values
- Large buttons allow comfortable operation, even with gloves on
- Inputs Thermocouples Millivolt, resistance thermometer with 2, 3 or 4 wire measurement
- Outputs 2 limits with programmable hysteresis and programmable signal behavior, relay with change-over contact or optocoupler
- Key input for keyboard locking
- optional serial interface
