Encoders Absolute singleturn
Sendix M5858A
|
|
Magnetic singleturn encoder with CANopen interface.
The Sendix M5858A is a magnetic singleturn encoder in compact design. High robustness and high resolution make this encoder the ideal device for use in demanding applications.Mechanical | |
---|---|
Dimension | Ø 58 mm |
Shaft type |
6 mm shaft, with flat surface 10 mm shaft, with flat surface |
Flange type |

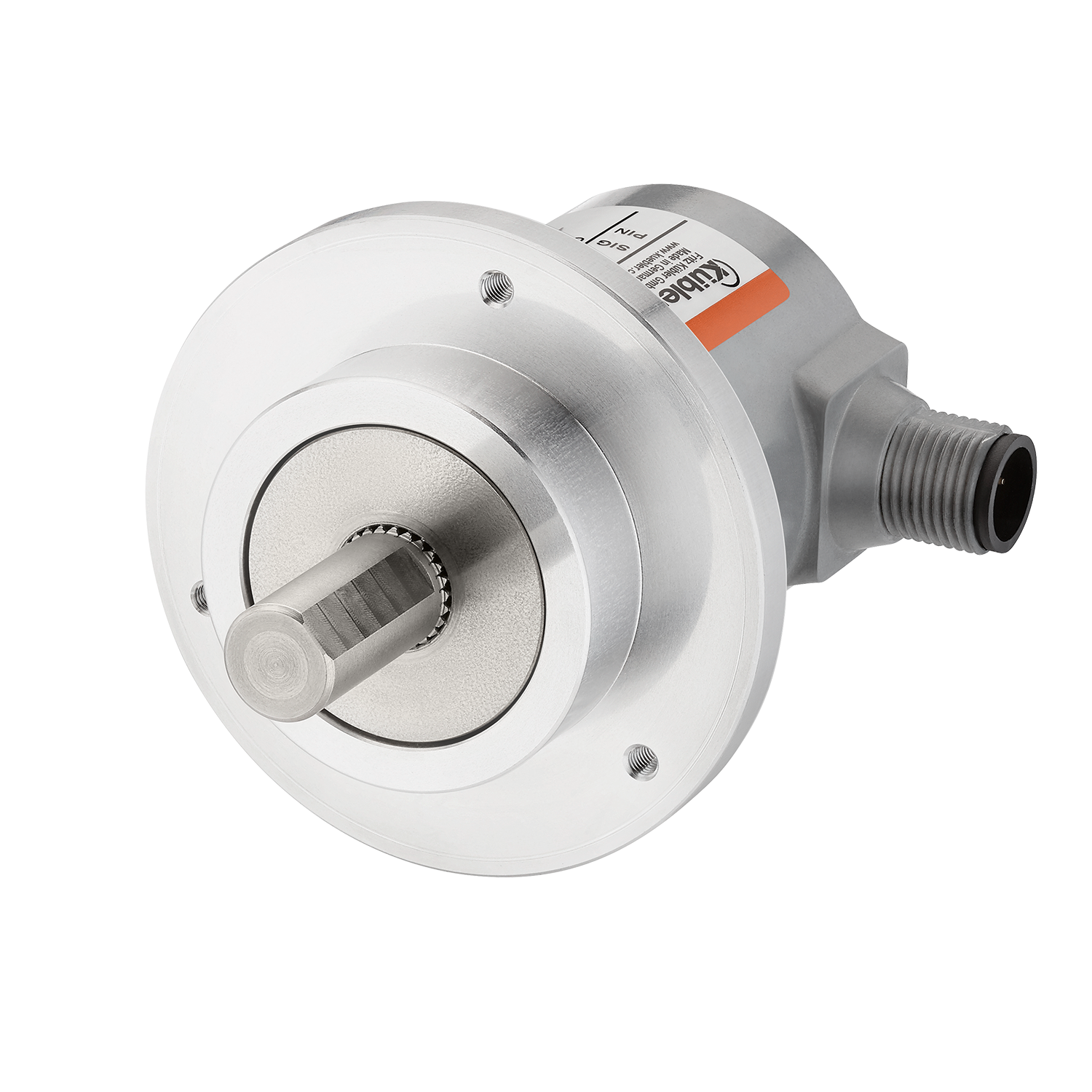

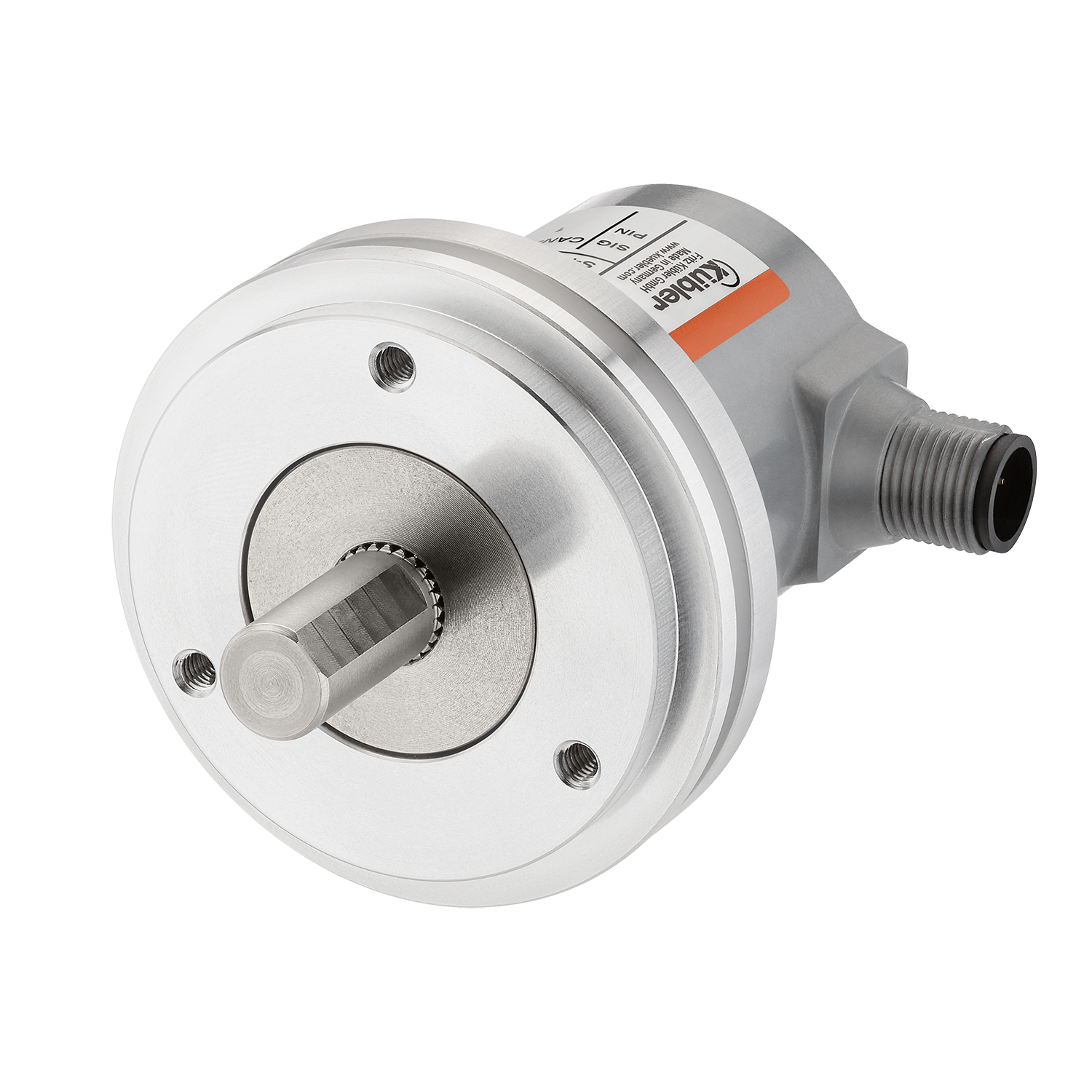

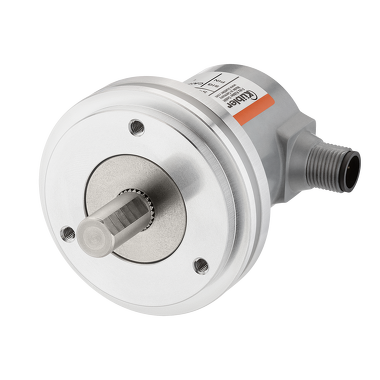

Synchro flange / Servo flange Clamping flange Ø 58.00 mm |
Working temperature | -40 °C ... +85 °C |
Protection level |
IP65 |
Connection types |

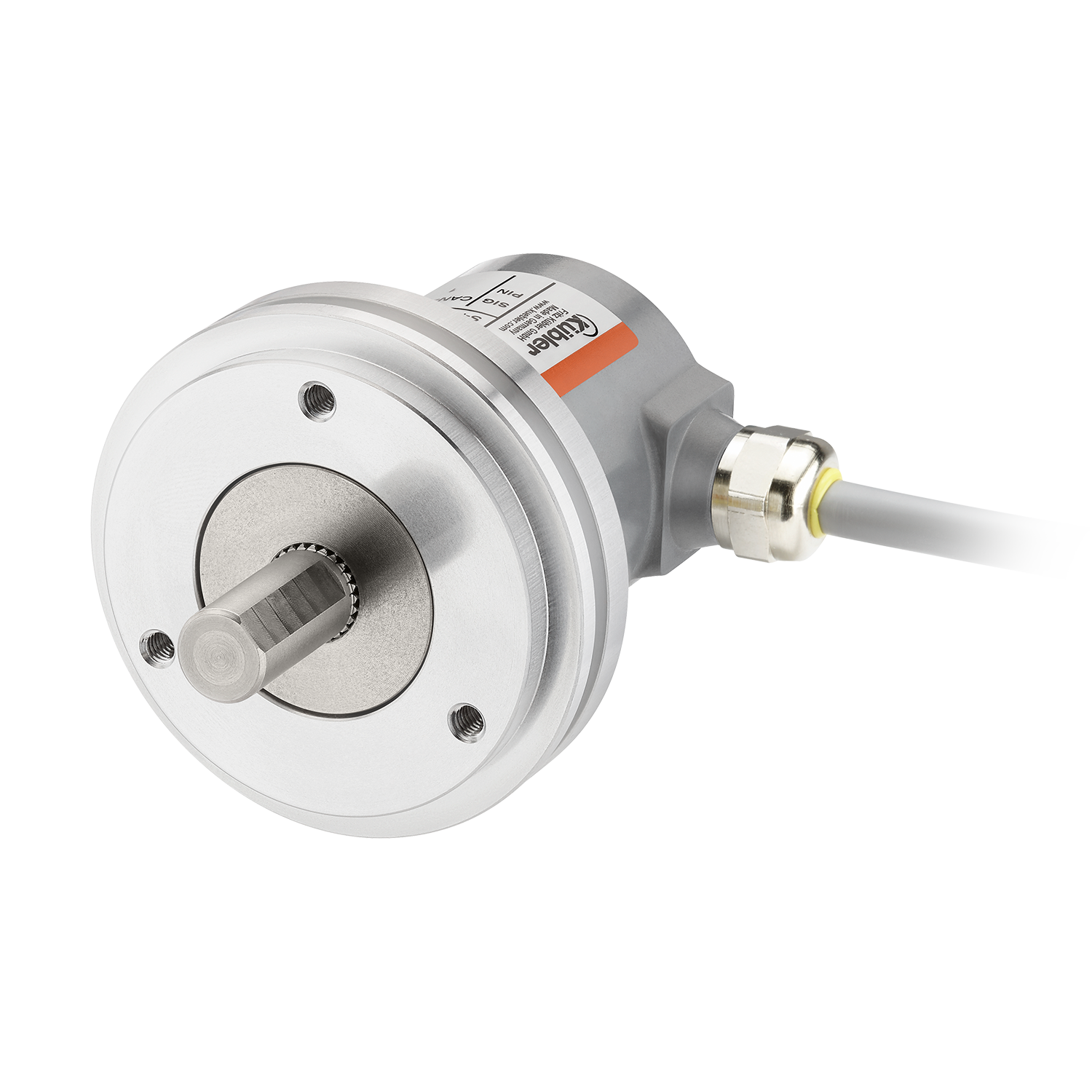

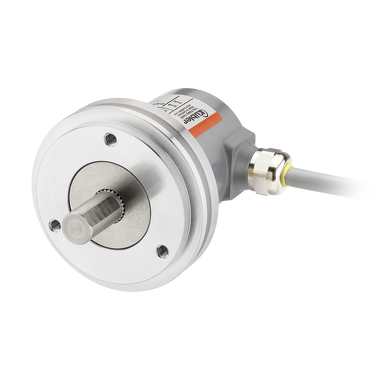

Radial cable M12 connector radial |
Max. rotational speed |
4.000 min-1 |
Weight | 280 g |
Electrical | |
---|---|
Scanning | magnetic |
Resolution max. |
14 bits singleturn |
Power supply |
10...30 V DC |
Interfaces |
CANopen |
- Sturdy bearing construction in Safety-Lockplus™ design for particularly high resistance.
- Extra large bearings.
- Mechanically protected shaft seal.
- Wide temperature range -40 °C ... +85 °C.
- LSS services for configuration of the node address and baud rate.
- Variable PDO mapping in the memory.
- Configuration management (bootloader).
Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
8.0000.1102.XXXX |
Cables and connectors
M12 Connector with cable ,
Preassembled cable set
4 x 0,34 mm2
M12 Connector with cable ,
Preassembled cable set
5 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
3 x 2 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
3 x 2 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
↓
Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm3 x 2 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
↓
Male connector 5-pin PVC Ø 4,7 mm ± 0,2 mm3 x 2 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
↓
Male connector 5-pin Ø 5,6 mm ± 0,2 mm5 x 0,34 mm2
M12 Connector ,
Field-wireable connector
M12 Connector ,
Field-wireable connector
M12 Connector , T-Connector
Field-wireable connector
M12 Connector , T-Connector
Field-wireable connector
M12 Connector ,
Field-wireable connector
M12 Connector , for the Ex-area
Field-wireable connector
M12 Connector , Stainless steel V4A
Field-wireable connector
