Encoders Absolute multiturn

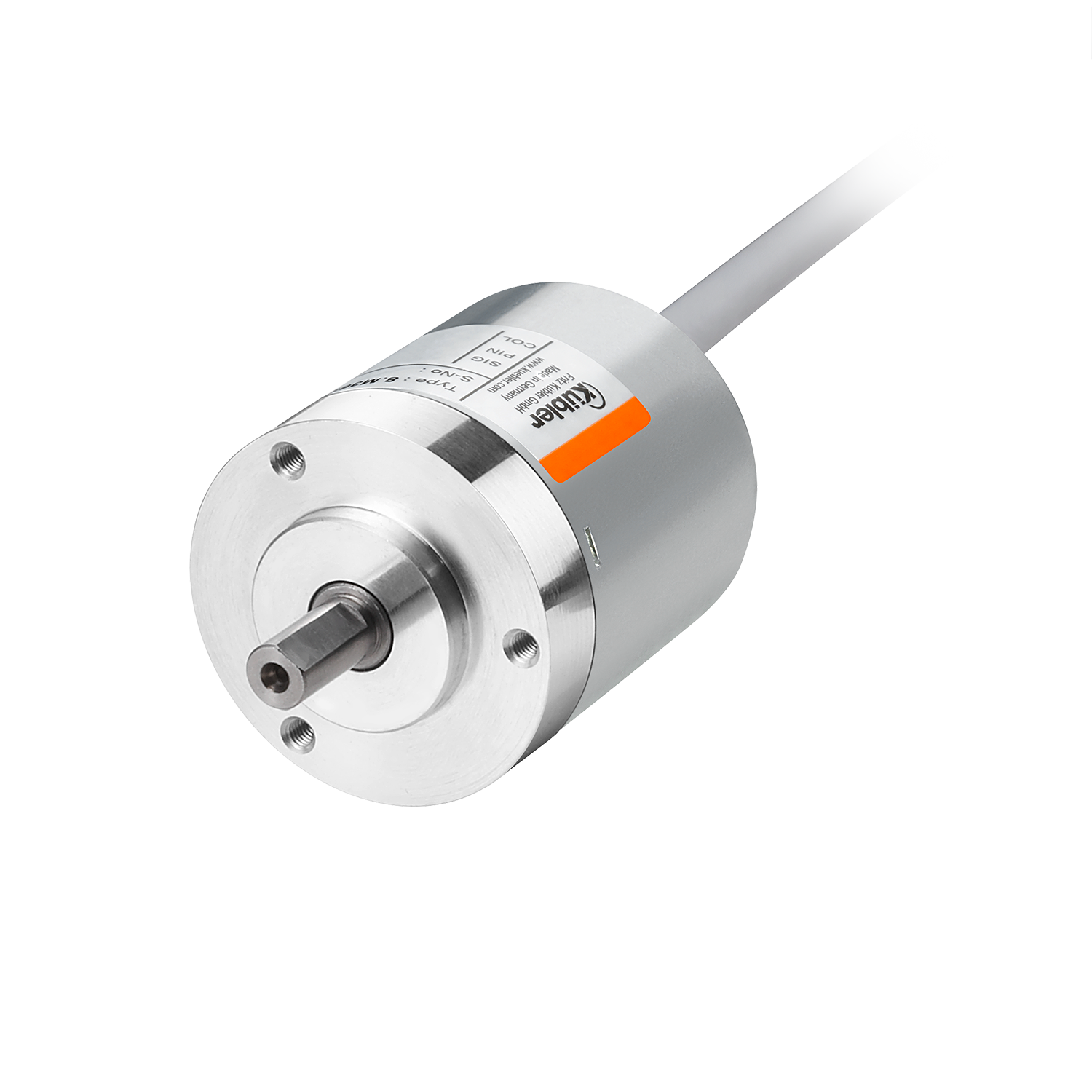

Sendix M3663
|
|
Energy Harvesting Technology: Electronic multiturn encoders.
The absolute encoders Multiturn Sendix M3663 / M3683 with SSI interface and magnetic sensor technology are based on Energy Harvesting Technology and are equipped without gears and without battery. This makes them particularly robust, durable and cost-efficient. With their high IP67 protection, these encoders provide reliable operation in the harshest environments. Their compact design of only 36 mm allows easy installation in confined spaces.
| Mechanical | |
|---|---|
| Dimension | Ø 36 mm |
| Shaft type |
6 mm shaft, with flat surface 8 mm shaft, with flat surface 10 mm shaft, with flat surface 1/4 " shaft, with flat surface |
| Flange type |
Synchro flange / Servo flange Clamping flange Ø 36.00 mm |
| Working temperature | -40 °C ... +85 °C |
| Protection level |
IP65 IP67 |
| Connection types |
Axial cable Radial cable M12 connector axial M12 connector radial |
| Max. rotational speed |
6.000 min-1 |
| Weight | 210 g |
| Electrical | |
|---|---|
| Scanning | magnetic |
| Resolution max. |
14 bits singleturn 24 bits multiturn |
| Power supply |
10...30 V DC |
| Interfaces |
SSI, binär SSI, gray |
- Robust bearing construction in safety-Lockplus™ design for particularly high resistance.
- Extra large bearings.
- Mechanically protected shaft seal.
- High IP67 and IP69k protection in one device.
- Wide temperature range from -40°C to +85°C.
- Energy Harvesting Technology without gears and without battery.
- Angular measurement deviation ±0,5°.
- Repeat accuracy ±0.2°.
- Short control cycles, clock frequency at SSI up to 2 MHz.
- Resolution max. 38 bit (14 bit ST + 24 bit MT).
Accessories
Bellows coupling
Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.Bellows coupling (stainless steel).
| 8.0000.1102.XXXX |
Fastening eccentrics
For shaft encoders with synchro flange ø 36 mmScope of delivery
- 3 eccentric
- 3 screws
| 8.0010.4200.0000 |
Cables and connectors
M12 Connector with cable ,
Preassembled cable set
8 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
8 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
8 x 0,25 mm2
M12 Connector with cable , 05.00.6051.8284.XXXM
Preassembled cable set
↓
Male connector 8-pin PUR Ø 6,3 mm ± 0,2 mm8 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
8 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
8 x 0,25 mm2
M12 Connector with cable ,
Preassembled cable set
4 x 2 x 0,25 mm2
M12 Connector ,
Field-wireable connector
M12 Connector with cable ,
Preassembled cable set
8 x 0,205 mm2
M12 Connector , for the Ex-area
Field-wireable connector
M12 Connector , Stainless steel V4A
Field-wireable connector
