Encoders Absolute multiturn

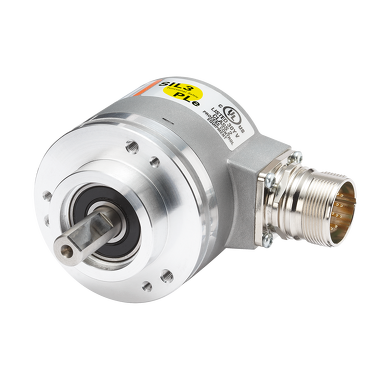

Sendix 5863FS3

For safe drive technology
Certified solution
Reliable

Dimension Ø 58 mm
2.048 ppr incremental
17 bits singleturn
12 bits multiturn
Max 10 mm shaft, with flat surface
Max 10 mm shaft, with feather key

Video

Safe position acquisition up to SIL3/PLe.

The absolute multiturn encoders 5863FS3 / 5883FS3 are suitable for use in safety-related applications up to SIL3 according to EN 61800-5-2 or PLe according to EN ISO 13849-1. The specially interlocked bearings in the Safety Lock™ design, the high integration density of the OptoASIC-based components and the stable die-cast housing make them perfect for demanding outdoor applications up to IP67.

Mechanical
Dimension	Ø 58 mm
Shaft type	10 mm shaft, with flat surface 10 mm shaft, with feather key
Flange type	Clamping flange Ø 58.00 mm
Working temperature	-40 °C ... +90 °C
Protection level	IP65 IP67
Connection types	Axial cable Radial cable M23 connector axial M23 connector radial
Max. rotational speed	12.000 min^-1
Weight	450 g

Electrical
Scanning	optical
Resolution max.	2.048 ppr incremental 17 bits singleturn 12 bits multiturn
Power supply	5 V DC 10...30 V DC
Interfaces	SSI + 2048 ppr SinCos BiSS + 2048 ppr SinCos

Functional safety technology

Encoders with independent certificate from TÜV.
Suitable for applications up to SIL3 according to EN 61800-5-2.
Suitable for applications up to PLe according to EN ISO 13849-1.
SSI or BiSS interface with incremental SinCos tracks with 2048 ppr.
Certified mechanical mounting and electronics.

Flexible

Shaft and hollow shaft variants.
Cable and connector variants.
Different mounting variants available.

Accessories

Bellows couplings (FS)

Bellows couplings are used for the low backlash connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved.
These bellows couplings (FS) provide a safe connection between the application and Sendix SIL encoders.
The safety-oriented bellows coupling has, in addition to the metallic bellows, internal claws that ensure the driving of the encoder in case of breakage of the bellows connection.

Variants - for shaft diameter d1/d2 in mm
10/10 - 10/12

8.0000.15FS.XXXX

Screw retention Loctite 243 (5 ml)

Loctite 243 is a universally usable screw retention. Screws and nuts are secured against loosening due to vibrations and sealed in the same time.

8.0000.4G05.0000

EMC shield terminal

For EMC-compliant installation of the encoder cable.

Mounting on top hat rail

Shield diameter

8.0000.4G06.0312 (03-12 mm)

Weight approx. 7.4 g
Clamp (spring steel, galvanized)
Foot (spring steel)

8.0000.4G06.0312

Adapter flange, square, 4 mm

For shaft encoders with clamping flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 4 screws

58,0 mm x 4 mm	8.0010.2100.0000
63,5 mm x 3 mm	8.0010.2120.0000
70,0 mm x 10 mm	8.0010.2600.0000
80,0 mm x 4 mm	8.0010.2800.0000

Flange, Ø 115mm Euroflange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws

Drehgeber 580x/5000

8.0010.2160.0000

Flange, Ø 58mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws

8.0010.2180.0000

Flange, Ø 65mm

For shaft encoders with flange ø 50 ... 58 mm
With this flange adapter, Kübler encoders of size 58 mm can replace third-party encoders of size 65 mm.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws

8.0010.2230.0000

Flange, Ø 90mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange. Mechanically compatible with encoder type 9000.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws

8.0010.2270.0000

Angular flange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Angle flange (aluminium)
- 3 screws for fastening to the encoder.

Connection to the application (not included in delivery)
- 2 screws

8.0010.2300.0000
