Encoders Incremental

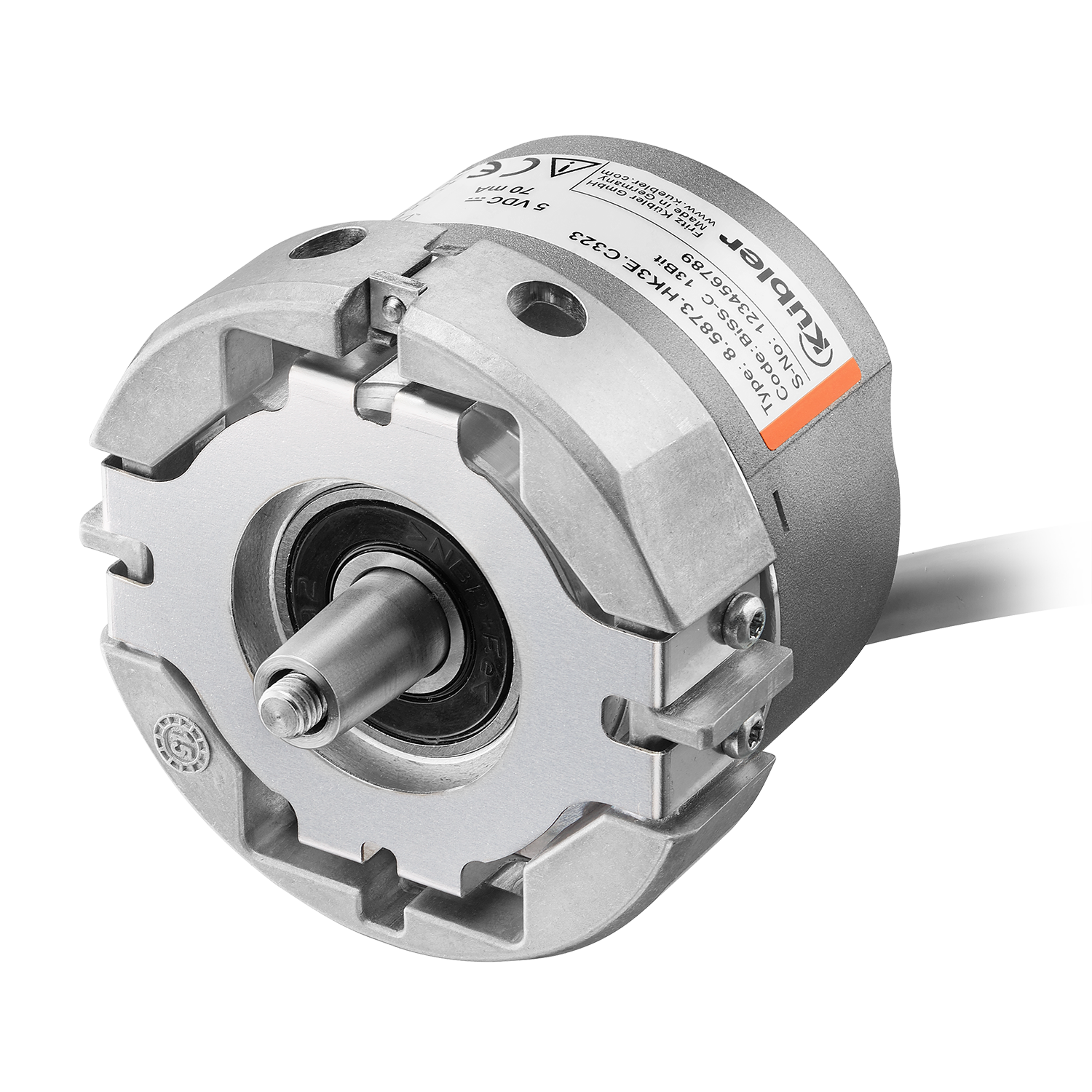

Sendix 5834 Motor-Line
|
|
Ideal for drive technology. Encoder with conical shaft.
The incremental encoder Sendix 5834 with SinCos interface is predestined for drive technology and can be selected with stator or spreader coupling.
Its very high signal quality makes it ideal for further interpolation.
Mechanical | |
---|---|
Dimension | Ø 58 mm |
Flange type |
Ø 58.00 mm Ø 65.00 mm Ø 72.00 mm |
Working temperature | -40 °C ... +90 °C |
Protection level |
IP40 IP67 |
Connection types |
Tangential cable Printed circuit board connector |
Max. rotational speed |
12.000 min-1 |
Weight | 450 g |
Electrical | |
---|---|
Scanning | optical |
Resolution max. |
2.048 ppr incremental |
Power supply |
5 V DC 10...30 V DC |
Interfaces |
SinCos |
- With incremental SinCos tracks.
- Very high signal quality.
- Encoder specially designed for mounting on direct drives in the elevator technology.
- Stator coupling or expanding coupling.
- Cable or PCB-connector.
- 1024 or 2048 ppr.
