Encoders Incremental

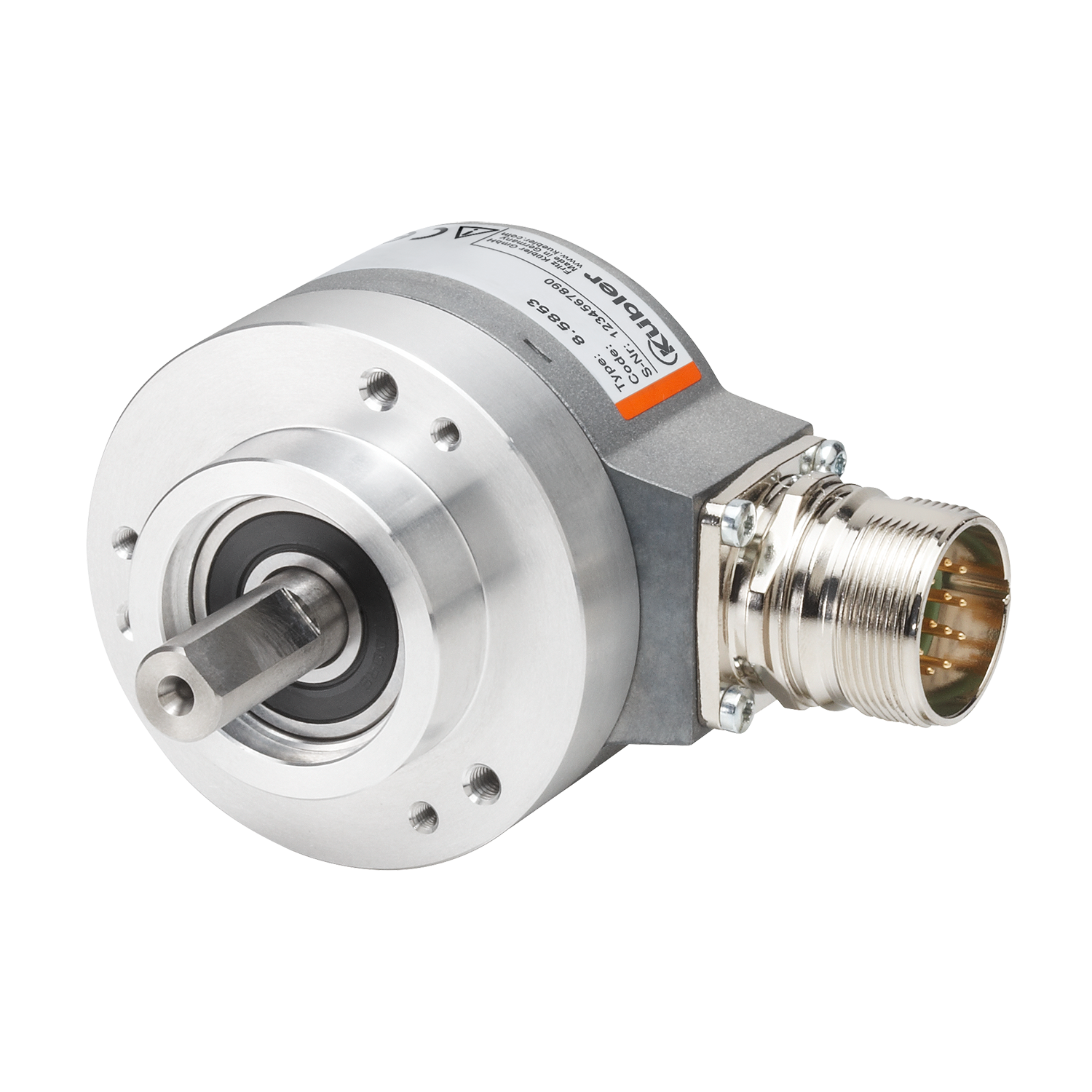

Sendix 5814

Very high signal quality
Suitable as motor feedback
Reliable

Dimension Ø 58 mm
2.048 ppr incremental
Max 10 mm shaft, with flat surface

Video

Highly interpolatable – ideal for drive technology.

The incremental encoders Sendix 5814 / 5834 with SinCos interface are preferably used in drive technology.
Due to their very high signal quality, they are ideally suited for further interpolation.

Mechanical
Dimension	Ø 58 mm
Shaft type	10 mm shaft, with flat surface
Flange type	Clamping flange Ø 58.00 mm
Working temperature	-40 °C ... +90 °C
Protection level	IP65
Connection types	Radial cable Tangential cable M12 connector radial
Max. rotational speed	12.000 min^-1
Weight	450 g

Electrical
Scanning	optical
Resolution max.	2.048 ppr incremental
Power supply	5 V DC 10...30 V DC
Interfaces	SinCos

Options
on request	EX protection zone 2/22 Salt spray test

Powerful

With incremental SinCos traces.
Very high signal quality.
Suitable for extreme applications.

Flexible

Shaft and hollow shaft variants.
Cable and connector variants.
Different mounting variants available.

Accessories

Bellows coupling

Bellows couplings are used for the cost-optimized connection of motor and encoder. In addition, a correction of angular errors between drive and encoder is achieved. Compensation for larger axial errors.

Bellows coupling (stainless steel).

8.0000.1202.XXXX

Assembly bell

For shaft encoders with flange ø 50 ... 58 mm
Fast encoder mounting. Electrical and thermal insulation through glass-fibre reinforced plastic and insulating spring washer coupling - complete delivery as a set.

Scope of delivery
- Mounting bell
- Spring washer coupling (8.0000.1401.XXXX)
- Mounting eccentric (8.0000.4B00.0000)
- Mounting accessories

8.0000.4500.XXYY

Adapter flange, square, 4 mm

For shaft encoders with clamping flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 4 screws

58,0 mm x 4 mm	8.0010.2100.0000
63,5 mm x 3 mm	8.0010.2120.0000
70,0 mm x 10 mm	8.0010.2600.0000
80,0 mm x 4 mm	8.0010.2800.0000

Flange, Ø 115mm Euroflange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws

Drehgeber 580x/5000

8.0010.2160.0000

Flange, Ø 115mm Euroflange

For shaft encoders with flange ø 70 mm

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to application (not included in delivery)
- 6 screws

Drehgeber 70xx

8.0010.2170.0000

Flange, Ø 58mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for mounting on the encoder

Connection to the application (not included in delivery)
- 3 screws

8.0010.2180.0000

Flange, Ø 90mm

For shaft encoders with flange ø 50 ... 58 mm
Adapter for converting a clamping flange into a synchro flange. Mechanically compatible with encoder type 9000.

Scope of delivery
- Flange adapter (aluminium)
- 3 screws for fastening to the encoder

Connection to the application (not included in delivery)
- 6 screws

8.0010.2270.0000

Angular flange

For shaft encoders with flange ø 50 ... 58 mm

Scope of delivery
- Angle flange (aluminium)
- 3 screws for fastening to the encoder.

Connection to the application (not included in delivery)
- 2 screws

8.0010.2300.0000

Fastening eccentrics

For shaft encoders with synchro flange ø 50 ... 70 mm

Scope of delivery
- 3 eccentric
- 3 screws

8.0010.4100.0000

Bearing box

For shaft encoder with clamping flange ø 58 mm and shaft 10 x 20 mm
When the encoder is driven by a toothed or chain wheel, V-belt or toothed belt, impeller, etc., the permissible axial or radial shaft loads are usually exceeded during operation. For these cases, the bearing box equipped with reinforced bearings is ideally suited.

Scope of delivery

Bearing box with lock and O-ring
Coupling for shaft 10 mm
Adapter flange 8.0010.2100.0000
Mounting accessories

8.0010.8200.0004

Robust bearing unit

For shaft encoders with clamping flange ø 50 ... 58 mm and shaft 10 mm
The separation of the bearing load and the sensor system provides the encoder with additional protection in harsh environments.

Scope of delivery
