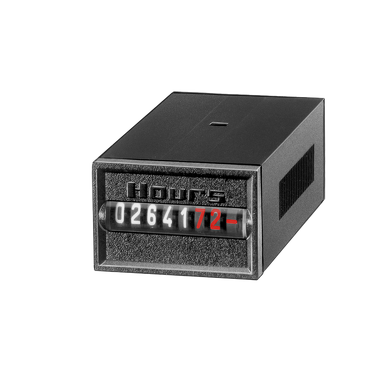

Hour meter electromechanical

HK17

High shock resistance
High protection, IP65
UL certification

Dimension
· 33 x 22 mm
· 36 x 24 mm | 33 x 22 mm
· 37 x 26 mm | 33,3 x 22 mm
· 50 x 26 mm | 33 x 22 mm
Power supply:
Display 8-digit number, mech. roller counter

Video
Notice

Hour meter with different front plate sizes.

The HK 17 hour meters have a very high shock resistance. As built-in counters with many front panel sizes, they can be used in various application areas. These non-resettable counters are extremely tamper-proof.

Mechanical
Model	electromechanical
Function	Hour meters / timers
Dimension ¹	33 x 22 mm 36 x 24 mm \| 33 x 22 mm 37 x 26 mm \| 33,3 x 22 mm 50 x 26 mm \| 33 x 22 mm
Protection level	IP65
Working temperature	-15 °C ... +50 °C
Weight	40 g

(1) Front panel size | Panel cut-out

Electrical
Power supply	20...30 V AC 42...48 V AC 187...264 V AC 360...440 V AC 10...30 V DC 36...80 V DC 100...130 V DC

Properties

7- or 8-digit hour meter
No zero position
High shock resistance
Small dimensions
Optically large digits
IP65 protection from the front
UL certification

Benefits

Many different front panel sizes and installation cutouts
Retains value in the event of power failure
Long service life

Applications
General time counting, maintenance intervals for medical devices (ventilation, oxygen, dialysis), small devices, UV lamps, display panels in vehicles
