Hour meter electromechanical
HB26
|
|
Hour meter with manual zeroing.

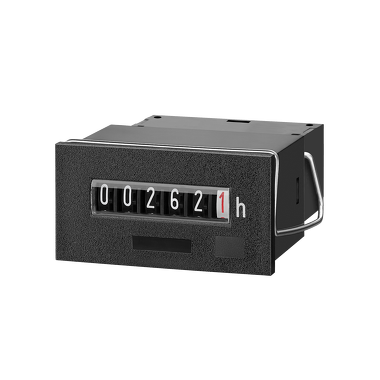

The HB 26 hour meter with mechanical reset records the time range up to max. 99999.9 h or 9999.99 h. As built-in counters, they can be used in various application areas.Mechanical | |
---|---|
Model | electromechanical |
Function |
Hour meters / timers |
Dimension 1 |
50 x 25 mm 53 x 28 mm | 50 x 25 mm 56 x 40 mm | 50 x 25 mm |
Protection level |
IP41 |
Working temperature | -15 °C ... +50 °C |
Weight | 45 g |
Reset |
electronic |
(1) Front panel size | Panel cut-out
Electrical | |
---|---|
Power supply |
20...30 V AC 42...48 V AC 187...264 V AC 360...440 V AC 10...30 V DC 36...80 V DC 100...130 V DC |
Properties
General time measurement, maintenance intervals for measuring devices (ventilation, oxygen, dialysis), small devices, UV lamps, display panels in vehicles
- 6-digit hour meter with reset
- High shock and impact resistance
- Large optical digits; 4.5 mm high
- Retains value in the event of power failure
- Long service life
- Pluggable versions
- Counter without front bezel can be plugged into front bezel F1B and F2B and combined in 50 x 25 mm grid with 945.2 socket
- Can be combined with preset counters BVa and HVa as well as with pulse counter B
- Expandable with various front caps to protect the meter against dust, dirt and moisture
- Lockable zero position
General time measurement, maintenance intervals for measuring devices (ventilation, oxygen, dialysis), small devices, UV lamps, display panels in vehicles
Accessories
Blind housing
Blind housing for 25x50mm cutout. Available in black and gray.Schwarz | T.005.753 |
Front bezel F1B
Front frame for cutout 29x55mm dimension F1. Available in black and beige. Pluggable from the front.Beige | G.007.501 |
Schwarz | G.007.502 |
Front bezel F2B
Plastic front frame F2B for 54x54mm cutout and 946 socket in dimension F2 for one Bva, HVa or 2 B, HB meter. Pluggable from the front.Beige | G.007.503 |
Schwarz | G.007.504 |
Sealing cover K1
Flexible sealing cap for front frame F1B and adapter front frame N003001 made of soft PVC with painted sheet steel frame and mounting screws. IP65 protection according to DIN 40050 when installed. Suitable for B15.31, B16.31, B16.30, B18.30, F1B15.01, F1B16.01, F1B16.00 and F1B18.00. With adapter frame N.003.001 for 130, 131, 132, 133, 134, 135, 136, 140, 141, 142, 143, 520, 521, 522, 523, 524, 52U, 52P, 52T.Sealing cap (PVC) with sheet steel frame, 2 mounting screws M4x15.
Grau | G.008.300 |
Schwarz | G.008.301 |
Sealing cover K2
Flexible sealing cap for dimension F2, IP65 protection. Suitable for BVa15.13, BVa15.31, BVa15.33 and HVa15.31 within F2B. 2 B counters or 2 HB counters and MVs16.03 in frame F2M and junction box 926.1. 716, 717 901, 907, 908, 923, 924 with adapter frame 45 (T.008.860).Grau | G.008.302 |
Schwarz | G.008.303 |
Socket box 945.2
Socket for B and HB meters. Pluggable from the front.G.008.434 |
Rail mount frames SR1, SR2, SR3
The SR 1, SR 2, and SR 3 mounting rail frames can be snapped onto TS 35x7.5 and TS 35x15 mounting rails according to DIN EN 50022 or TS 32 according to DIN EN 50035. Electromechanical and electronic totalizer, preset or hour meters can be plugged into the built-in sockets.SR1 | G.300.000 |
SR2 | G.300.001 |
SR3 | G.300.002 |
Sealing gasket N.511015
Outer dimension: 53 x 28 [2.087 x 1.103"]Inner dimension: 50 x 25 [1.969 x 0.984"]
N.511015 |
Sealing gasket N.511019
Outer dimension: 60 x 50 [2.363 x 1.969"]Inner dimension: 50 x 25 [1.969 x 0.984"]
N.511019 |
