Ants LEB01

Shaft copying systems

Ants LEB01

  • 100% slip-free
  • Extremely robust
  • Maximum compact
  • Simple mounting
  • Stainless steel code band
  • Measuring length 392 m
  • Speed 5 m/s
  • Resolution max. 1 mm
  • Accuracy ±1 mm
CANopen-Lift
SSI, grey

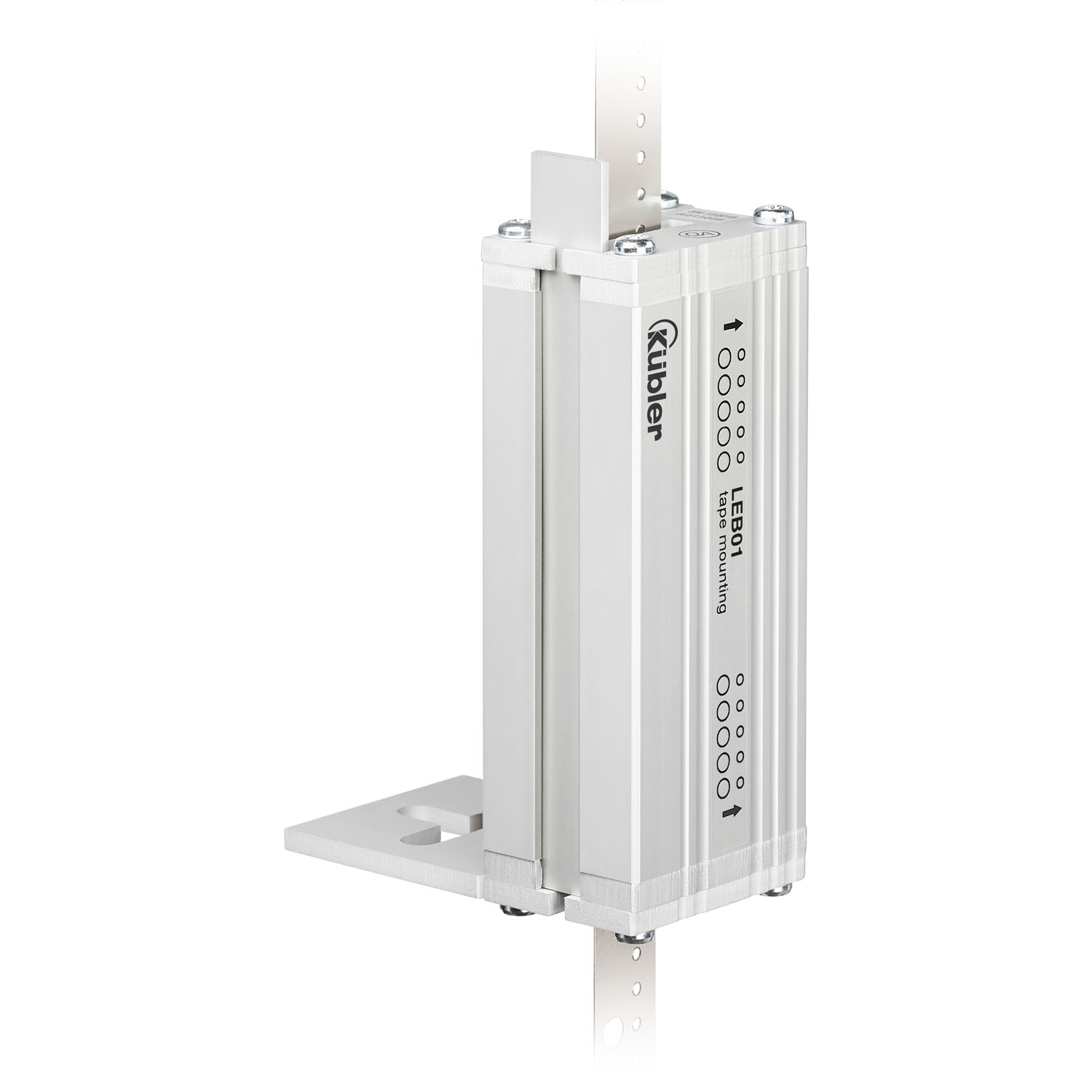

Shaft copy system – absolute positioning of the elevator car.

Ants LEB01 is an extremely robust, compact, contactless measuring system. With a resolution of 1 mm and a travel speed of 5 m/s, absolute position values of the car are determined slip-free. No additional components such as magnetic switches are necessary. Simple assembly especially reduces installation times and thus contributes to the reduction of the overall costs.

Mechanical
Measuring system Shaft copying systems
Measuring length 392 m
Speed 5 m/s
Dimension 135 mm x 45 mm x 33 mm
Connections up to 1 m cable axial
Working temperature -5 °C ... +70 °C
Protection level IP30
Weight 240 g
Electrical
Resolution max. 1 mm
Accuracy ±1 mm
Interfaces CANopen-Lift
SSI, grey
Supply voltage 10...30 V DC
Properties
  • Absolute position values
  • Measuring length up to 392 m
  • Extremely robust and compact
  • Stainless steel code band
  • Simple mounting
  • Contactless measuring principle

Benefits
  • Highest availability – no reference run on power failure
  • 100% slip-free – absolute position detection directly on the car
  • Suitable for tight installation spaces
  • Reduced installation effort
  • Elimination of additional components (e.g. magnetic vanes, reference sensors)
  • Long service life thanks to robust design
Data sheet

Ants LEB01

PDF ∼ 349,0 KB | 09.2018
DE
EN
FR
Installation manual

Tape measure packaging Ants Base, Ants Safe

Multilingual: German, English, French, Italian, Spanish, Chinese
PDF ∼ 1,1 MB | 04.2019

Manual

Ants LEB01

PDF ∼ 2,9 MB | 01.2019
DE
EN
Device file

LEx / EDS-File

ZIP ∼ 1,9 KB | 10.2017

Notice

Ablängung, Kennzeichnung und Nachverfolgung Codeband 392 m

Multilingual: German, English, French, Italian, Spanish, Chinese
PDF ∼ 1,5 MB | 06.2019

Brochures

Ants LEB / Ants LES Shaft copying system

PDF ∼ 169,3 KB | 11.2017
DE
EN
IT

Accessories

Cables and Connectors
